Delfield F2973CP Low Profile Undercounter & Worktop Refrigeration
Description

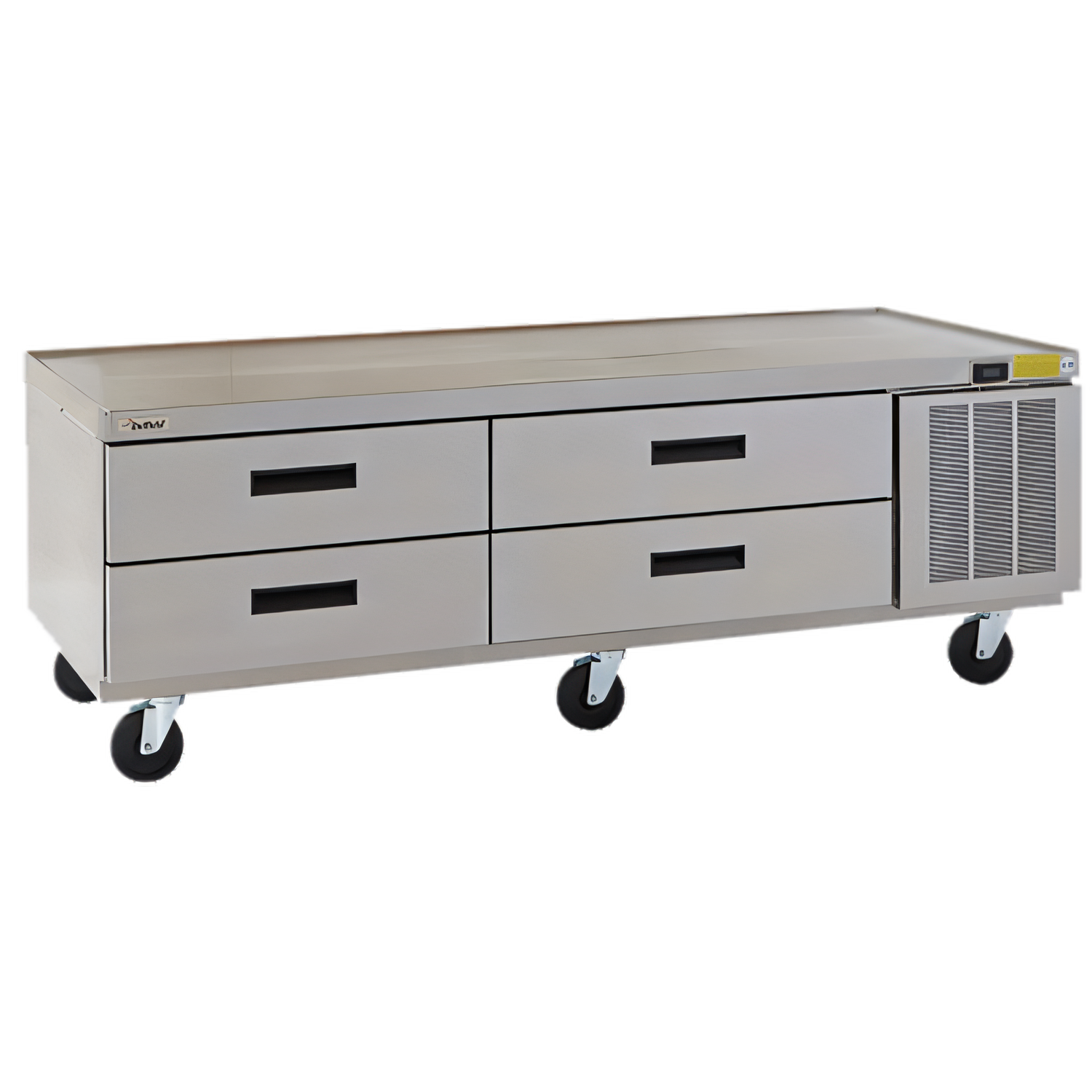

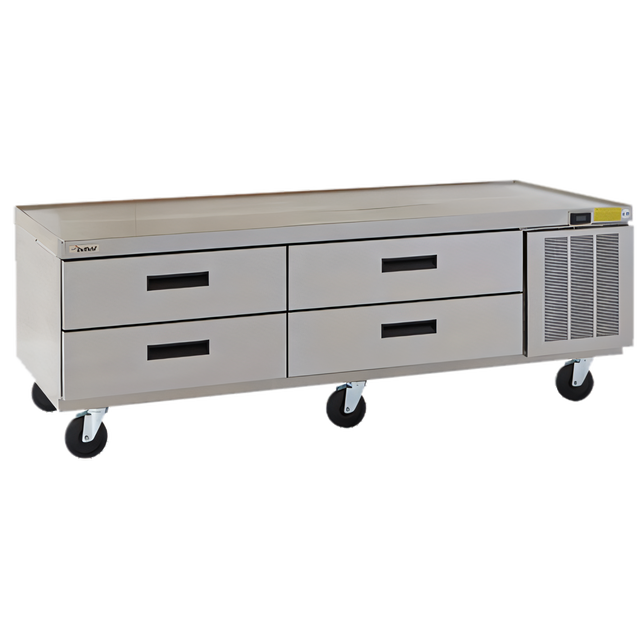

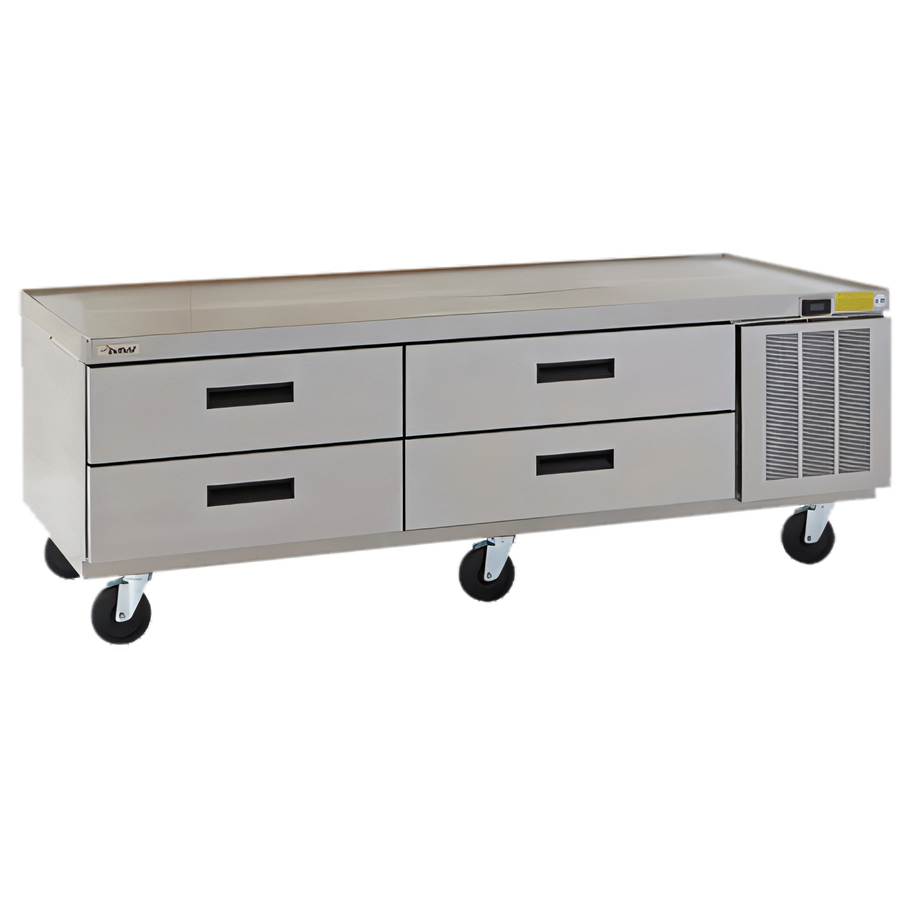

Delfield Low-Profile Refrigerated Equipment Stand – 73" • 4-Drawer • Self-Contained
Model F2973CP | 73-1/4" W × 31-47/50" D × 24" HBring cold storage to your cooking line without giving up an ergonomic work height. The Delfield F2973CP Low-Profile Equipment Stand supports griddles, charbroilers and other countertop equipment while holding chilled ingredients right where you need them—in four smooth-gliding, high-capacity drawers.
Key Performance Features
- Four full-extension refrigerated drawers accept standard 12" × 20" × 4" hotel pans (pans sold separately).
- 18-gauge stainless steel work top with full-perimeter marine edge prevents spills and run-off.
- Full Extension Plus drawer system with Delrin® rollers, stay-shut feature and a 10-year track warranty.

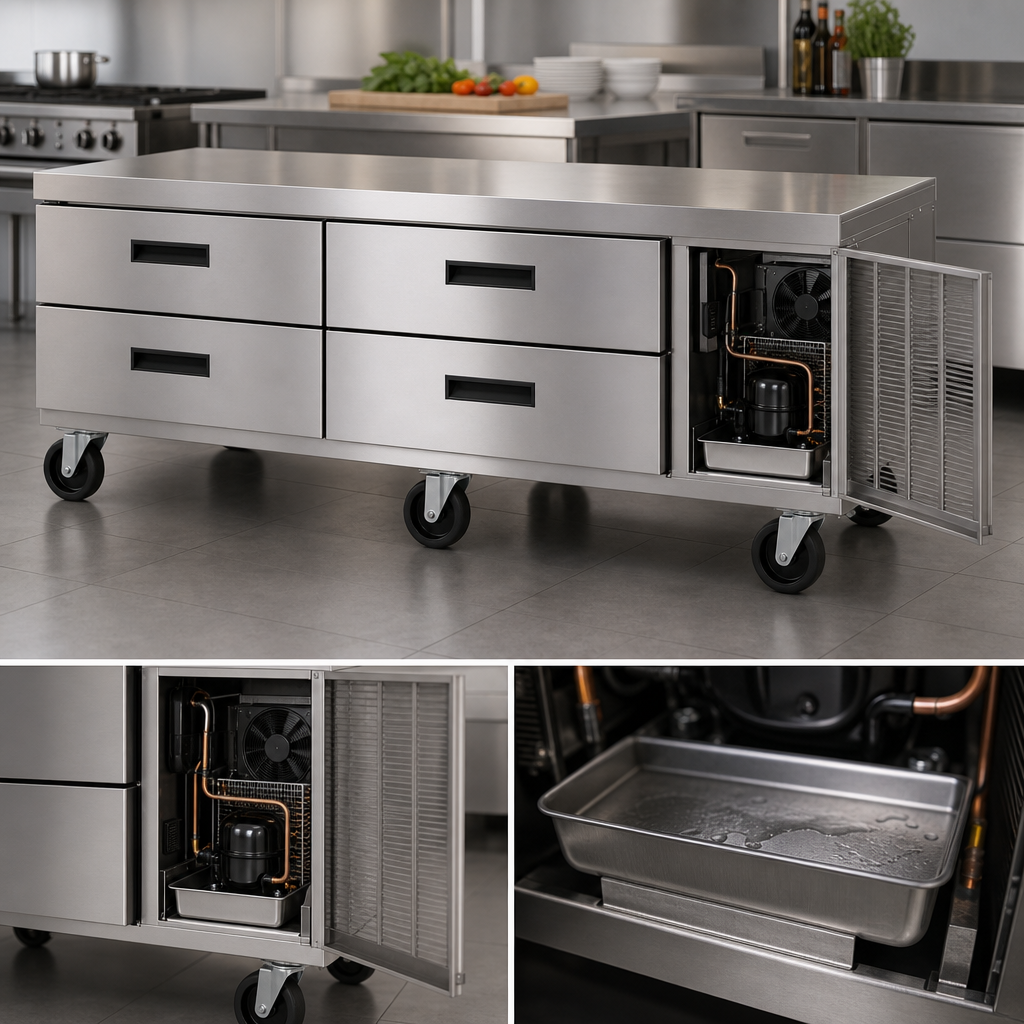

- Side-mounted, self-contained refrigeration with eco-friendly R290 refrigerant • ¼ HP compressor.
- Dual-fan mullion evaporator keeps the cabinet between 36 °F – 40 °F—even at 100 °F ambient.
- Electronic temperature control & LED thermometer protected by a stainless guard.
- 2" high-density, Kyoto-compliant polyurethane insulation for strength and efficiency.
- Heavy-duty 4" swivel casters plus wall-mount anti-tip bracket for safe mobility and cleaning access.
- Ships with 8' cord & NEMA 5-15P plug • cULus & NSF certified.
- 3-year parts & labor warranty + 2 additional years on the compressor.
At-a-Glance Specifications
| Exterior dimensions (W × D × H) | 73-1/4" × 31-47/50" × 24" |
|---|---|
| Work surface height | 25.5" |
| Sections / drawers | 2 sections / 4 refrigerated drawers |
| Pan capacity | (4) 12" × 20" × 4" hotel pans |
| Temperature range | 36 °F – 40 °F (2 °C – 4 °C) |
| Refrigeration system | Side-mounted, R290, hot-gas condensate evaporator |
| Compressor | ¼ HP |
| Electrical | 115 V / 60 Hz / 1-Ph • 4.8 A • NEMA 5-15P plug |
| Construction | Stainless steel top, fronts & sides; ABS interior drawer boxes |
| Certifications | cULus, NSF |
| Approx. ship weight | ~540 lb (245 kg) |
Built for Busy Kitchens
- Reinforced 14-gauge leg rails and 12-gauge cross-braces safely support heavy countertop equipment.
- Environmentally safe foam and R290 refrigerant help reduce energy use & global impact.
- ABS interior sides create a thermal break and resist day-to-day dings and scratches.
Hotel pans, adapter bars and other accessories are not included and may be ordered separately.
