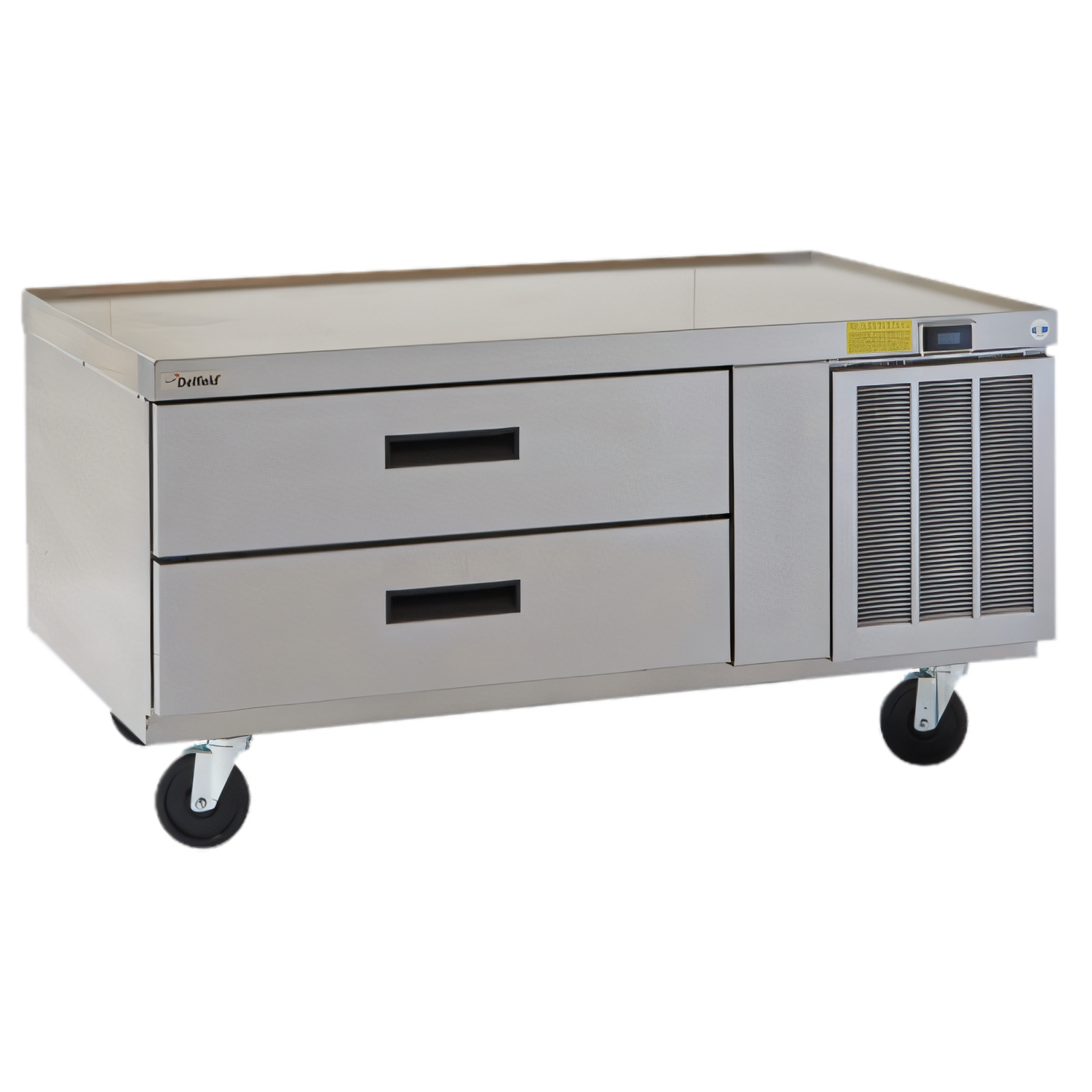

Delfield Low-Profile Refrigerated Equipment Stand – 56-1/4"
Model F2956CP | Single-Section • 2 Drawers • Self-ContainedGive your grill, griddle or charbroiler a rock-solid foundation and keep fresh ingredients within arm’s reach. The Delfield F2956CP combines heavy-duty construction with a high-performance R290 refrigeration system in a low-profile cabinet that fits perfectly beneath today’s countertop cooking equipment.
Key Benefits
- Full marine-edge stainless top contains spills and resists warping under heavy equipment.

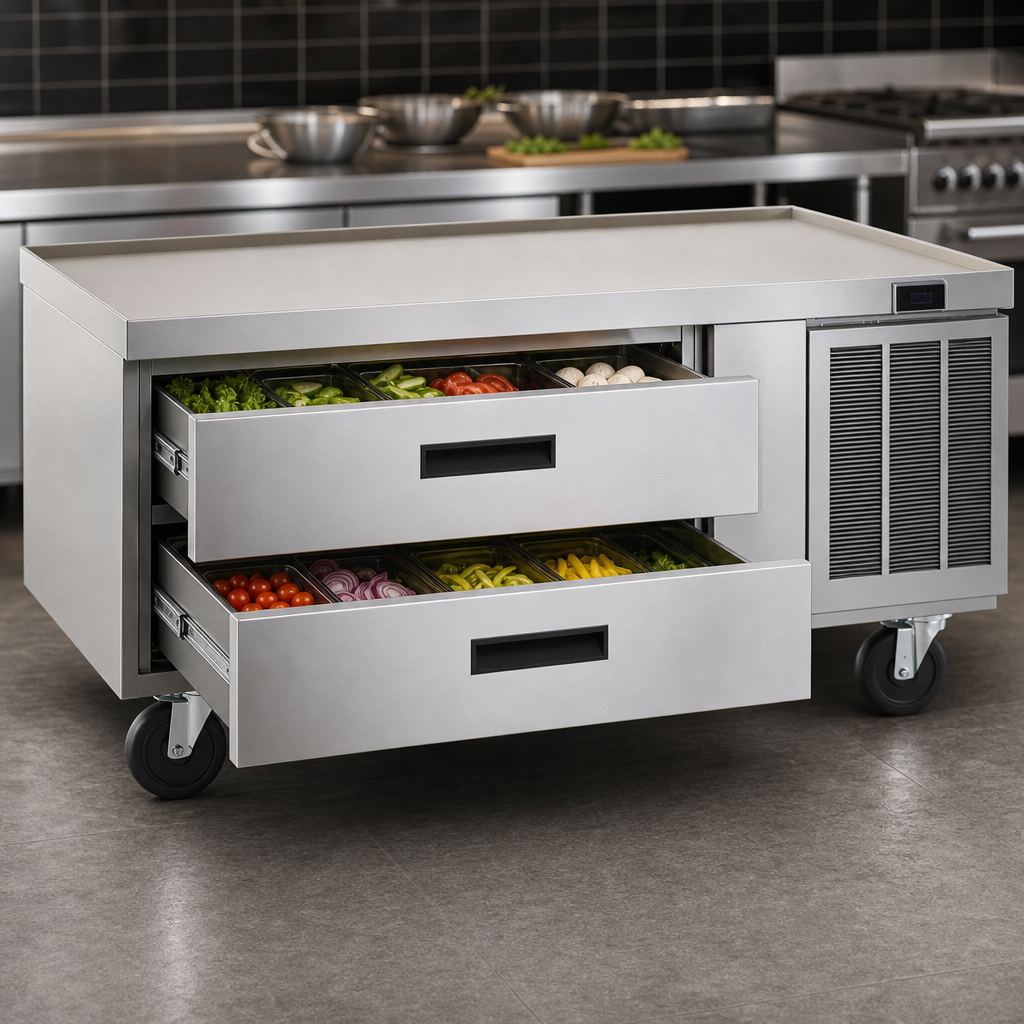

- Two Full-Extension Plus drawers (10-year track warranty) accept four 12" × 20" × 4" pans for fast pan-in/pan-out service (pans sold separately).
- Eco-friendly 1/5 hp side-mounted system uses R290 refrigerant and maintains 36–40 °F in 100 °F kitchens.
- Mullion style dual-fan evaporator delivers even airflow to every corner of the cabinet.
- Electronic micro-processor control with LED temperature display and high-temp warning light.
- Snap-in drawer gaskets remove in seconds for thorough cleaning—no tools required.
- ABS interior sides & 2" foamed-in insulation add strength, a built-in thermal break and outstanding energy efficiency.
- Heavy-gauge leg rails & 4" casters (front brakes) safely support heavy cooking equipment and roll out for easy cleaning.
- Plug-and-play 115 V operation with 8 ft cord and NEMA 5-15P plug.
- Certified & backed by Delfield: cULus, NSF, 3-year parts & labor, 5-year compressor.
Quick Specs
| Exterior Dimensions (W × D × H) | 56.25" × 31.94" × 24" (142.9 cm × 81.1 cm × 61 cm) |
|---|---|
| Drawer Count / Pan Capacity | 2 drawers / 4 full-size 12" × 20" × 4" pans |
| Temperature Range | 36 – 40 °F (2 – 4 °C) at 100 °F ambient |
| Refrigerant / Compressor | R290 Hydrocarbon / 0.20 hp (1/5 hp) |
| Voltage / Phase / Amps | 115 V / 60 Hz / 1 ph / 2.9 A |
| Plug Type | NEMA 5-15P (8 ft cord included) |
| Construction | 18-ga stainless top & drawer fronts, stainless sides, ABS interior sides |
| Mobility | 4" swivel casters, front locking |
| Shipping Weight | Approx. 405 lb (184 kg) |
| Warranty | 3-yr parts & labor • 5-yr compressor • 10-yr drawer tracks |
| Certifications | cULus, UL, NSF 7 |
Installation Note: Maintain a minimum 2" airspace
between the bottom of all cooking equipment and the stand’s top.
A solid barrier (drip pan or bottom plate) is required between open
heat sources and the stainless top to avoid damage and preserve warranty.

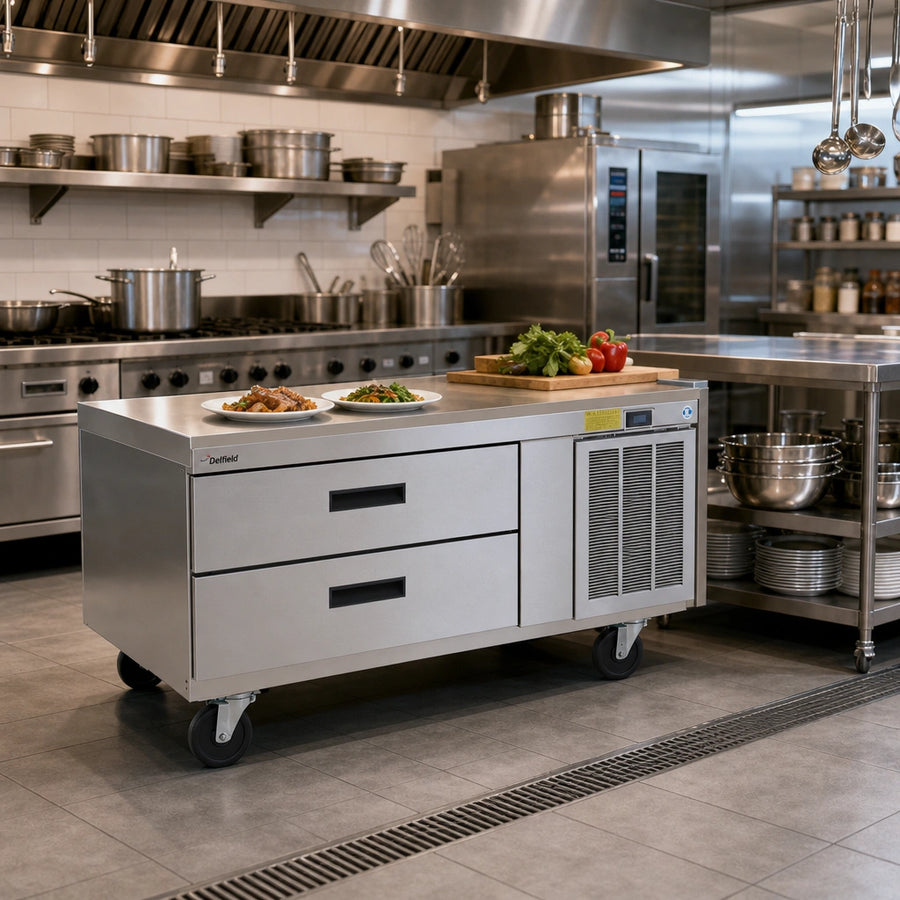

Hotel pans and countertop cooking equipment shown in images are for demonstration purposes and are not included with the stand.
$11,777.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield F2956CP low-profile refrigerated worktop: 56" stainless stand with 2 drawers, R290 efficiency, NSF/UL certified, casters for easy mobility.
Manufacturer
Delfield
Brand name
Low Profile
Certifications
NSF, UL
Height
24.0in
Width
56.25in
Depth
31.94in
Shipping Weight
405.0lbs
Compressor HP
1/5 HP
Top Finish
stainless steel top
Refrigeration
self-contained, side mounted
Width
49" - 60" wide
Drawer Qty
2 drawers
Specifications
Refrigerated Low-Profile Equipment Stand, 56-1/4"W x 31-47/50"D x 24"H, single-section, (2) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/5 hp, cUL, UL, NSF
