Delfield F2936CP Low Profile Undercounter & Worktop Refrigeration
Description

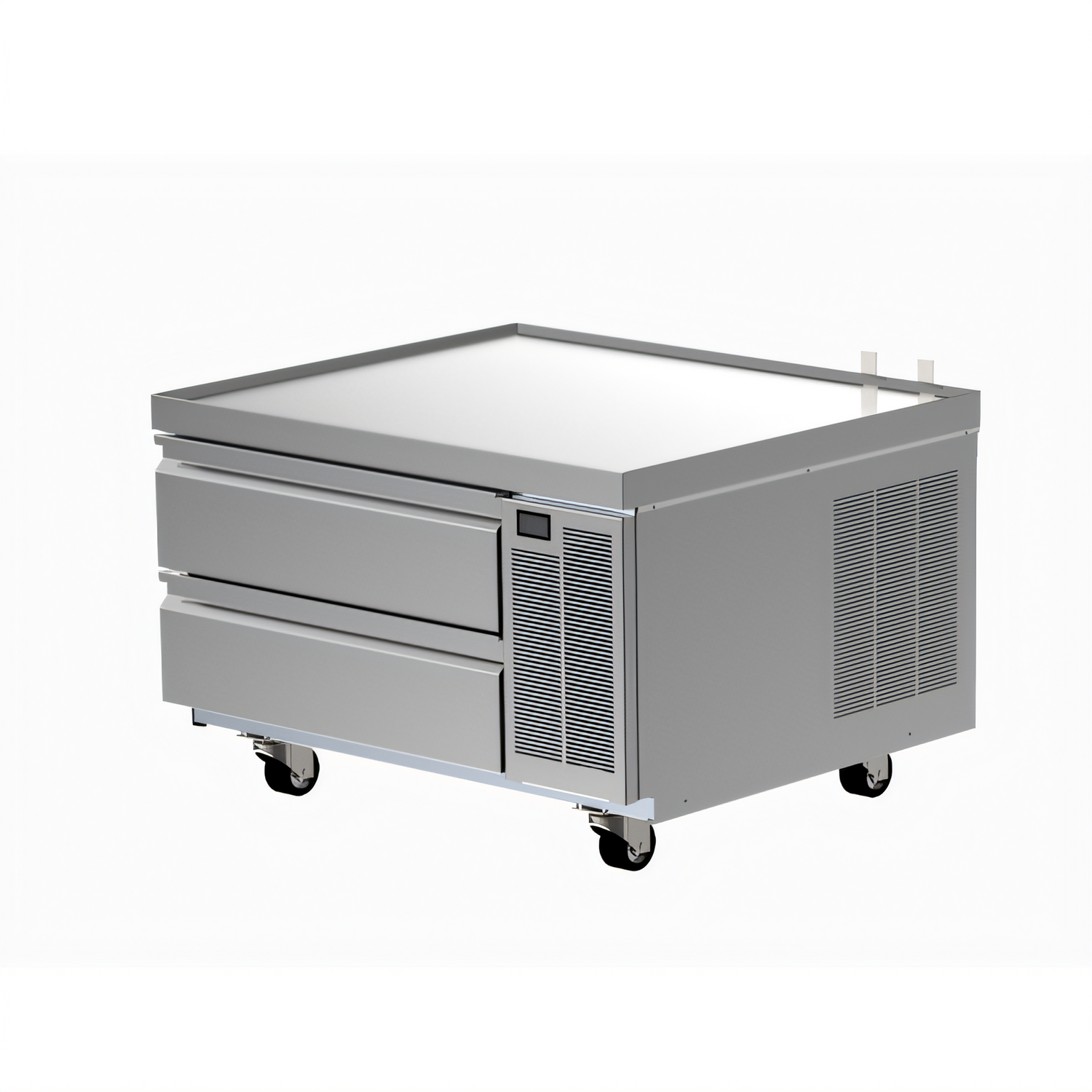

Delfield F2936CP Low-Profile Refrigerated Equipment Stand – 36"
2-Drawer | Self-Contained Side-Mount R290 Refrigeration | 24" Cabinet HeightGive your countertop griddle, charbroiler or plancha a rock-solid foundation that also keeps fresh product ice-cold and right where you need it. The Delfield F2936CP packs big-time refrigeration performance into a compact 36" footprint, helping you streamline workflow, cut steps and speed service on even the tightest cooklines.
Key Benefits
- 18-ga stainless-steel top with full-perimeter marine edge contains spills and protects surrounding equipment.
- True low-profile design: 24" cabinet height (≈25.5" working height on the included 4" casters) keeps cooking surfaces at an ergonomic level.

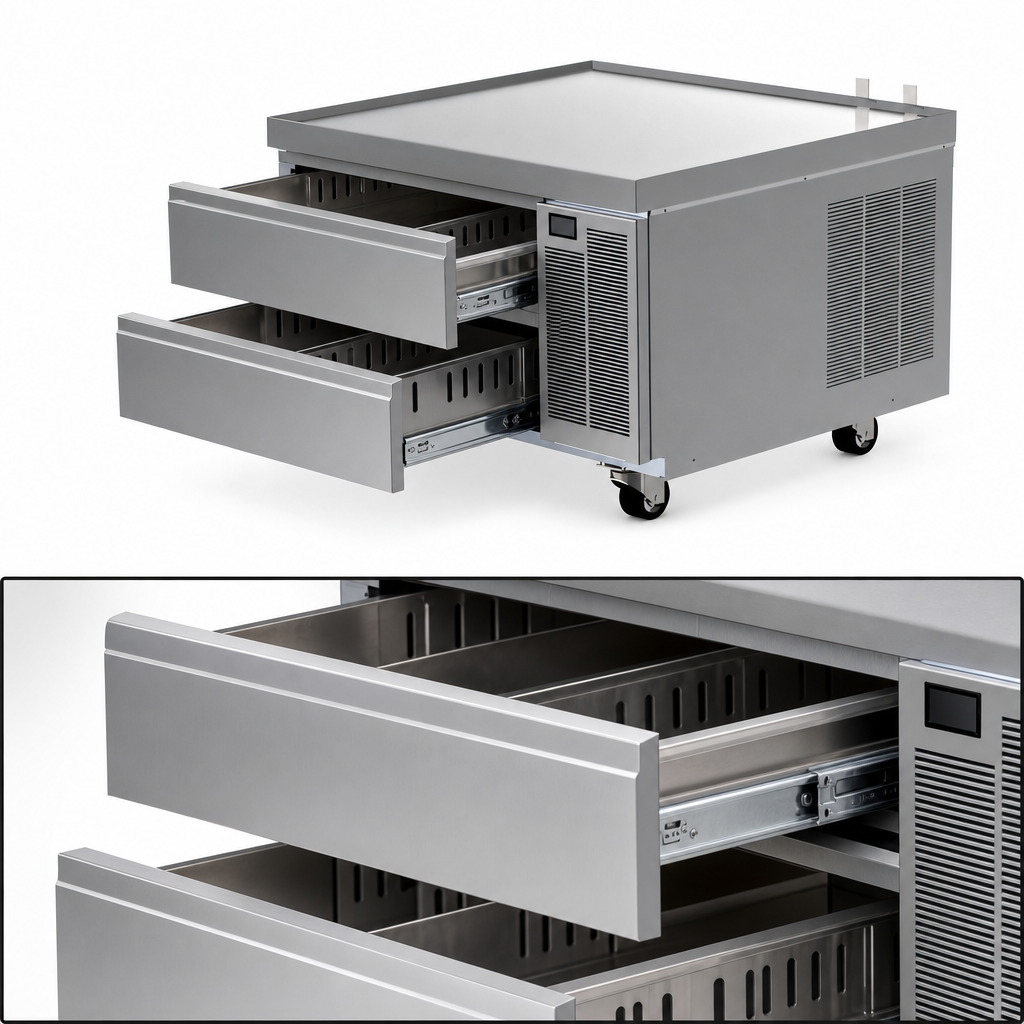

- (2) Full-Extension Plus drawers hold up to four 12" × 20" × 4" hotel pans (pans not included) and carry a 10-year drawer-track warranty.
- Side-mounted, self-contained refrigeration maintains 36 – 40 °F (2 – 4 °C) in 100 °F/38 °C ambient kitchens.
- Eco-friendly R290 hydrocarbon refrigerant paired with a 1/5 hp compressor delivers efficient, quiet cooling.
- Electronic temperature control & bright LED readout are located outside the food zone for quick checks and adjustments.
- ABS interior sides provide a thermal break and extra dent resistance for everyday pan changes.
- Standard 4" swivel casters (front locking) and a wall-mount anti-tip bracket make cleaning and service a breeze.
- Ships with an 8' (2.4 m) cord and NEMA 5-15P plug – simply roll it in, plug it in and start chilling.
Ideal Applications
- Under-counter support for grills, griddles & charbroilers
- Compact cooklines, ghost kitchens & food trucks
- Quick-service and fast-casual concepts that need refrigerated mise en place within arm’s reach
Technical Specifications
| Exterior Dimensions (W × D × H) | 36 1/4" × 31 15/16" × 24" (921 mm × 811 mm × 610 mm) |
|---|---|
| Drawer Count / Pan Capacity | 2 drawers / (4) 12" × 20" × 4" pans |
| Temperature Range | 36 – 40 °F (2 – 4 °C) |
| Refrigerant | R290 Hydrocarbon |
| Compressor | 1/5 hp, side-mounted, self-contained |
| Electrical | 115 V / 60 Hz / 1 Ph, 2 A, NEMA 5-15P |
| Insulation | 2" high-density, zero-ODP polyurethane foam |
| Casters | 4" swivel (front locking) |
| Certifications | cULus, NSF 7 |
Warranty Coverage
- 3-year parts & labor on the entire unit
- Additional 2-year compressor parts warranty (total 5 years compressor parts)
- 10-year parts warranty on drawer track assemblies

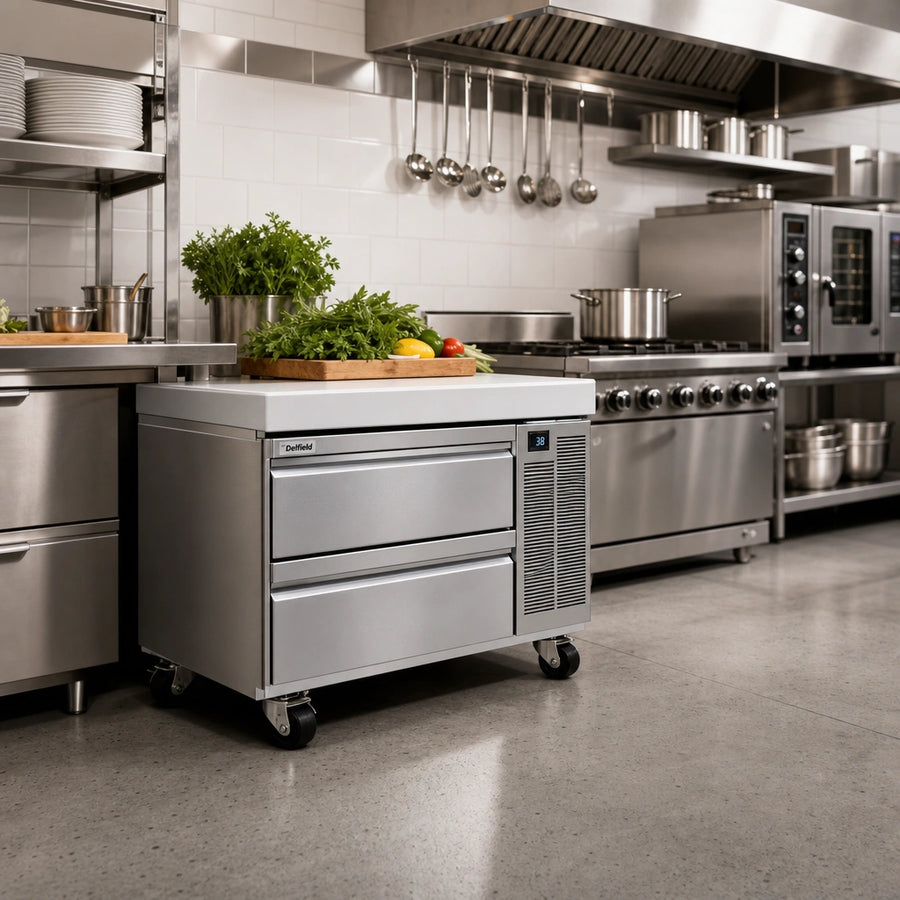

Hotel pans, countertop cooking equipment and accessories shown in marketing images are sold separately.
