Delfield  |  Low Profile  |  SKU: F2694CP

Delfield F2694CP Low Profile Undercounter & Worktop Refrigeration

$17,135.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

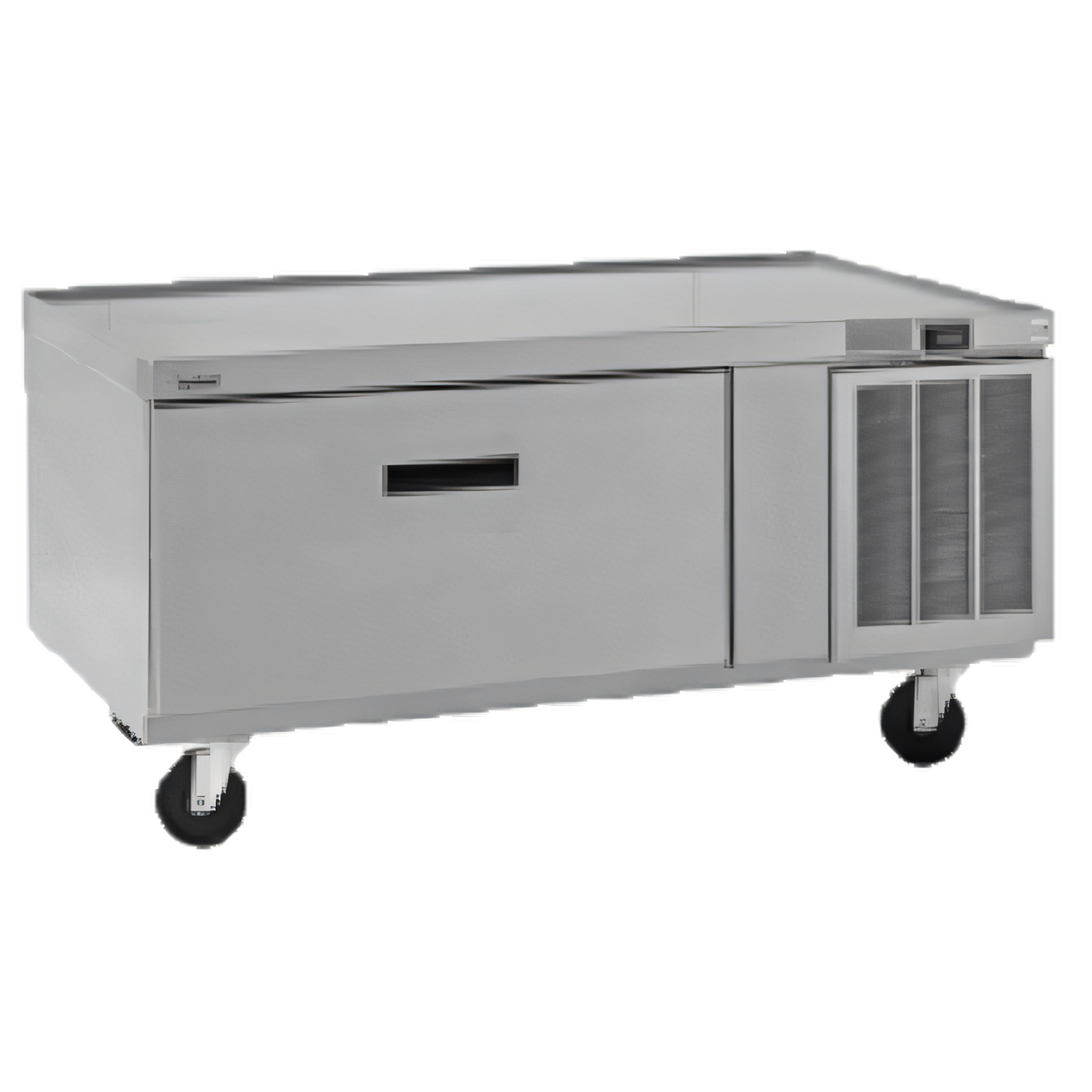

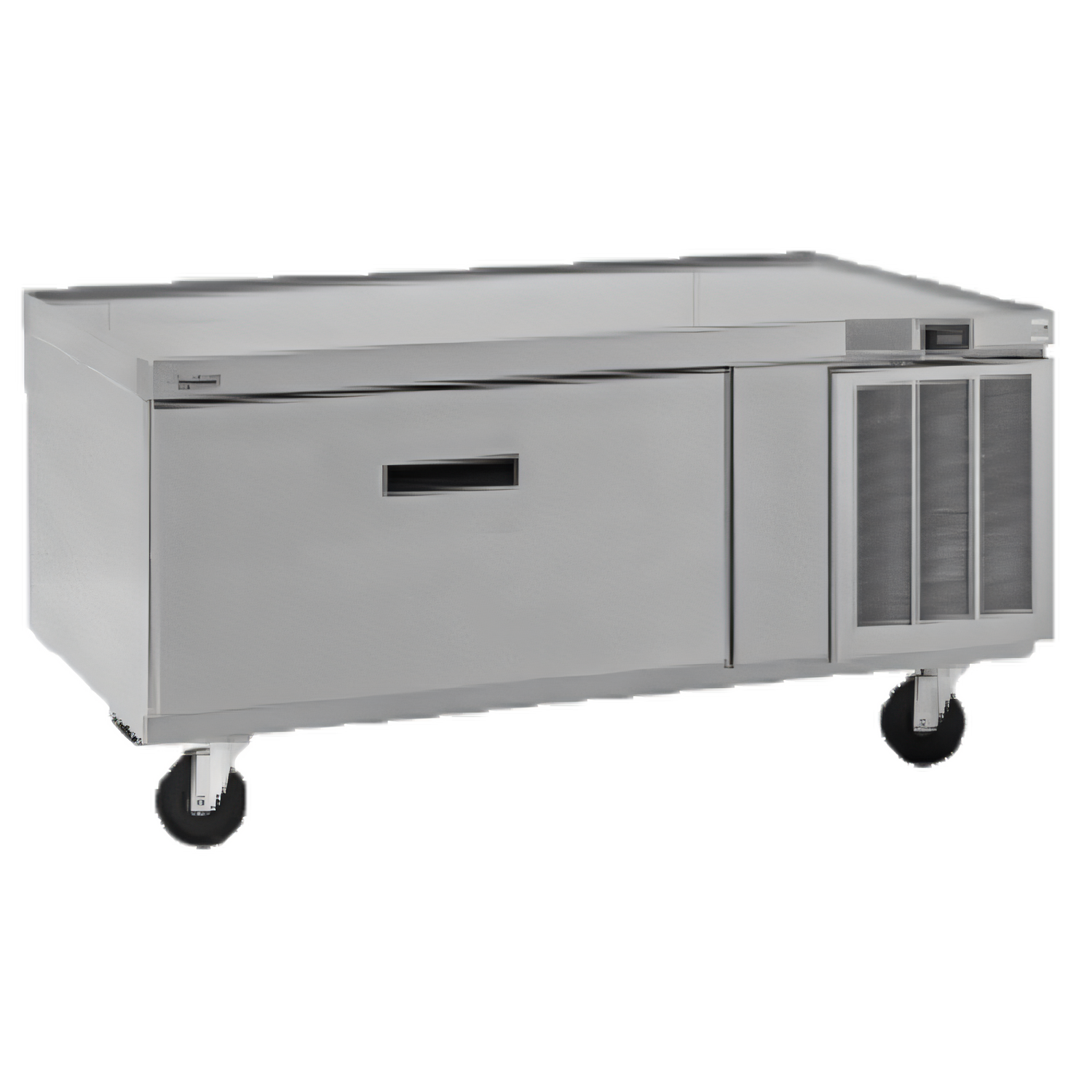

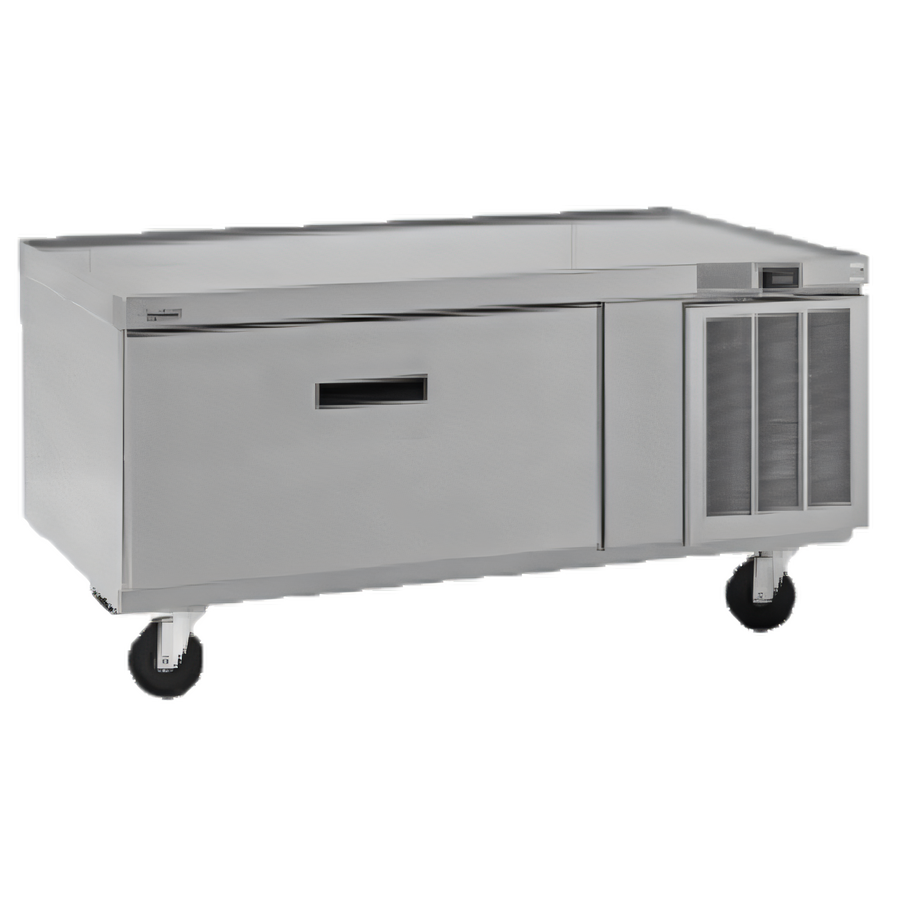

Delfield F2694CP “Low-Profile” Freezer Equipment Stand

94 in W × 31.9 in D × 26 in H  |  2 Drawers  |  4-Pan Capacity

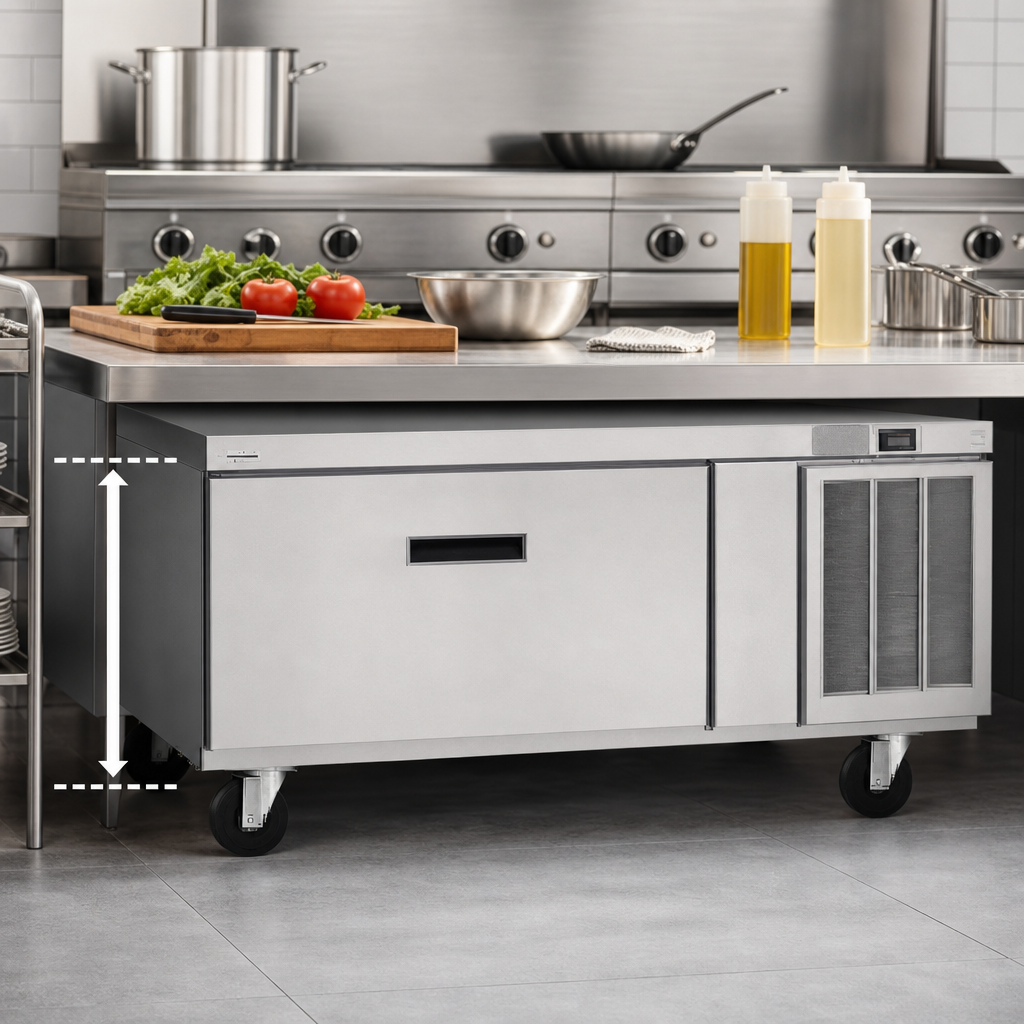

Keep frozen ingredients within arm’s reach while giving heavy countertop cooking equipment a rock-solid, low working height. The Delfield F2694CP pairs a heavy-duty marine-edge stainless top with a high-performance, environmentally-friendly freezer base that holds 0 to -5°F (-18 to -21°C)— even in 100°F kitchens.

Why It Belongs on Your Line

  • Heavy-gauge stainless steel top & front with full-perimeter marine edge – stops spills and supports grills, griddles & charbroilers.
  • Two Full-Extension Plus drawers (all-stainless construction) each accept two 12 × 20 × 8 in hotel pans  (pans sold separately).
  • Mullion-style dual-fan evaporator delivers even cooling to every section.
  • Side-mounted, self-contained refrigeration with natural R290 refrigerant and electronic control.
  • 0 – -5°F holding temps at 100°F ambient; adaptive defrost keeps coils clear in the busiest kitchens.
  • High-density, Kyoto-protocol-compliant polyurethane foam—zero ODP / zero GWP insulation.
  • 4 in casters (front two locking) & wall-mount anti-tip bracket standard for fast cleaning and safe operation.
  • Snap-in Santoprene drawer gaskets remove without tools for dish-machine cleaning.
  • 8 ft cord & 5-15P plug—no hard-wiring needed.
  • cUL, UL & NSF 7 listed; backed by a 3-yr parts & labor warranty + 2-yr compressor parts coverage.

At-a-Glance Specs

Model F2694CP
Exterior Dimensions (W × D × H) 94 in × 31.94 in × 26 in
(2387 × 812 × 660 mm)
Work-surface Height 25.5 in (top of marine edge)
Sections / Drawers 2 sections / 2 full-extension drawers
Pan Capacity 4 × 12 × 20 × 8 in hotel pans
Temperature Range 0 to -5°F (-18 to -21°C)
Refrigeration Side-mounted, self-contained; R290 hydrocarbon
Compressors Two ⅓ HP
Electrical 115 V / 60 Hz / 1 Ø, 7.6 A, NEMA 5-15P plug (8 ft cord)
Construction 18-ga stainless top; 22-ga stainless interior; ABS interior sides; galvanized bottom/back; 14-ga leg rails
Insulation 2 in high-density polyurethane foam, zero ODP / zero GWP
Casters 4 in heavy-duty (front locking)
Listings cUL us, UL EPH, NSF 7
Ship Weight 505 lb (229 kg)
Warranty 3 yr parts & labor + additional 2 yr compressor parts
Installation Notice: Maintain a minimum 2 in (51 mm) air gap between the stand’s top and the bottom of any cooking appliance. Appliances must include a drip pan or barrier between the heat source and the stand to avoid damage and preserve warranty coverage.

Need an alternate size, extra drawers, or remote refrigeration? Ask about Delfield’s Mark 7 custom fabrication program.

Features & Specs

Manufacturer

Delfield

Brand_name

Low Profile

Certifications

NSF, UL

Height

26.0in

Width

94.25in

Depth

31.94in

Shipping Weight

505.0lbs

Width

91" - 96" wide

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Drawer Qty

2 drawers

Compressor HP

(2) 1/3 HP

Specifications

Freezer Low-Profile Equipment Stand, 94"W x 31-47/50"D x 26"H, two-section, (2) drawers holds (4) 12" x 20" pans (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, (2) 1/3 hp, cUL, UL, NSF
