Delfield F2660CP Low Profile Undercounter & Worktop Refrigeration
Description

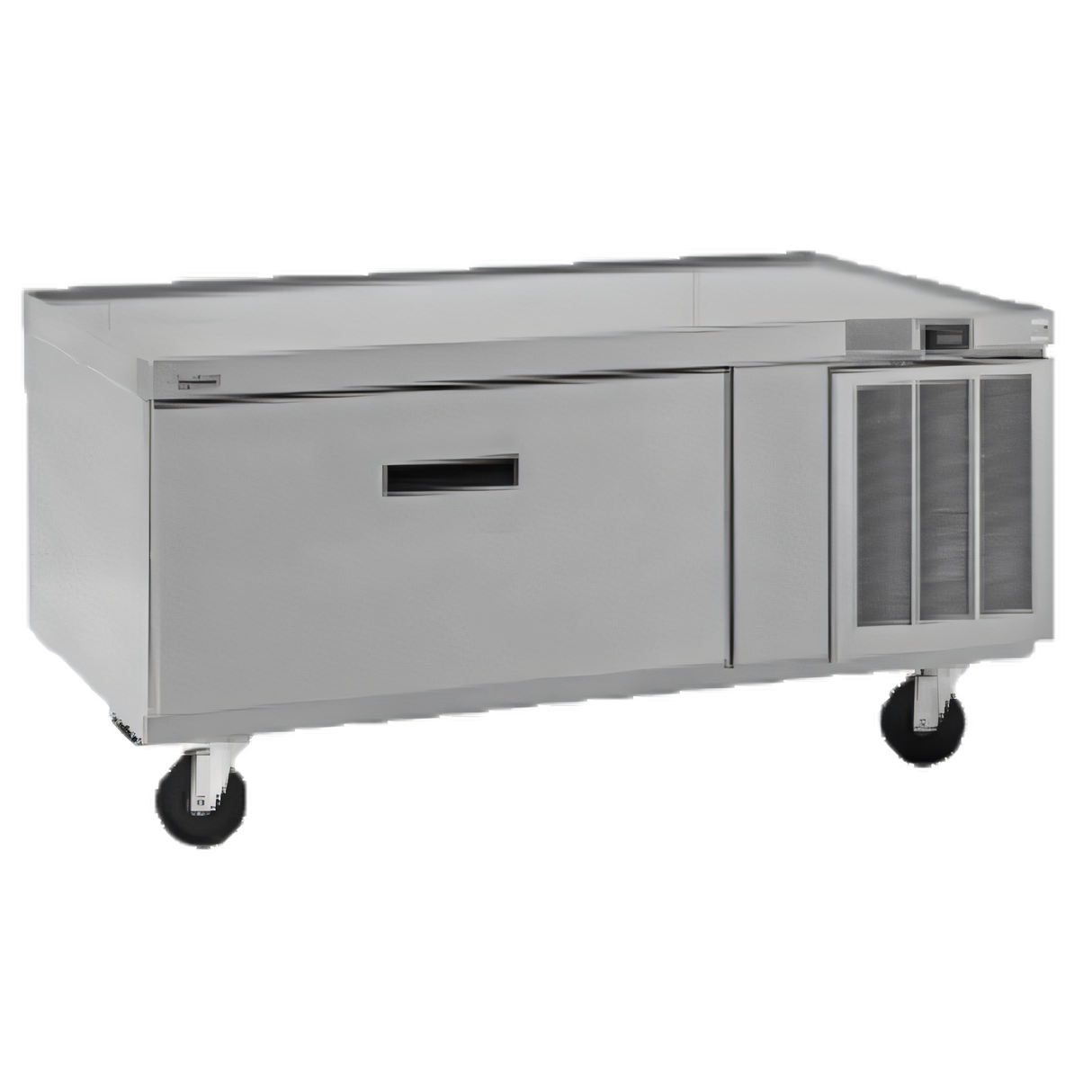

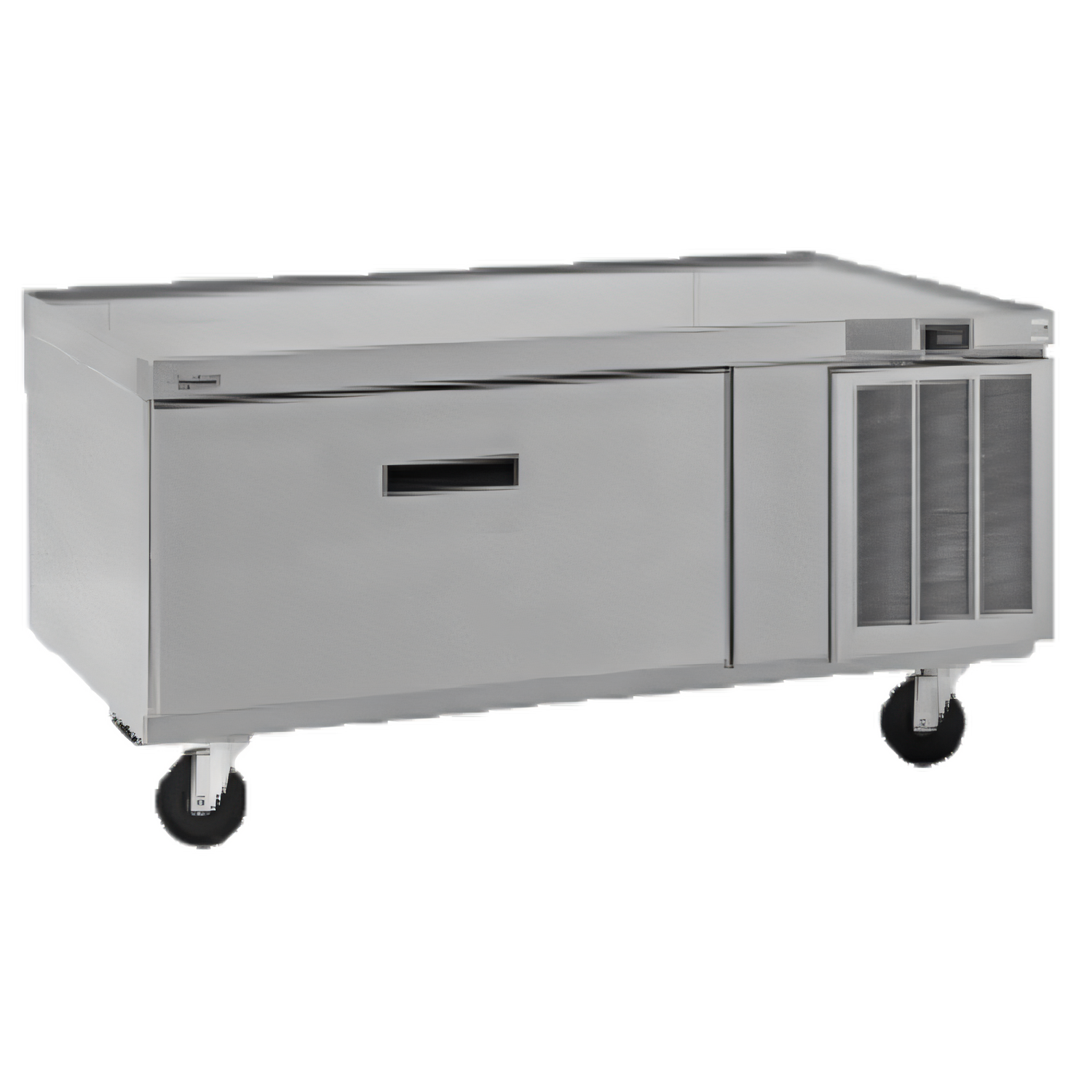

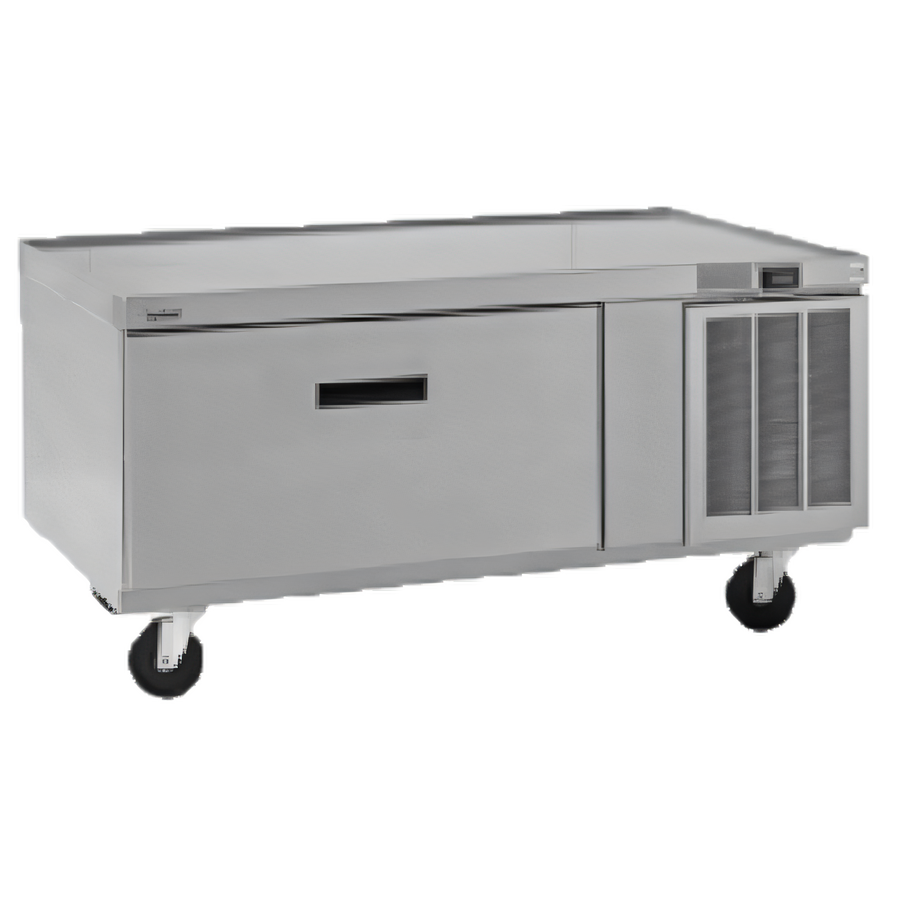

Delfield F2660CP Low-Profile Freezer Equipment Stand – 60"
Single-drawer | 2 × 12" × 20" pan capacity | Side-mounted R290 refrigerationGive your grill, griddle or charbroiler a rock-solid home and keep frozen ingredients at arm’s reach. The Delfield F2660CP combines an extra-low 26" working height with heavy-duty refrigeration that holds 0° to −5°F even in 100°F kitchens. Built on a stainless marine-edge top and full-extension drawer system, this stand is the workhorse every high-volume line needs.
Why you’ll love it
- Heavy-gauge stainless top with full perimeter marine edge prevents spills and supports heavy cooking equipment.
- Full Extension Plus drawer glides on self-lubricating Delrin® roller tracks – rated for millions of cycles and covered by a 10-year track warranty.
- 2 × 12" × 20" pan capacity (pans optional) with “easy pan grip” flanges for quick swaps.
- 0° to −5°F holding at 100°F ambient – NSF 7 certified freezer performance.
- Eco-friendly R290 hydrocarbon refrigerant and energy-efficient TXV/dual-fan coil design.
- Electronic control with LED digital thermometer and high-temp alarm light right on the front nosing.
- 4" casters & wall-mount anti-tip bracket included for instant mobility and safety.
- 8’ cord & NEMA 5-15P plug – no hard-wiring required.
- 3-year parts & labor + 2-year compressor warranty backed by Welbilt KitchenCare®.

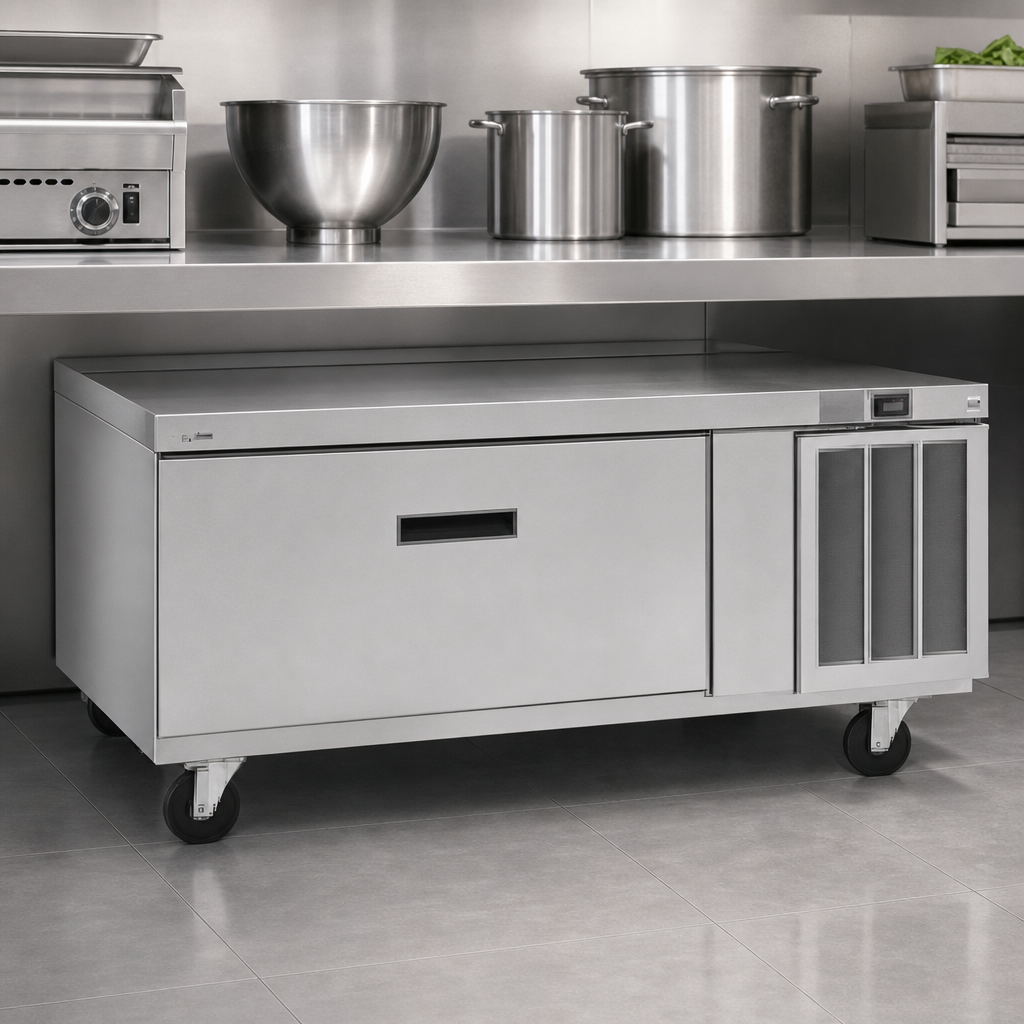

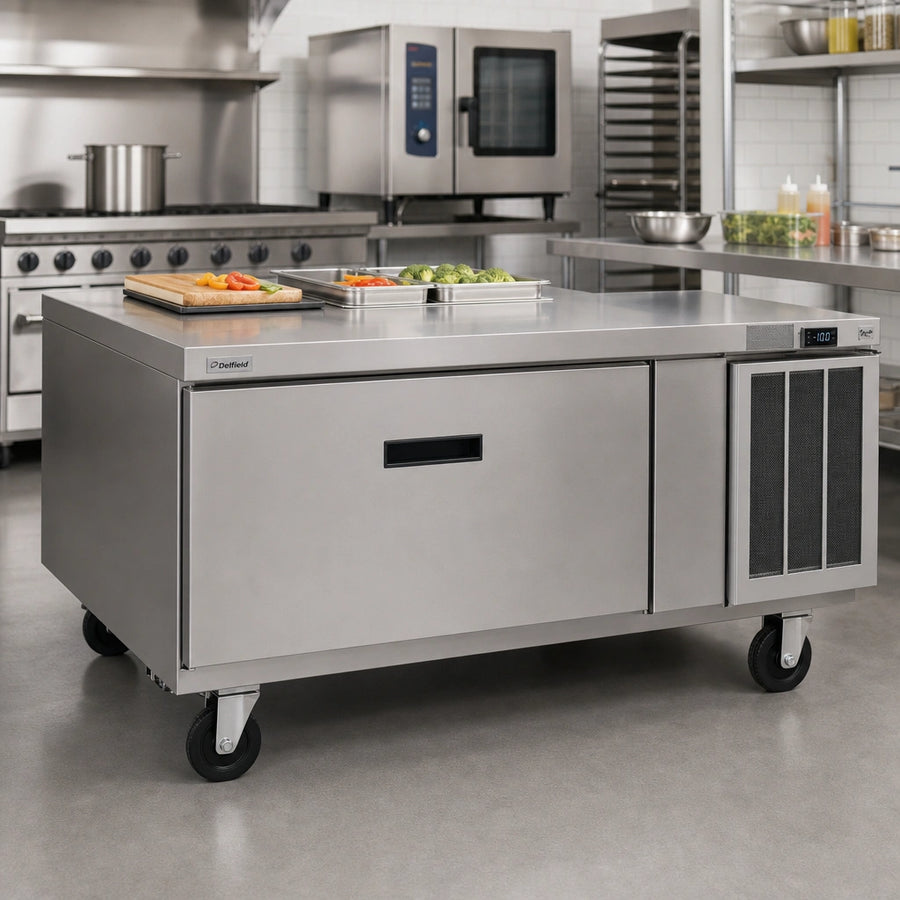

Built for the cook line
At only 25.5" surface height and 31.9" deep, the F2660CP slides neatly under countertop cooking equipment without forcing chefs to over-reach. Its rugged 14-gauge leg rails and stainless end panels handle the weight and heat of today’s high-BTU appliances, while ABS interior sides add a thermal break and dent resistance.
Technical specifications
| Exterior dimensions (W × D × H) | 60" × 31.94" × 26" (1524 mm × 812 mm × 660 mm) |
|---|---|
| Working surface height | 25.5" (648 mm) |
| Drawer count & pan capacity | 1 full-extension drawer – holds 2 × 12" × 20" × 8" pans |
| Temperature range | 0°F to −5°F (−18°C to −21°C) |
| Refrigeration system | Self-contained, side-mounted, (2) 1/3 hp compressors, R290 refrigerant, hot-gas condensate evap. |
| Electrical | 115 V / 60 Hz / 1-ph, 7.6 A, NEMA 5-15P, 8’ (2.4 m) cord |
| Insulation | 2" high-density, CFC-free polyurethane foam, Non-ODP / Non-GWP |
| Mobility | 4" swivel casters (front w/ brakes) |
| Construction | 18-ga stainless top, stainless front & ends, galvanized steel back/bottom, ABS interior sides |
| Certifications | cULus, NSF 7 |
| Warranty | 3 yr parts & labor / 5 yr compressor (2 yrs added) |
Hotel pans, drawer locks and other accessories sold separately. Need a different size or remote refrigeration? Ask about Delfield’s Mark7 custom fabrication.
