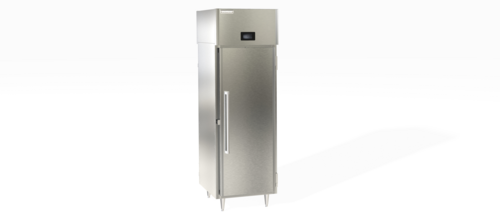

Delfield DSLFPT1-S One-Section Pass-Thru Freezer, 22.9 Cu. Ft., Top-Mounted Self-Contained, Stainless Steel

Dual Solid Locking Doors, Remote Monitoring, R290 Refrigerant

Built for fast-paced kitchens, this pass-thru freezer combines 22.9 cu. ft. of storage, dual access, and remote monitoring in a durable stainless steel cabinet.

  • Pass-thru design with two full-height hinged solid doors for efficient loading and unloading from either side.
  • Top-mounted self-contained refrigeration keeps components out of the food zone and simplifies service.
  • Stainless steel exterior and interior provide durability and easy cleanup.
  • easyTouch control with a 4.3" screen and remote monitoring capability helps maintain temperatures with confidence.
  • Three adjustable wire shelves and pilaster shelf clips support flexible storage.
  • R290 refrigerant, adaptive defrost, and hot gas condensate evaporator support efficient freezer performance.
  • Includes door-activated LED interior lighting, stay-open doors, and heavy-duty cylinder locks.

Overall Dimensions:

26.5"W x 33.42"D x 83.85"H

Product Weight:

358.0 lb

Pass-Thru Access

Allows loading and unloading from both sides to improve workflow in busy prep and storage areas.

easyTouch Control With Remote Monitoring

4.3-inch display/control system provides temperature management and remote monitoring capability.

Top-Mounted Self-Contained Refrigeration

All refrigeration components are mounted at the top and outside the food zone for easier service access.

Stainless Steel Construction

Stainless steel exterior front, sides, and interior for durability and sanitation.

Solid Locking Doors

Two full-height hinged solid doors include locking hardware and a stay-open feature for easier access.

Adjustable Storage

Includes three adjustable wire shelves with pilaster and shelf clips.

Interior LED Lighting

Door-activated LED lighting improves visibility inside the cabinet.

Efficient Refrigeration Components

Uses R290 refrigerant, adaptive defrost, and a hot gas condensate evaporator.

Leveling Legs

Four 6-inch adjustable stainless steel legs help with leveling and floor clearance.

Electrical Connection

Supplied with an 8-foot cord and NEMA 5-15P plug.

Type Freezer
Style Pass-Thru
Installation Type Floor Model
Capacity 22.9 Cubic Feet
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Horsepower 3/4 HP
BTU 2,450 BTU/Hr
Voltage 115 Volts
Amps 9.1 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 34 Inches
Shipping Height 84 Inches
Shipping Weight 358 lb.

Warranty & Protection

3-year parts and labor, plus an additional 4-year compressor parts warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Dsl tray slide PDF Download

Frequently Asked Questions

It has a capacity of 22.9 cubic feet.
Three adjustable wire shelves are included.
The unit is capable of maintaining product temperatures from -10°F to 0°F.
Yes. The easyTouch control includes remote monitoring capability.
It operates on 115V/60/1 power, draws 9.1 amps, and uses a NEMA 5-15P plug.
Yes. The cutsheet notes that 12 inches of top clearance is required.
