Delfield

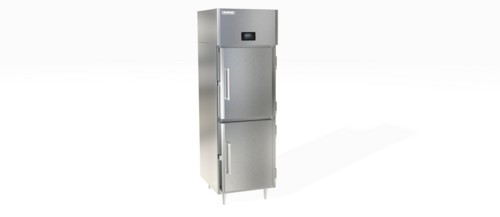

Delfield Specification Line 1-Section Dual Temperature Reach-In Refrigerator/Freezer, 21 Cu. Ft., Top Refrigerator/Bottom Freezer, Half-Height Solid Doors

SKU: DSLDTR1-SH
$16,846.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Delfield Specification Line 1-Section Dual Temperature Reach-In Refrigerator/Freezer, 21 Cu. Ft., Top Refrigerator/Bottom Freezer, Half-Height Solid Doors

Top-Mount Self-Contained Refrigeration, Standard Depth, Stainless Steel Inside and Out

This dual-temp reach-in combines refrigerated and frozen storage in one compact stainless steel cabinet with digital easyTouch controls and remote monitoring.

  • One-section, 21 cu. ft. dual-temperature reach-in with top refrigerator and bottom freezer storage.
  • Top-mounted self-contained refrigeration system uses R290 hydrocarbon refrigerant for efficient operation.
  • 4.3-inch easyTouch screen provides temperature display/control with remote monitoring capability.
  • Stainless steel exterior front, sides, and interior with LED lighting for durability and visibility.
  • Includes two half-height hinged solid locking doors, four adjustable chrome wire shelves, and 6-inch adjustable stainless steel legs.
  • Runs on standard 115V/60Hz/1-phase power with a NEMA 5-15P plug.

Overall Dimensions:

26.52"W x 33.42"D x 83.85"H

Product Weight:

351.0 lb

Dual Temperature Storage

Top refrigerator and bottom freezer configuration lets operators keep chilled and frozen ingredients in one cabinet.

Top-Mounted Self-Contained Refrigeration

Refrigeration components are mounted above the cabinet and formed as a self-contained system for easier service access.

R290 Refrigerant And Variable Speed Compressors

Environmentally friendly R290 refrigerant and variable speed compressor technology help optimize efficiency based on demand.

easyTouch Digital Control

4.3-inch touchscreen control provides temperature display, control, and remote monitoring capability.

Stainless Steel Construction

Stainless steel exterior front, sides, and interior provide durability and easy cleaning.

Locking Half-Height Solid Doors

Two half-height hinged solid doors include locking hardware and a stay-open feature for easier loading and unloading.

LED Interior Lighting

Magnetic door switching automatically activates the interior LED light when the door opens.

Flexible Storage And Support

Includes four adjustable chrome wire shelves and 6-inch adjustable stainless steel legs.

Insulated Partition Wall

Separates the refrigerated and frozen compartments to help maintain distinct temperature zones.

Type Dual Temperature Reach-In Refrigerator/Freezer
Style Top Refrigerator / Bottom Freezer
Installation Type Floor Model
Capacity 21 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Color Stainless Steel
Finish Stainless Steel
Refrigerant Type R290 Hydrocarbon
Refrigeration Type Self-Contained
Temperature Range 36 F to 38 F Refrigerator / -10 F Freezer
Controls easyTouch Digital Touchscreen
Compressor Horsepower 1/5 HP Refrigerator / 1/3 HP Freezer
BTU 1,431 BTU/Hr Refrigerator / 1,094 BTU/Hr Freezer
Voltage 115 Volts
Amps 6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 34 Inches
Shipping Height 84 Inches
Shipping Weight 351 Pounds

Warranty & Protection

3-year parts and labor warranty, plus an additional 4-year compressor parts warranty.

Frequently Asked Questions

Yes. It is a dual-temperature reach-in with the refrigerator on top and the freezer on the bottom.
It uses a top-mounted self-contained refrigeration system with R290 hydrocarbon refrigerant and variable speed compressors.
The unit operates on 115V / 60Hz / 1-phase power, draws 6 amps, and includes a NEMA 5-15P plug.
The unit includes four adjustable chrome wire shelves.
The refrigerator section maintains 36 F to 38 F, and the freezer section maintains -10 F in heavy-use foodservice operations.
Yes. It includes LED interior lighting and easyTouch control with remote monitoring capability.
