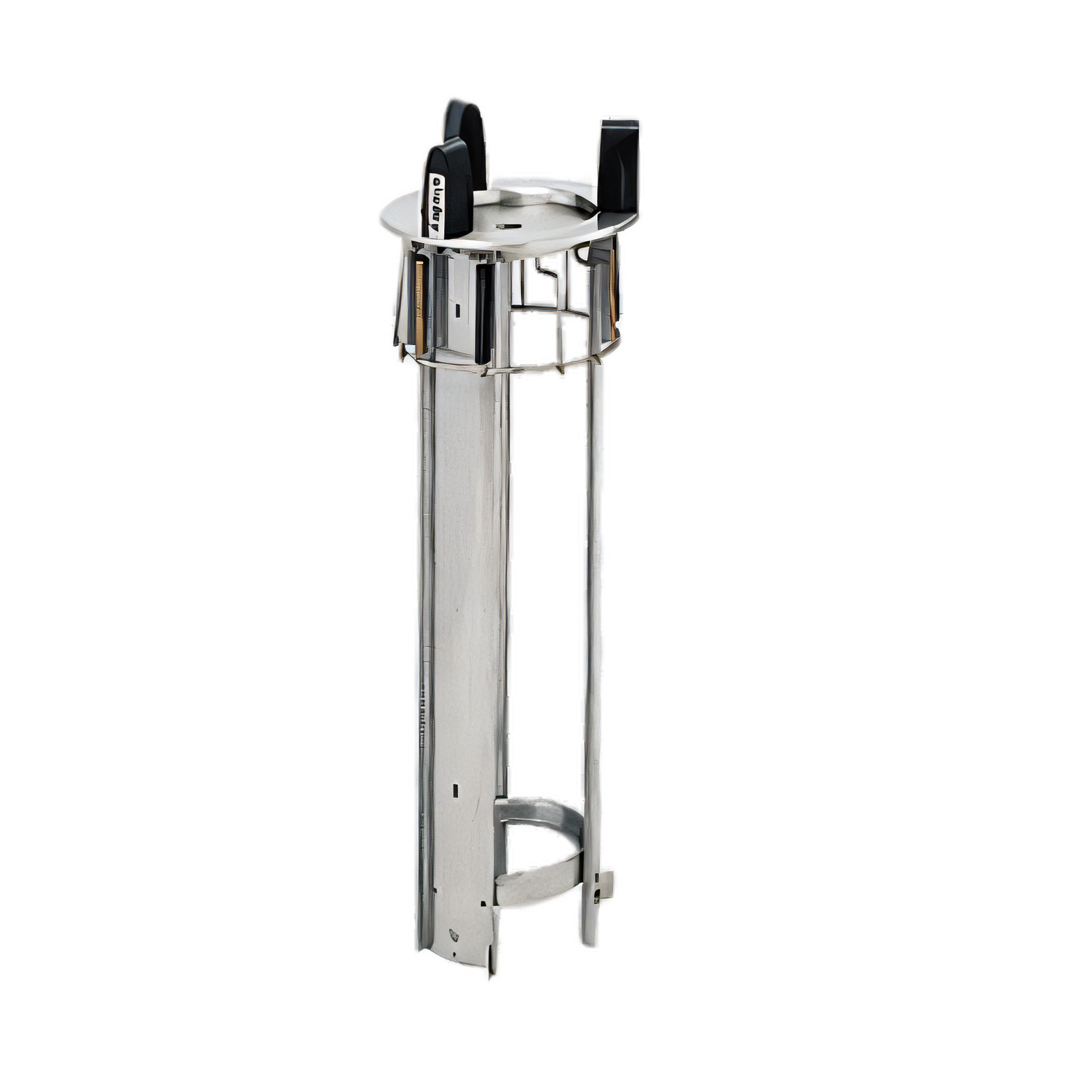

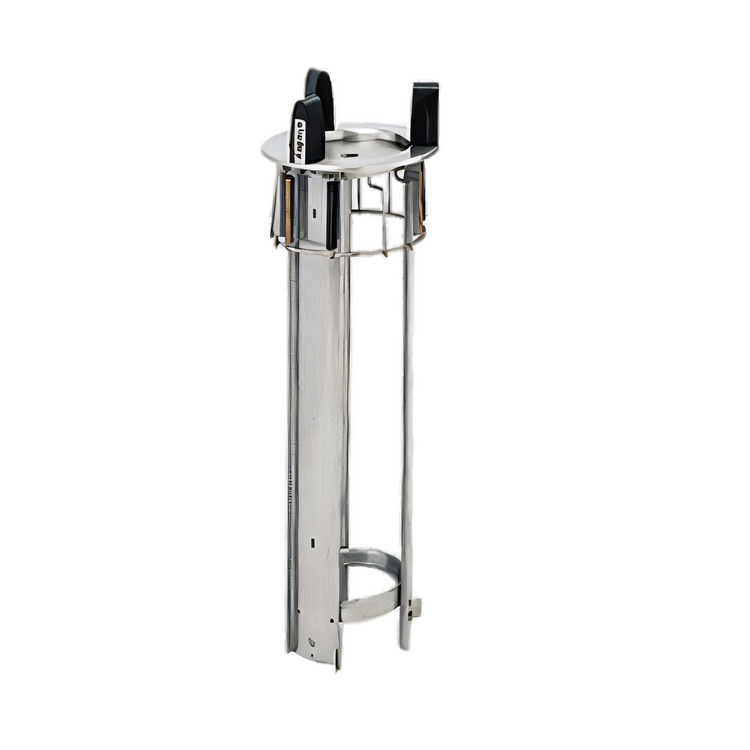

Delfield DIS-1013 Drop-In Plate Dispenser

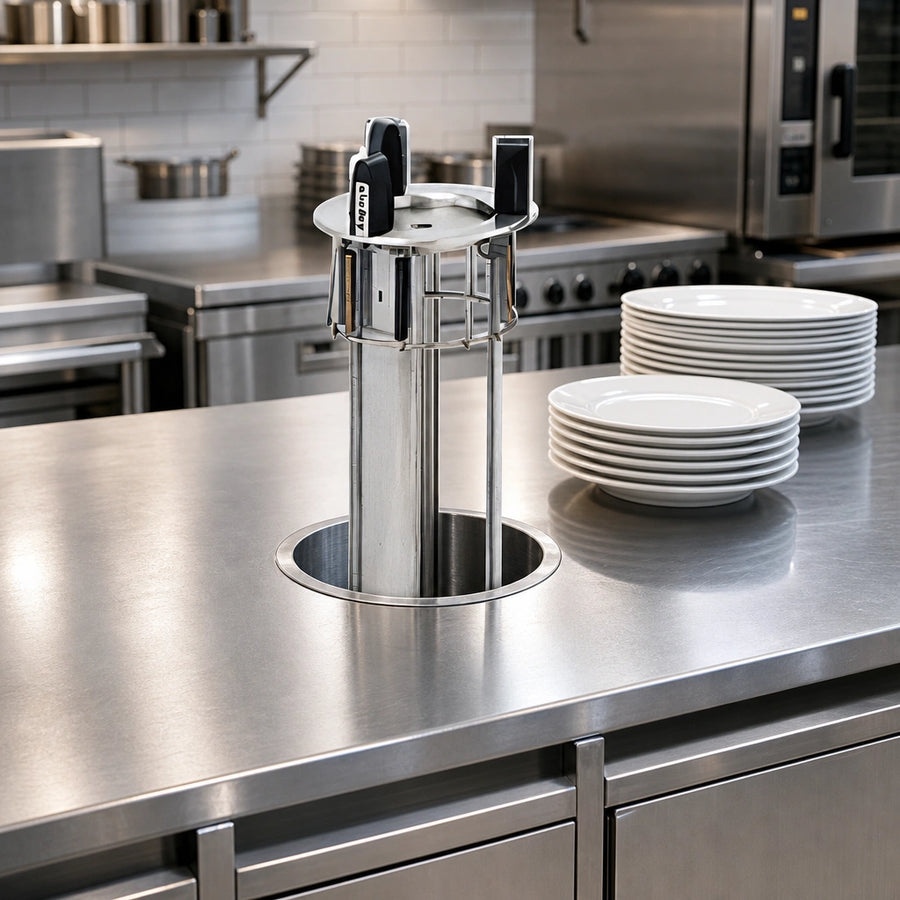

10.12" max plate • Single self-elevating tube • Non-heatedKeep service lines moving and plates protected with Delfield’s industry-leading drop-in dish dispenser. The DIS-1013 fits flush in your counter, automatically raises plates to the perfect serving height, and stands up to years of high-volume use thanks to its all-stainless construction.
Why You’ll Love It
- Self-leveling presentation – stainless steel springs adjust on the fly so the top plate is always within easy reach.
- Built for busy kitchens – welded stainless steel flange, side channels and bottom brace resist corrosion, dents and warping.

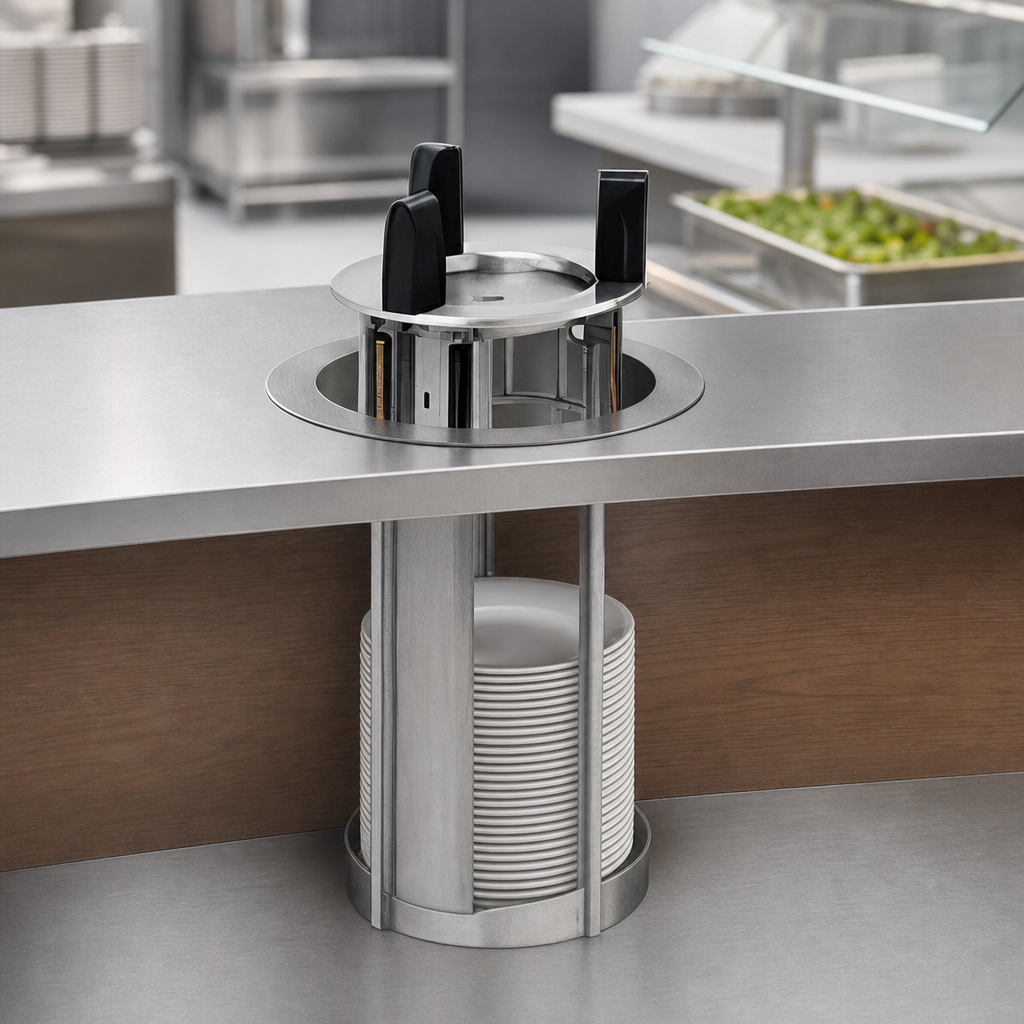

- Quick “drop-in” install – 13½" flange and factory-installed gasket create a seamless press-fit in new or existing counters.
- Field-adjustable capacity – add or remove springs to match plate weight and keep stacks perfectly level.
- Smooth, sanitary dispensing – high-impact plastic guide posts prevent metal-to-porcelain contact and reduce chipping.
- Certified & safe – cULus and NSF listings meet today’s most stringent health and electrical safety codes.
- Peace-of-mind warranty – 1-year parts and 90-day labor coverage included at no extra cost.
Technical Specifications
| Model | DIS-1013 (non-heated) |
|---|---|
| Dish diameter range | 9.12" – 10.12" (23 – 26 cm) |
| Maximum stack capacity | ≈ 72 plates / 24" (61 cm) stack height |
| Overall tube depth | 28" (71 cm) |
| Flange diameter | 13.5" (34 cm) |
| Counter cut-out required | 12.87" (32.7 cm) diameter |
| Construction | Stainless steel tube, top flange, bottom brace & side channels; steel frame |
| Weight (ship) | 13 lb (6 kg) |
| Compliance | cUL, UL, NSF listed |
| Warranty | 1-year parts • 90-day labor |
Installation hardware supplied. Counter opening must match cut-out size and support 13 lb load. Allow adequate clearance below for plate stack height and spring adjustment.
$1,323.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield DIS-1013 drop-in self-elevating plate dispenser, stainless steel, fits up to 10.12" plates, durable NSF/UL/cUL listed for commercial kitchens.
Manufacturer
Delfield
Certifications
NSF, UL
Height
28.0in
Shipping Weight
13.0lbs
Plate Style
round
Base Style
unshielded (open)
Plate Diameter
10" - 12"
Type
unheated
Specifications
Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size 10.12" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 12-7/8", flange diameter 13-1/2", cUL, UL, NSF
