Delfield D4560NP Undercounter & Worktop Refrigeration

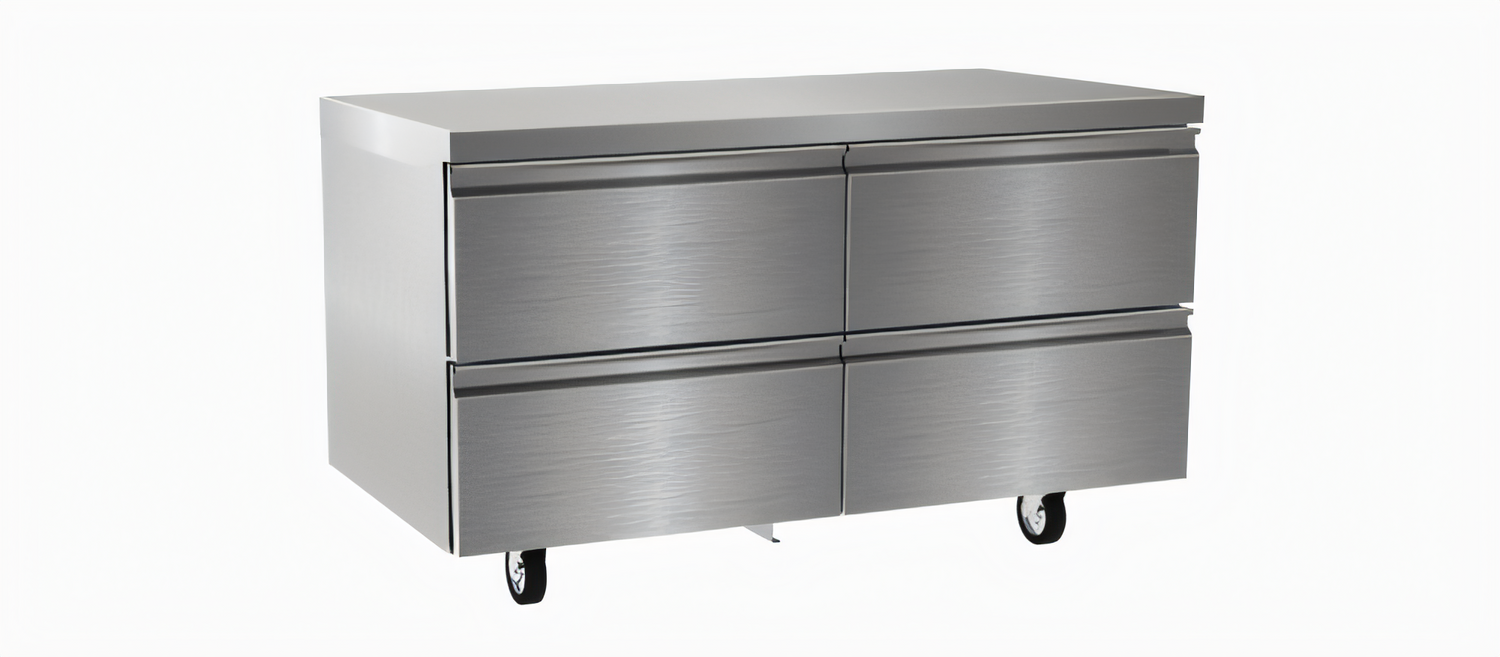

Delfield D4560NP 60" Front-Breathing Four-Drawer Worktop Freezer

Bring hard-freezing performance right to the cook line. The Delfield D4560NP tucks 17.8 ft³ of storage below a full stainless work surface, giving you instant access to frozen ingredients in a compact, front-breathing design that installs flush against walls or inside existing millwork.

Key advantages

• 100 % front-breathing refrigeration—no side or rear clearance required

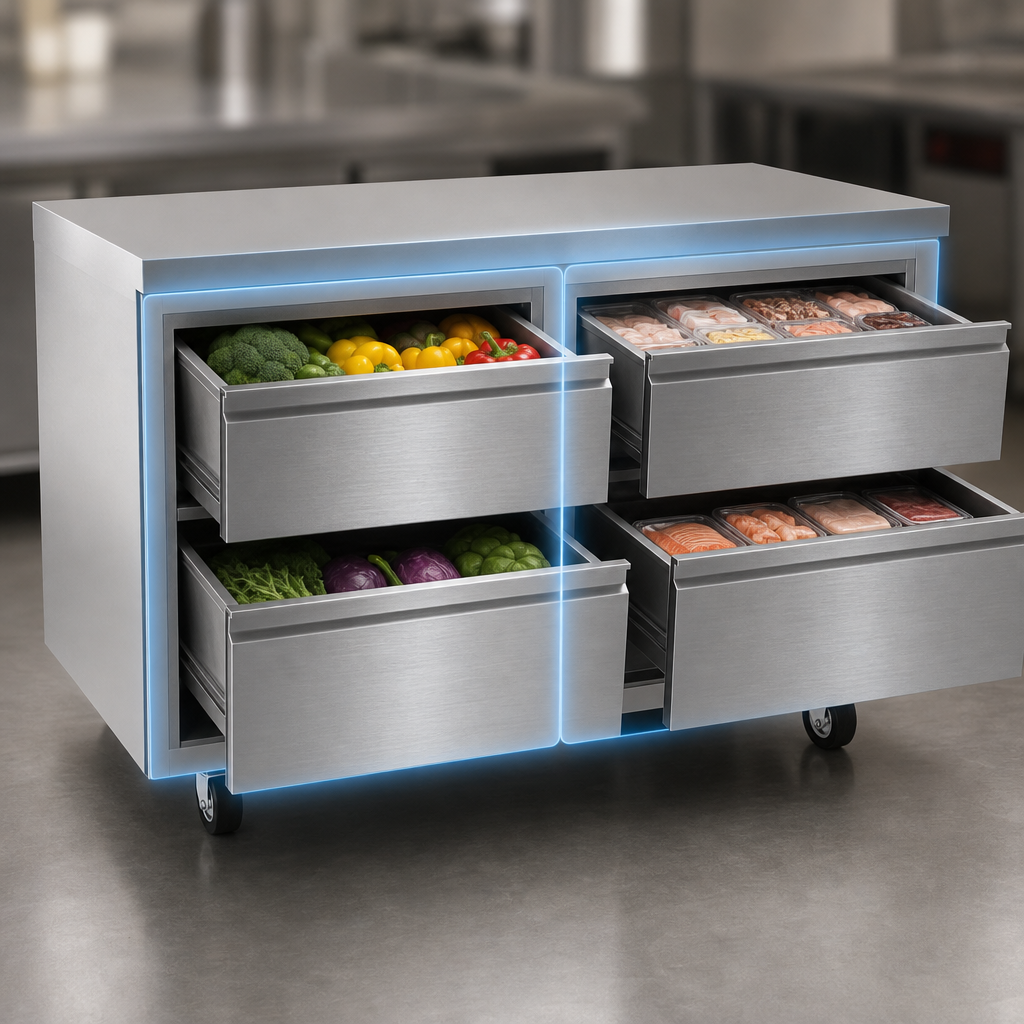

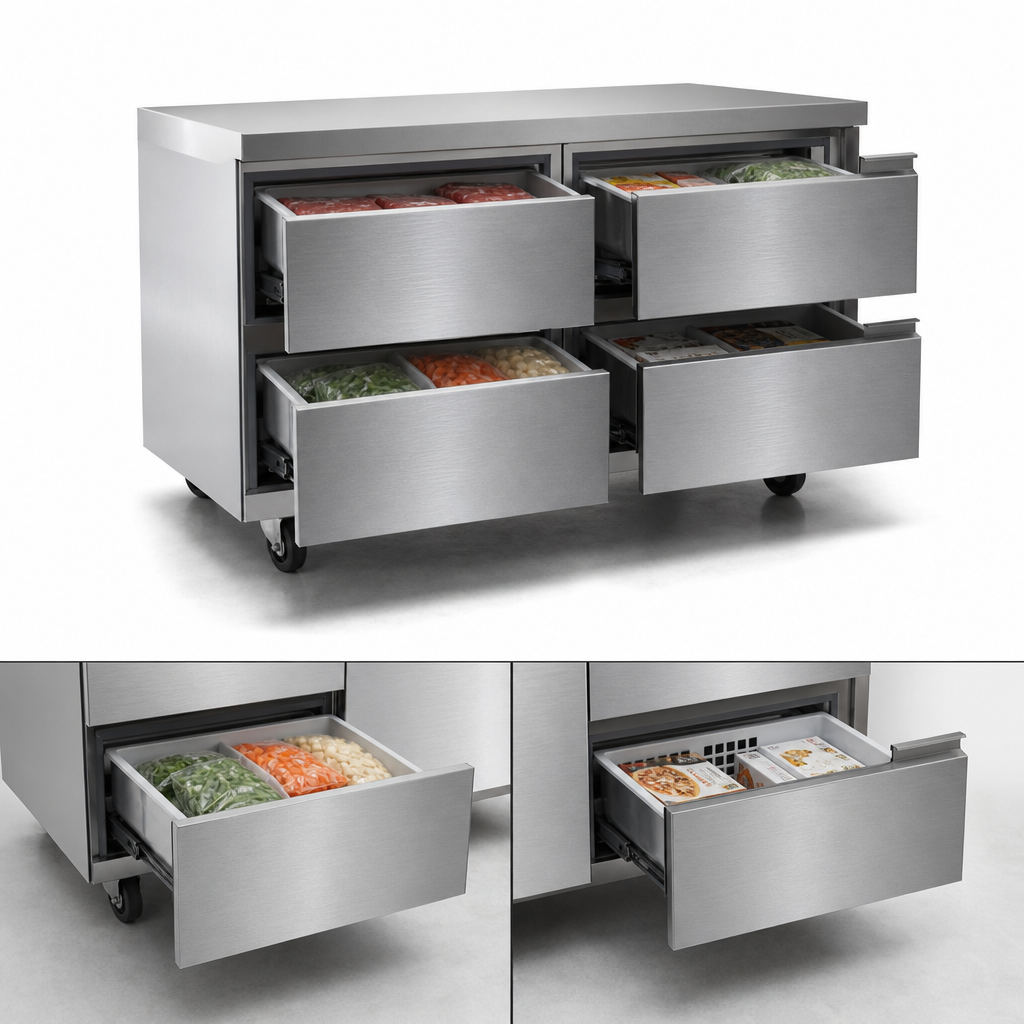

• Four drawers (2 over 2) accept full-size & 1/6-size pans for efficient mise en place
• ACT electronic control holds a rock-solid 0°–5°F temperature band
• Eco-friendly R290 refrigerant & high-density, zero-ODP polyurethane insulation
• 22-ga stainless exterior with dent-proof ABS interior sides (limited lifetime warranty)
• Lifetime-warranted drawer track system on heavy 11-ga slides with Delrin® bearings
• Ships on 5" locking casters and includes a 10 ft cord with NEMA 5-15P plug

Refrigeration & performance

• 0.45 hp rear-mounted, self-contained refrigeration package
• Expansion-valve metering ensures even airflow & rapid temperature recovery
• Hot-gas condensate evaporator—no external drain lines to install
• Maintains 0°F to 5°F (-18°C to -21°C) in 90 °F/65 % RH kitchen environments

Built for the long shift

• One-piece 22-ga stainless worktop with 2.12" front nosing
• 12-ga stainless drawer frames withstand heavy kitchen traffic
• Bent-in full-length handles—no hardware to snag, strip or loosen
• Field-replaceable magnetic gaskets seal in cold & snap out for cleaning

Drawer pan capacity

• Top drawers: 1 × full-size 12" × 20" pan (4–6" deep) + 3 × 1/6-size pans
• Bottom drawers: 1 × full-size 12" × 20" pan (4" deep) + 3 × 1/6-size pans

Food pans are not included.

Specifications

Factory warranties

• 3-year parts & labor on the entire unit
• 7-year compressor parts coverage
• Limited lifetime on ABS liners & drawer track assemblies

Popular options (sold separately)

• 18" single-tier overshelf
• Composite or poly cutting board
• Stainless steel finished back
• Lower-height casters
• Drawer lock kit
