Delfield  |  Mega Top  |  SKU: D4432NP-12M

Delfield D4432NP-12M Mega Top Refrigerated Prep Tables

$6,211.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Delfield Mega Top 32" Drawer Prep Refrigerator

Model D4432NP-12M • 10.1 cu ft • 12-Pan Capacity

Keep ingredients fresh, organized and inches from your knife. Delfield’s front-breathing Mega Top drawer base slides into the tightest cook-line spaces while its patented air screen locks in cold air—even with the lid open during a rush.

Key features

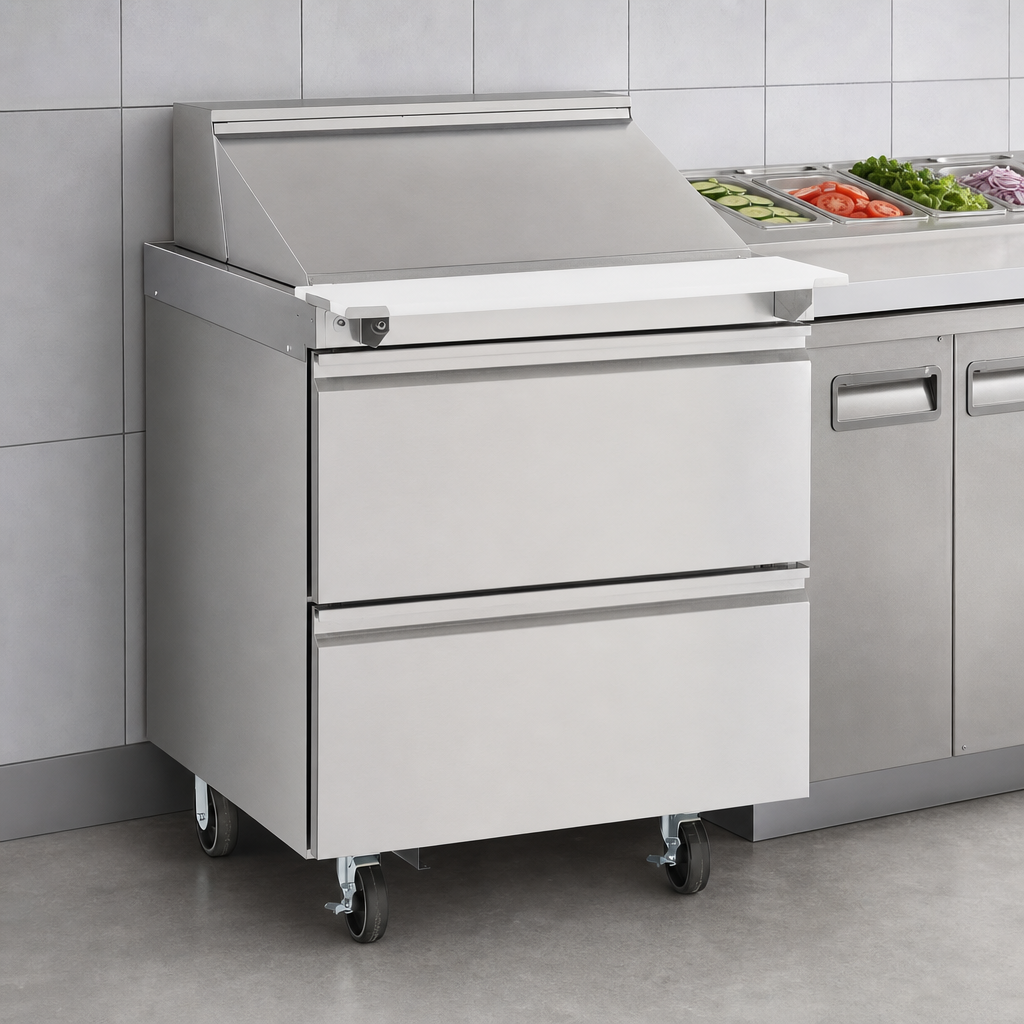

  • Front-breathing, rear-mounted refrigeration—no side or back clearance required.
  • Patented air screen keeps pan rail at 33-41 °F without drying product.
  • Includes (12) 1/6-size, 4"-deep poly pans plus positive-placement adapter bars.
  • 8"-wide, dishwasher-safe polyethylene cutting board spanned across the full 32" width.

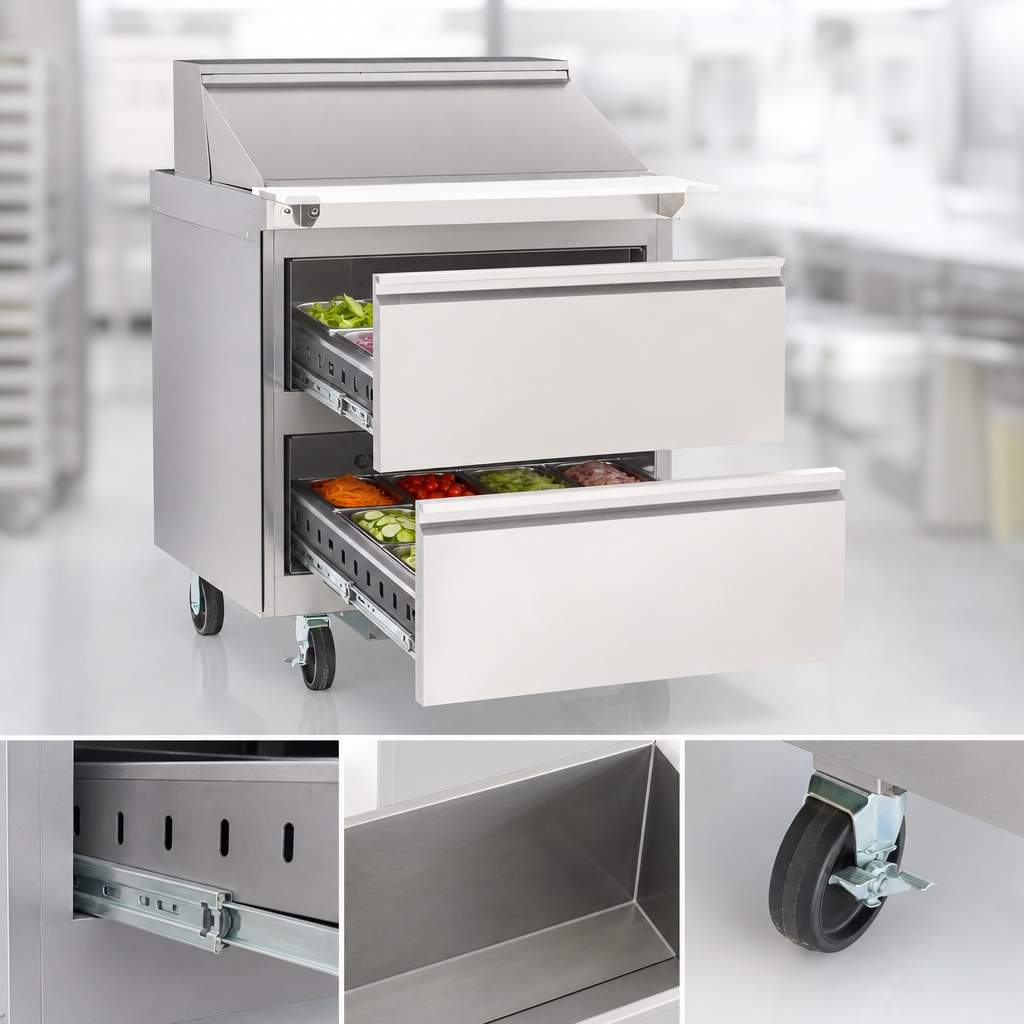

  • (2) heavy-duty drawers hold up to four 12" × 20" hotel pans; 10-year warranty on drawer tracks.
  • 22-ga stainless steel top, front & sides with dent-resistant ABS interior liners (lifetime warranty).
  • Dual-level pan brackets let you drop pans an extra inch for superior temperature holding.
  • High-efficiency R290 hydrocarbon system with 0.3 HP compressor & ACT electronic control.
  • Mounted on 5" swivel casters (front two locking) with 10' cord and NEMA 5-15P plug.
  • cULus, UL-EPH & NSF 7 listed for open food storage.
At-a-glance specs
Pan rail capacity 12 × 1/6-size, 4" deep pans (included)
Storage volume 10.10 ft³ (286 L)
Drawers 2 (top: 2 × 12" × 20" × 4–6"; bottom: 2 × 12" × 20" × 4") – pans not included
Exterior dimensions 32.13" W × 31.50" D × 44.50" H (36" to work surface)
Work surface Poly board 32" W × 8" D × 0.5" H
Temperature range Cabinet 33–40 °F | Pan rail 33–41 °F @ 86 °F ambient
Compressor 0.3 HP, front-breathing
Refrigerant R290 hydrocarbon
Electrical 115 V / 60 Hz / 1 Ph, 4.0 A, NEMA 5-15P (10' cord)
Casters 5" plate casters, front locking (2.5" floor clearance)
Construction Stainless steel exterior & ABS interior sides; foamed-in-place polyurethane insulation
Ship weight 293 lb (133 kg)
Warranty 3-yr parts & labor • 5-yr compressor • 10-yr drawer tracks • Lifetime ABS liners
Perfect for
  • Pizzerias and sandwich shops craving maximum cold storage in minimal space.
  • Quick-serve or ghost-kitchens that need equipment to sit flush against walls.
  • Food trucks or cafés looking for energy-efficient R290 refrigeration.

Installation note: Maintain an unobstructed airflow path under and out the front of the unit to keep your warranty intact.

Features & Specs

Manufacturer

Delfield

Brand_name

Mega Top

Certifications

NSF, UL

Height

44.5in

Width

32.13in

Depth

31.5in

Shipping Weight

293.0lbs

Width (side - side)

32" - 35" wide

Pan Capacity (Top)

12 pan

Refrigeration

self-contained, rear mounted

Access Type

drawers

Sections

1 section

Compressor Style

front breathing

Exterior Finish

stainless steel front, top & sides

No of Drawers

2 drawers

Specifications

Mega Top Refrigerator, single-section, 32" W, 10.10 cubic feet, (2) drawers, stainless steel top with polyethylene cutting board & (12) 1/6 size plastic pans, ABS interior sides, stainless steel front & sides, 5" casters, front-breathing rear-mounted refrigeration system, R290 Hydrocarbon refrigerant, 0.3 hp, cUL, UL, NSF
