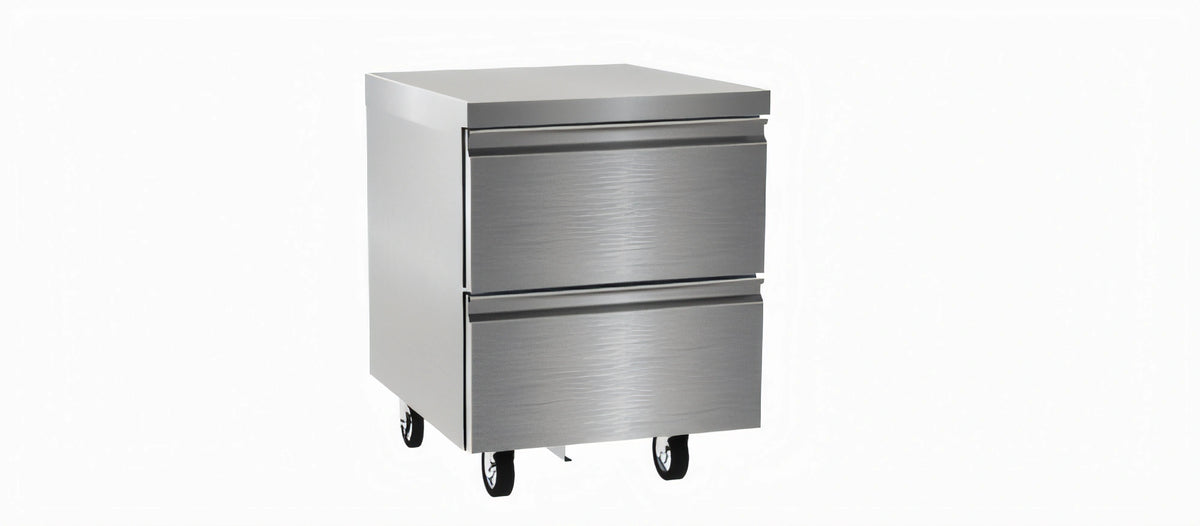

Delfield D4424NP 24-Inch One-Section Refrigerated Worktop Undercounter with 2 Drawers, Stainless Steel, Self-Contained
- Dimensions
- 24.0"W × 31.5"D × 36.0"H
- Product type
- Refrigerated worktop/undercounter
- Sections
- 1 section
- Access type
- Drawers
- Number of drawers
- 2
- Exterior finish
- Stainless steel top, front and sides
Specifications
Description
The Delfield D4424NP is a single-section refrigerated worktop/undercounter with two drawers and self-contained, rear-mounted refrigeration.
- 24-inch-wide cabinet with a stainless steel top, front, and sides.
- Front-breathing design for placement against a wall, in a cabinet, or in an existing lineup.
- Maintains an interior temperature of 33°F to 41°F.
- Uses R290 refrigerant and operates on 115 V, 60 Hz, single-phase power.
- Mounted on 5-inch plate casters with front locking brakes.
Overall Dimensions:
24.0"W x 31.5"D x 36.0"HProduct Weight:
300.0 lbSingle-section drawer configuration
Provides one refrigerated section with two drawers.

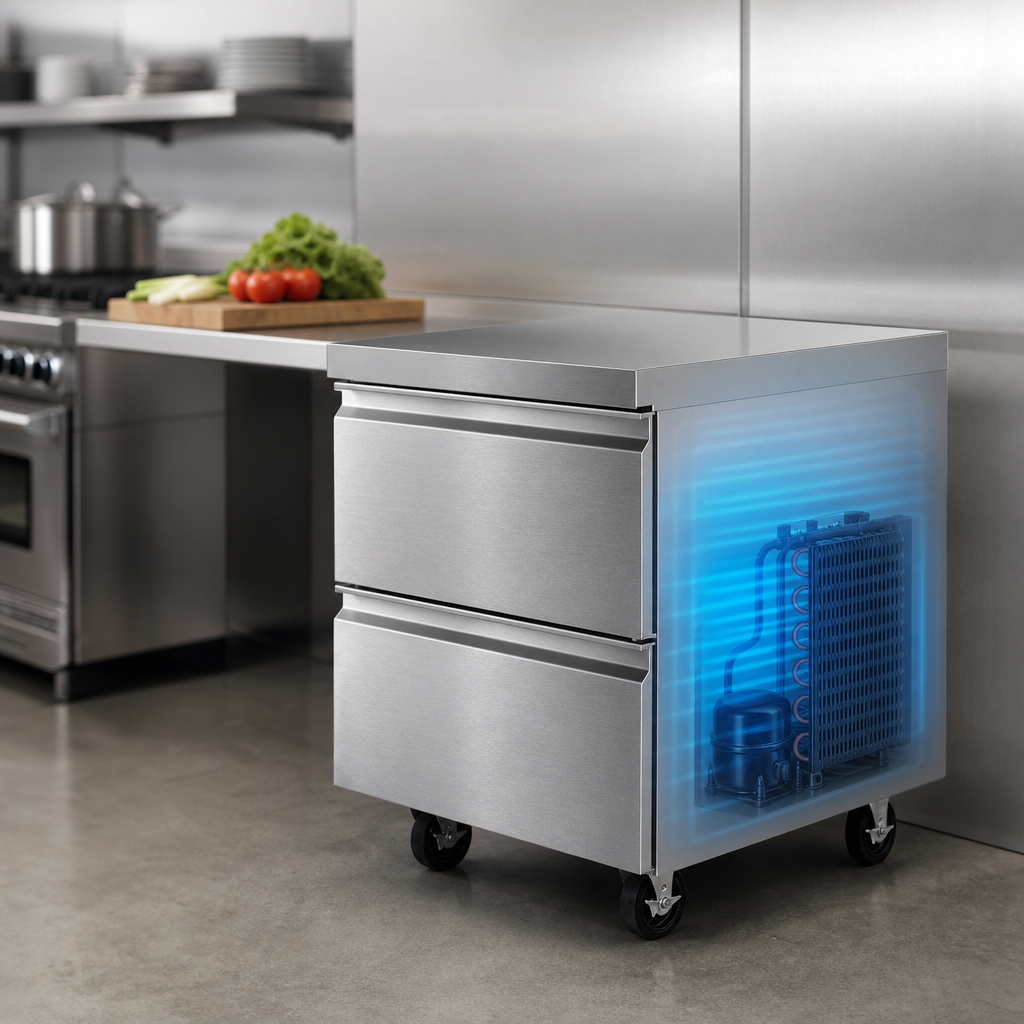

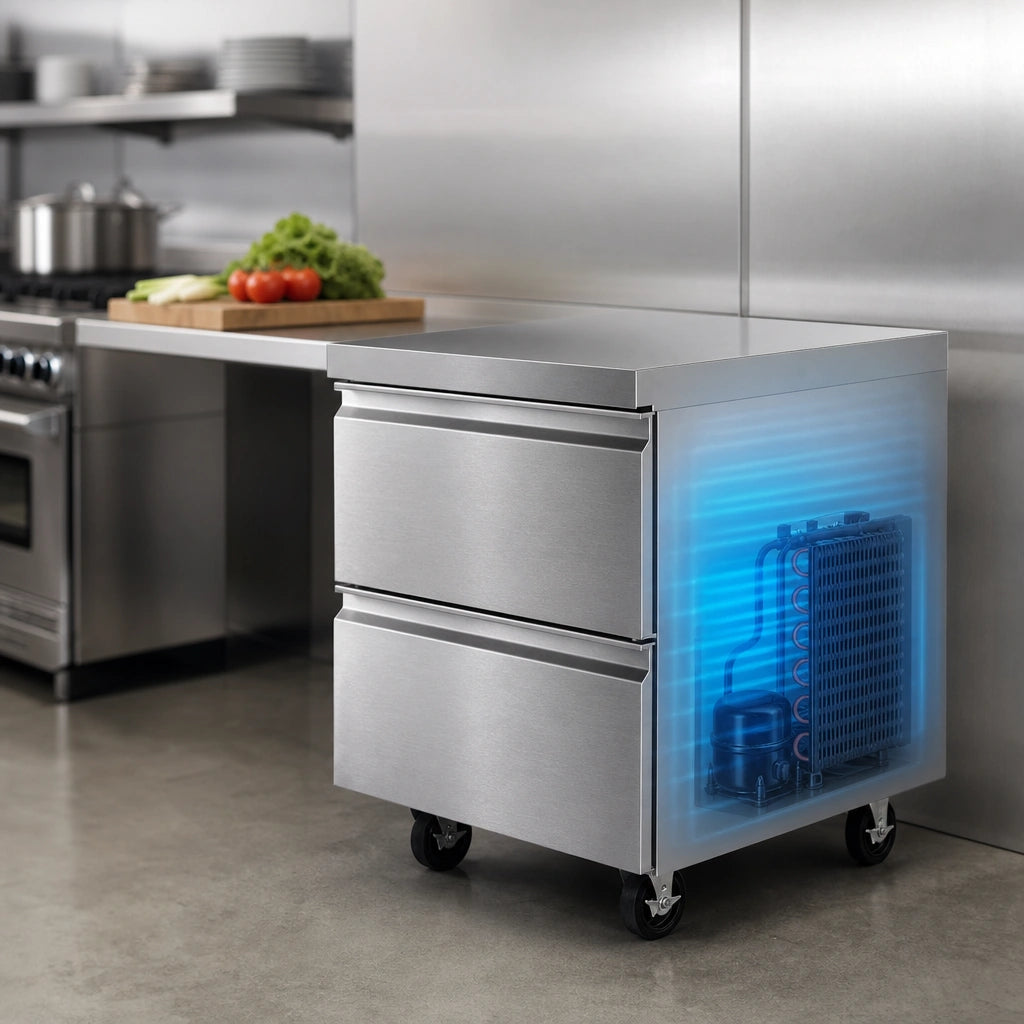

Self-contained refrigeration
The refrigeration system is self-contained with the condenser coil and hot gas condensate evaporator mounted on the rear of the cabinet.
Stainless steel exterior
The top, front, and sides have a stainless steel finish.
Front-breathing design
The 4400 Series front-breathing design allows placement against a wall, in a cabinet, or in an existing lineup.
Temperature range
The cabinet maintains an interior temperature of 33°F to 41°F.
R290 refrigerant
The refrigeration system uses R290 refrigerant.

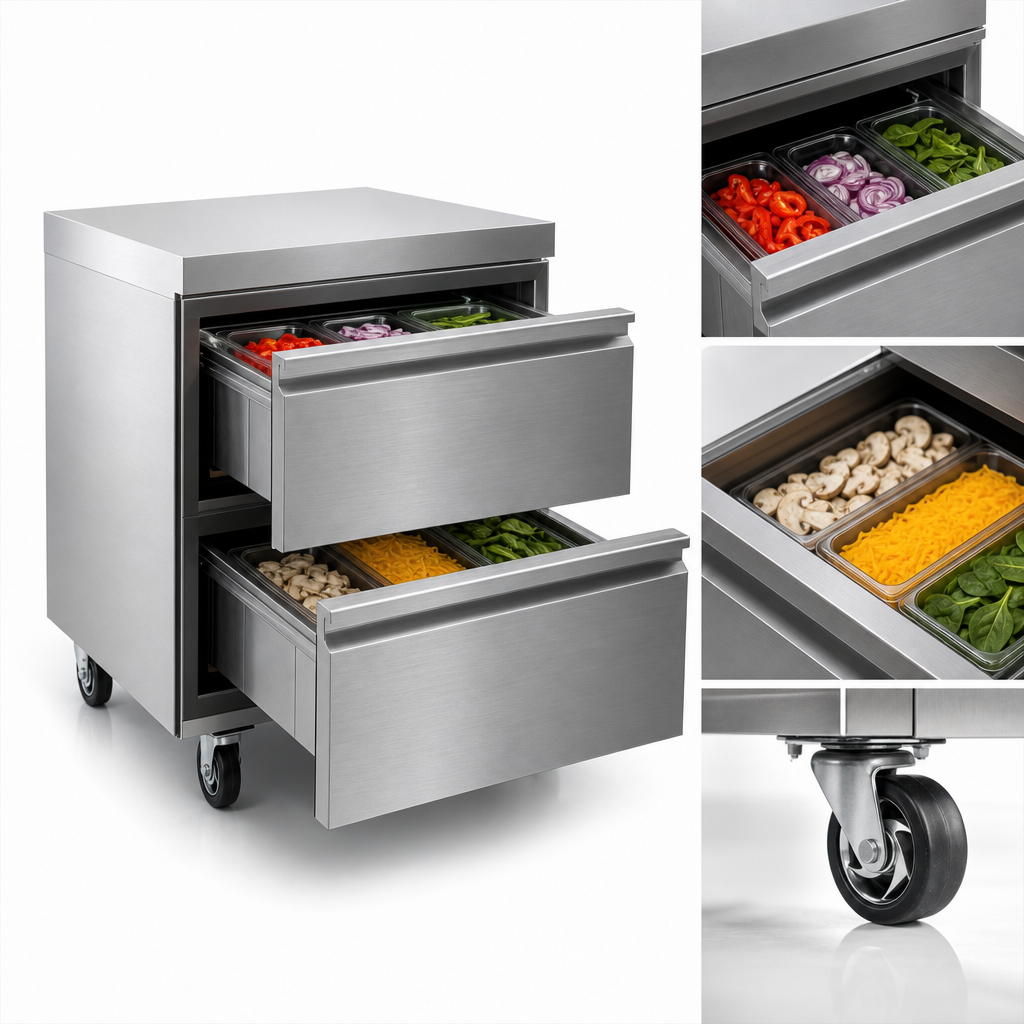

Drawer pan layout
The top drawer holds one full-size 12 x 20-inch pan 4 to 6 inches deep and three 1/9-size pans. The bottom drawer holds one full-size 12 x 20-inch pan and three 1/9-size pans 4 inches deep. Pans are supplied by others.
Caster configuration
The unit is mounted on 5-inch plate casters with front locking brakes.
