Delfield | SKU:
CV15E

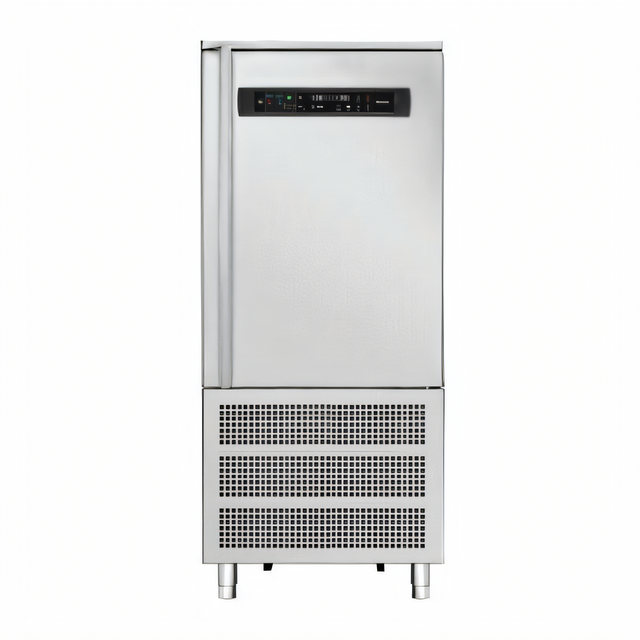

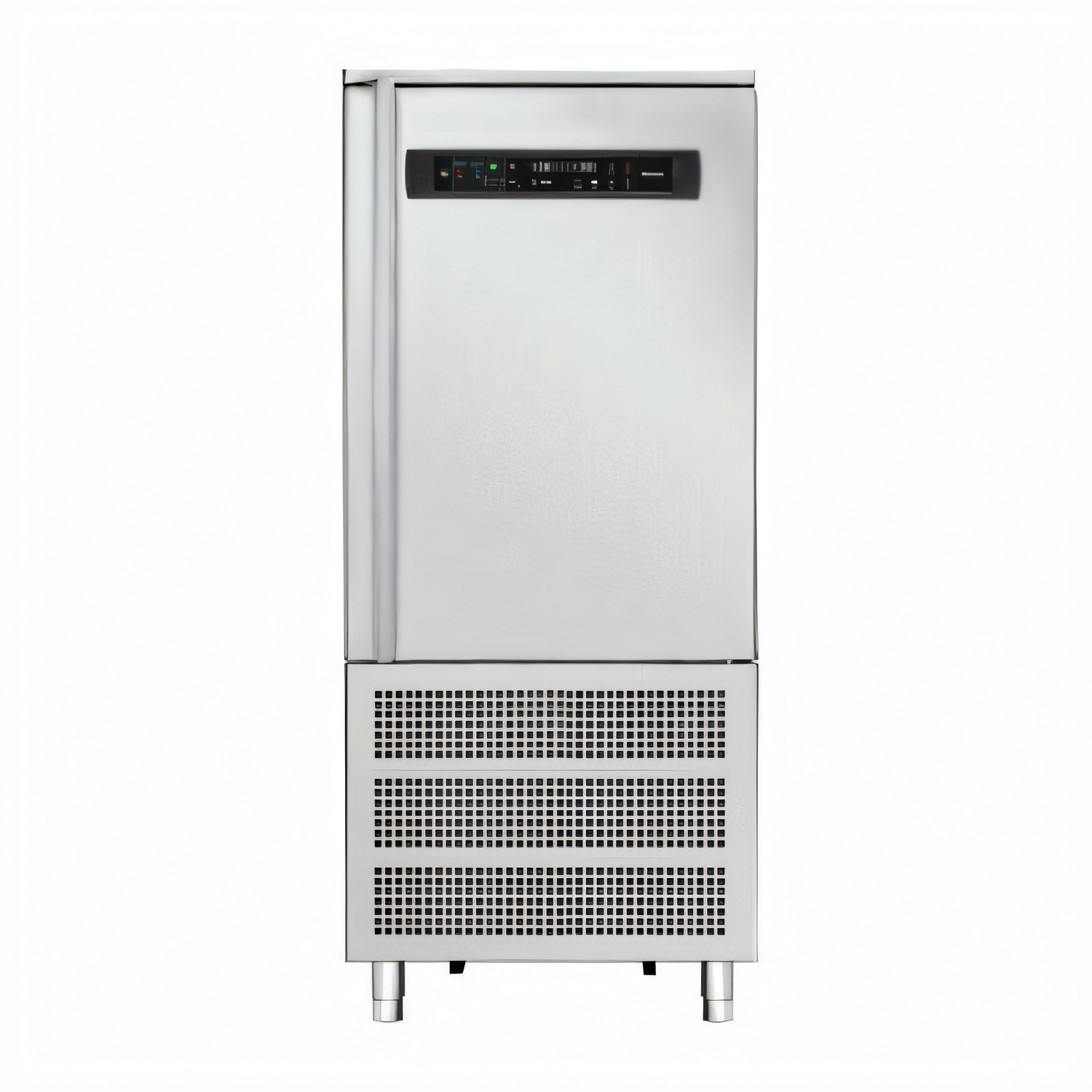

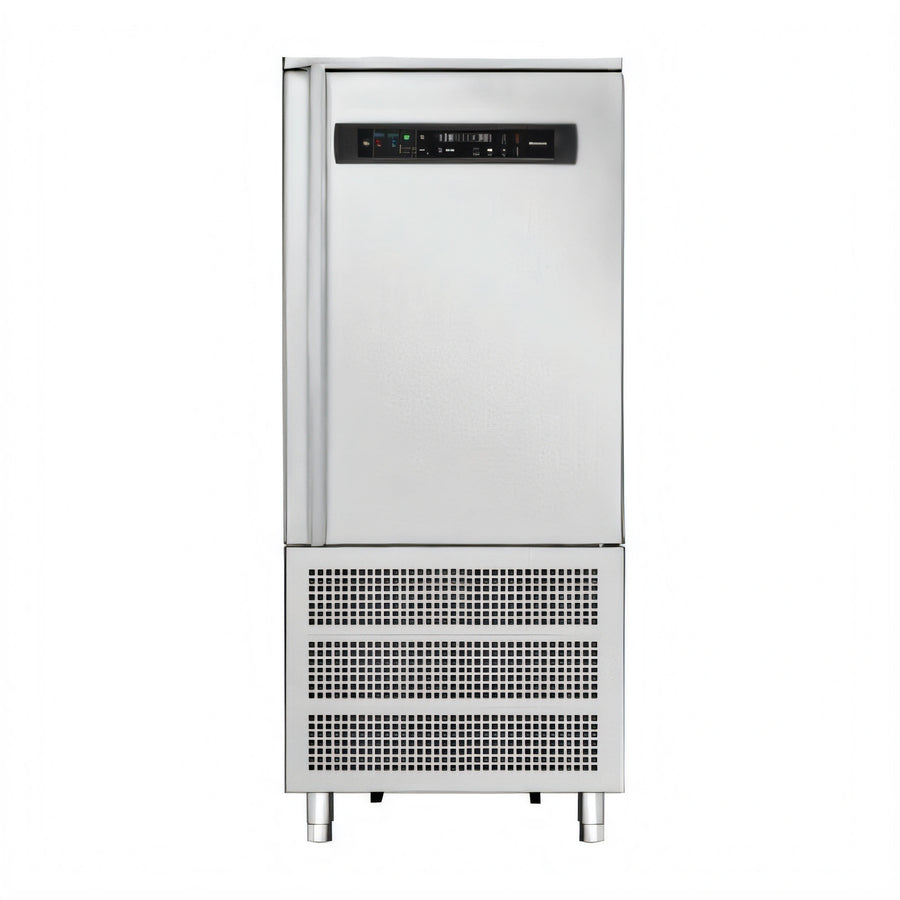

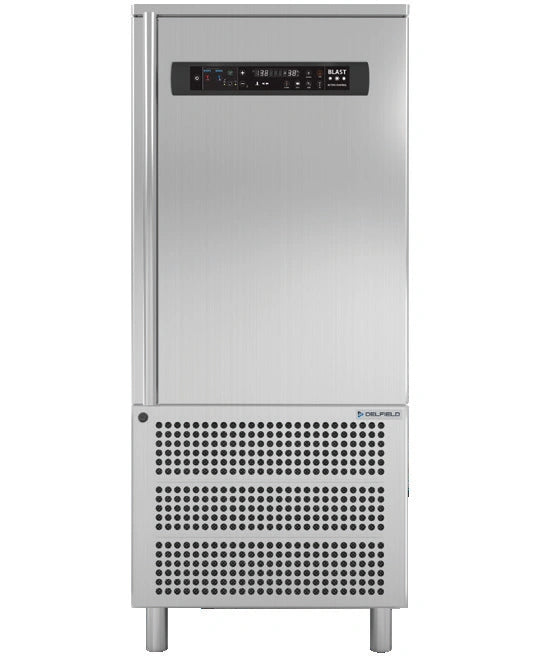

Delfield CV15E Blast Chillers & Freezers
$37,585.50
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Delfield CV15E Blast Chillers & Freezers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield CV15E Blast Chillers & Freezers
$37,585.50
Unit price
/
Unavailable
Description
Delfield CV15E Blast Chiller / Shock Freezer
15-Pan Reach-In | 143 lb Chill / 110 lb Freeze Capacity | Self-ContainedProtect product quality, extend shelf life and stay HACCP-compliant with the power and precision of Delfield’s CV15E. This single-section reach-in rapidly pulls food temperatures down from +194 °F, giving you a safer, more efficient kitchen workflow in one space-saving cabinet.
Why You’ll Love It
- High volume throughput – blast chill up to 143 lbs or shock freeze 110 lbs per load.

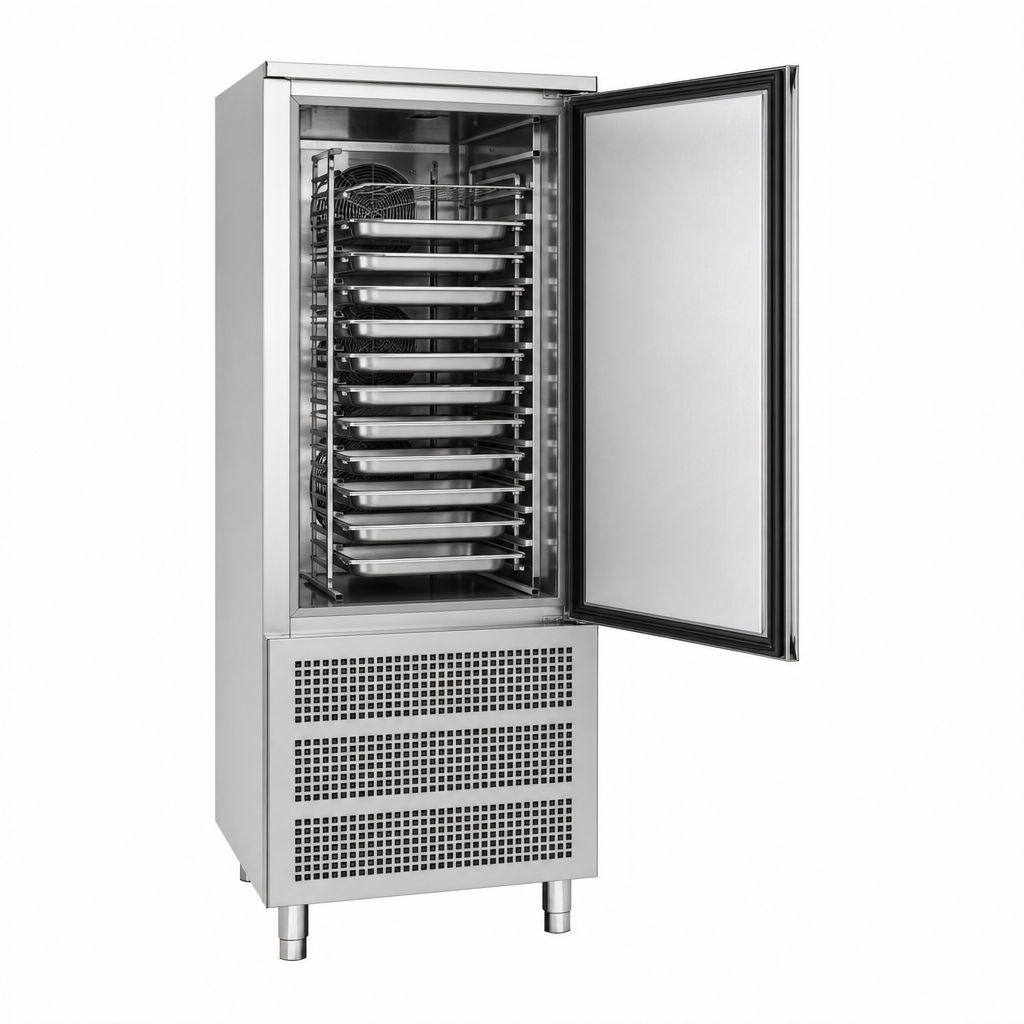

- Flexible pan storage – holds 15 standard 12 " × 20 " hotel pans (or GN 1/1 equivalents).
- 8 automatic cycles – 4 chilling and 4 freezing programs, plus continuous mode, thawing & dedicated ice-cream cycle.
- Intuitive capacitive-touch controller with alphanumeric display, color-coded status lights and one-touch cycle start.
- Built-in HACCP memory – records critical temperatures; export data instantly via integrated USB port.
- Hot-gas defrost returns the unit to “ready” status in minutes without manual intervention.
- Durable all-stainless construction inside & out for a hygienic, easy-to-clean cabinet.
- Self-contained, bottom-mounted refrigeration (3.6 HP) charged with eco-friendly R404A.
- Legs included; optional caster kit and ozone-sanitizing cycle available.
- Certified to cETLus & ETL Sanitation standards.
Performance & Capacities
- Chill: +194 °F → +37.4 °F (+90 °C → +3 °C) in ≤90 minutes
- Freeze: +194 °F → –0.4 °F (+90 °C → –18 °C) in ≤240 minutes
- Noise level: 68 dBA (whisper-quiet for its class)
Technical Specifications
| Model | CV15E |
|---|---|
| Pan Capacity | 15 × 12 in × 20 in hotel pans |
| Blast Chill Capacity | 143 lb / 65 kg |
| Shock Freeze Capacity | 110 lb / 50 kg |
| Compressor | 3.6 HP (bottom mounted) |
| Refrigerant | R404A, 88.2 oz charge |
| Refrigeration Power | 8,460 W |
| Electrical | 208-240 V / 60 Hz / 3-Phase, 23 A MCA, 60 A MOP |
| Exterior Dimensions (W×D×H) | 33.07 " × 34.64 " × 76.85 " (840 × 880 × 1,952 mm) |
| Shipping Weight | 624 lb / 283 kg |
| Construction | All stainless steel with insulated reach-in door |
| Controller Interface | Capacitive touch with USB & HACCP logging |
| Standard Defrost | Hot-gas, automatic |
Ideal Applications
- High-volume restaurants & hotels
- Institutional kitchens and commissaries
- Bakery, pastry and gelato production
- Catering operations needing rapid cool-down for safe transport
Installation note: This unit requires a hard-wired 3-phase electrical connection and at least 4.72 " (120 mm) of rear clearance for proper ventilation.
Always install and service refrigeration equipment with a licensed professional.
Need it mobile or sanitized between cycles? Ask about the factory-approved caster kit and ozone sanitizing option.
Features & Specs
Features & Specs
Manufacturer
Delfield
Certifications
cETLus
Height
78.74in
Width
33.07in
Depth
36.61in
Shipping Weight
624.0lbs
Refrigeration
self-contained refrigeration
Steam Table Pan Capacity
(15) 15" x 20" pans
Food Capacity, Weight
100 - 149 lbs
Specifications
Blast Chiller/Shock Freezer, reach-in, single section, (15) 12" x 20" pan capacity, 143 lbs blast chill or 110 lbs shock freeze capacity, capacitive touch control, hot gas defrost, USB, HACCP memory, stainless steel construction, self-contained bottom mounted refrigeration, legs, 3-3/5 HP, R404a, 208-240v/60/3-ph, 8460 watts, cETLus
