Delfield  |  SKU: CTP 8160-NBP

Delfield CTP 8160-NBP Refrigerated Prep Tables

$5,737.50
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Manual-service & installation Warranty sheet
Related Searches
Refrigerated Prep Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

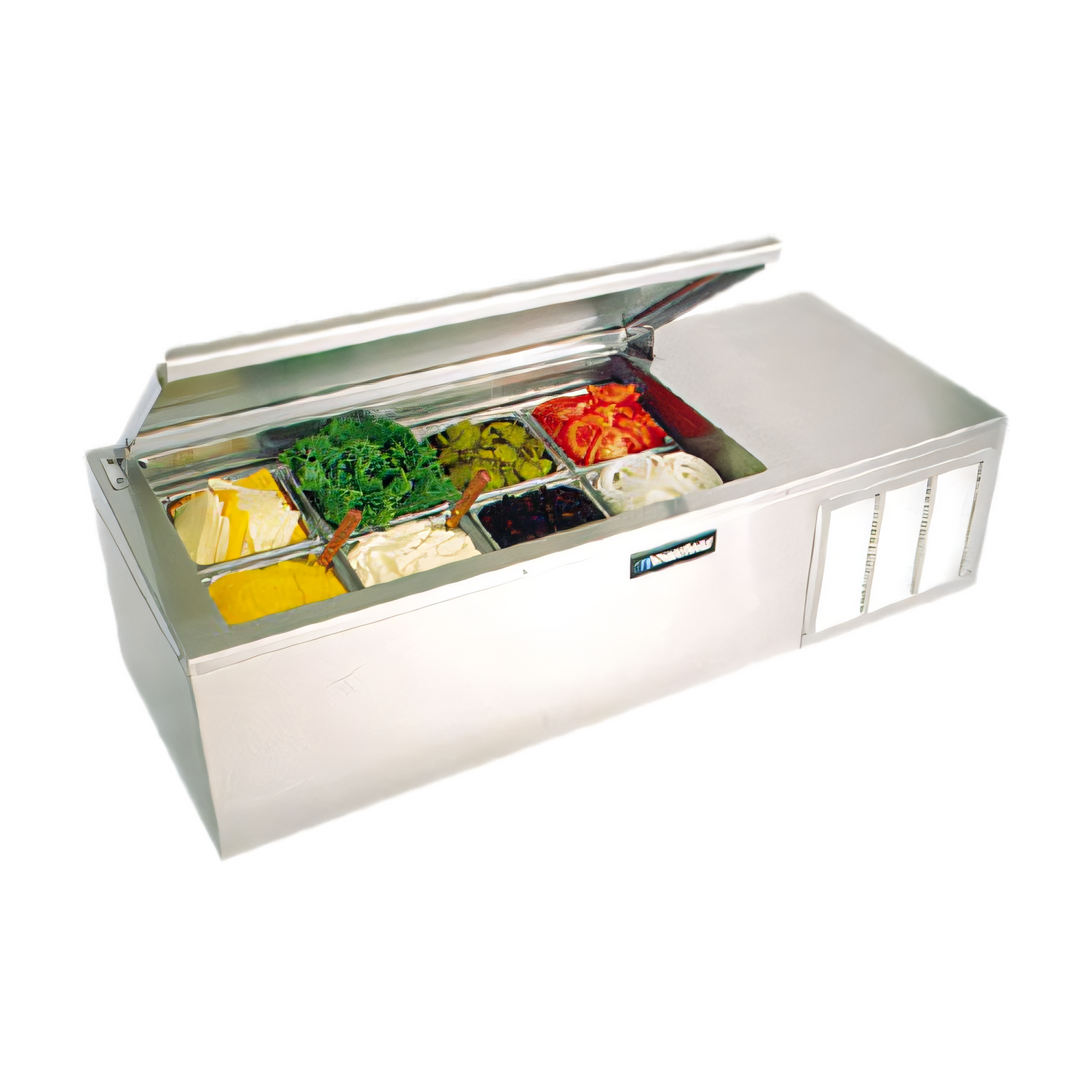

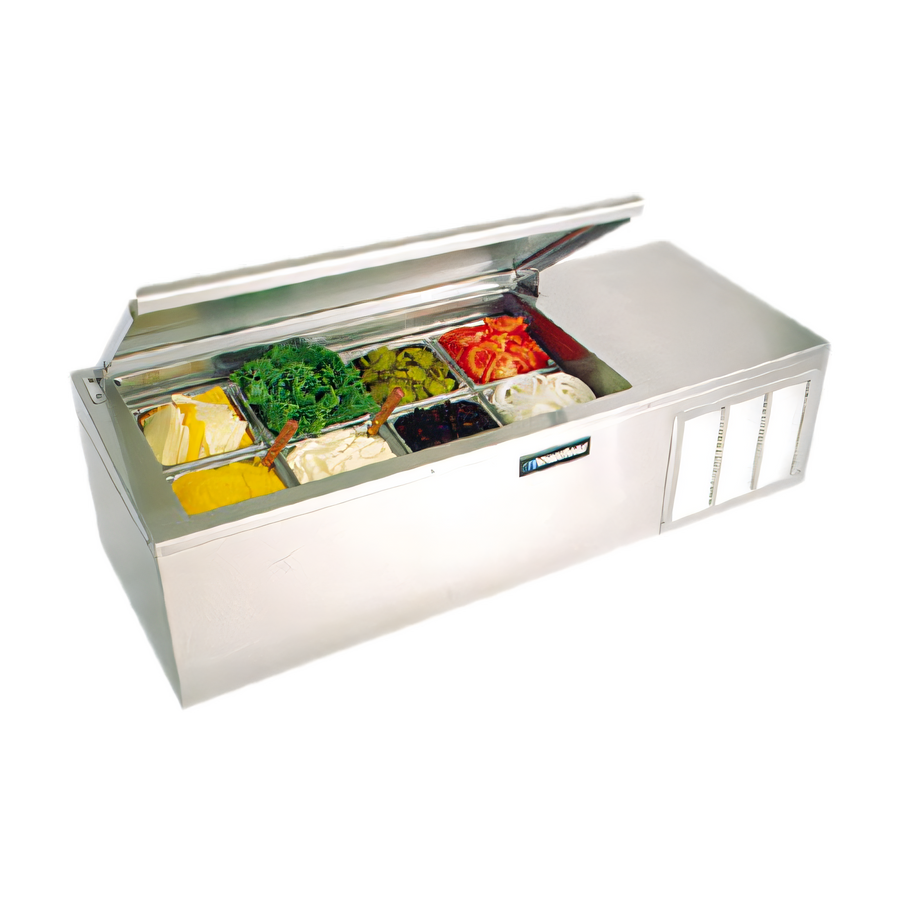

Delfield CTP8160-NBP 60" Countertop Refrigerated Condiment Rail

Raised 2" pan recess · holds six 1/3-size pans · self-contained R290 refrigeration

Keep your cold ingredients safely within reach. The Delfield CTP8160-NBP delivers reliable, energy-efficient countertop refrigeration—perfect for sandwich, salad, pizza or bar service.

Key Features

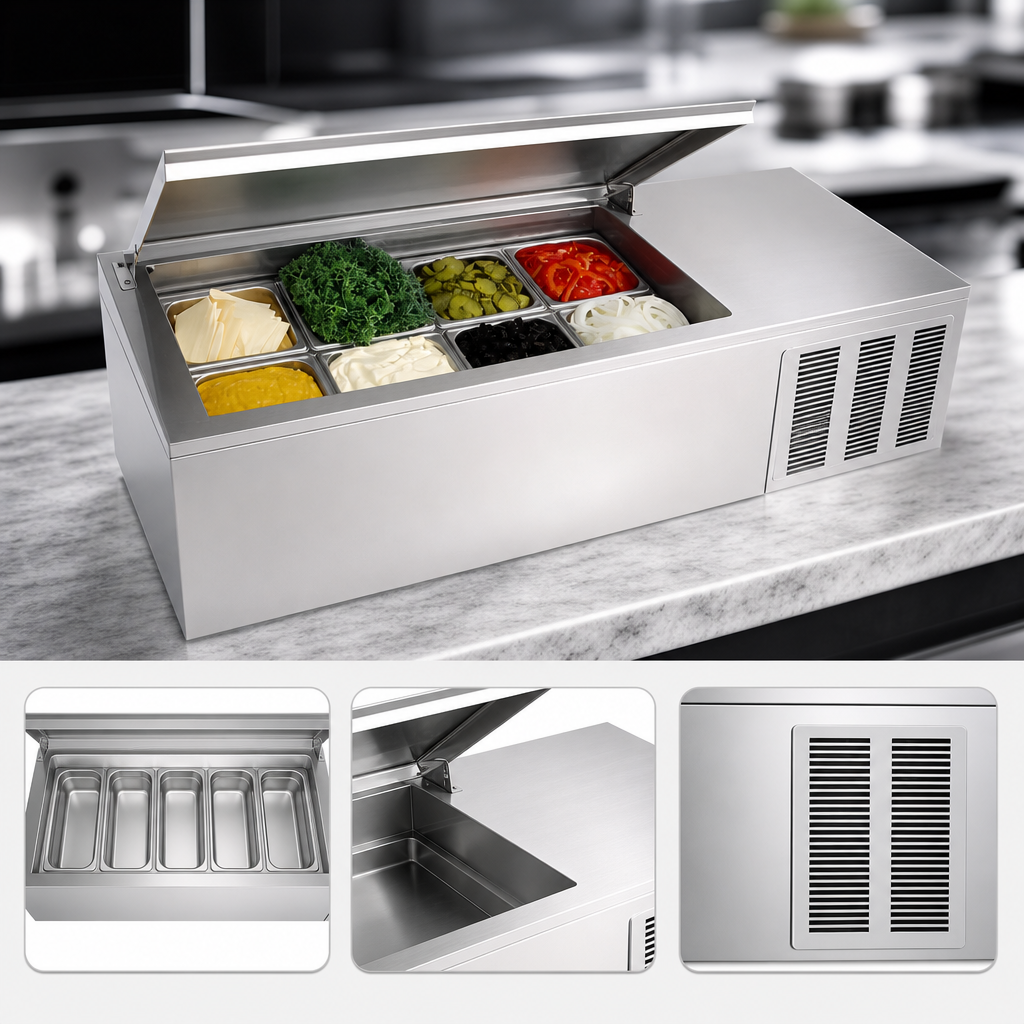

  • 60" raised rail with a 2" recessed pan area for (6) 1/3-size pans (or equivalent configuration).
  • Includes seven stainless steel adapter bars for flexible pan layouts—up to 12 × 1/6-size pans.
  • Hinged, removable stainless steel cover locks in cold when the rail is not in use.

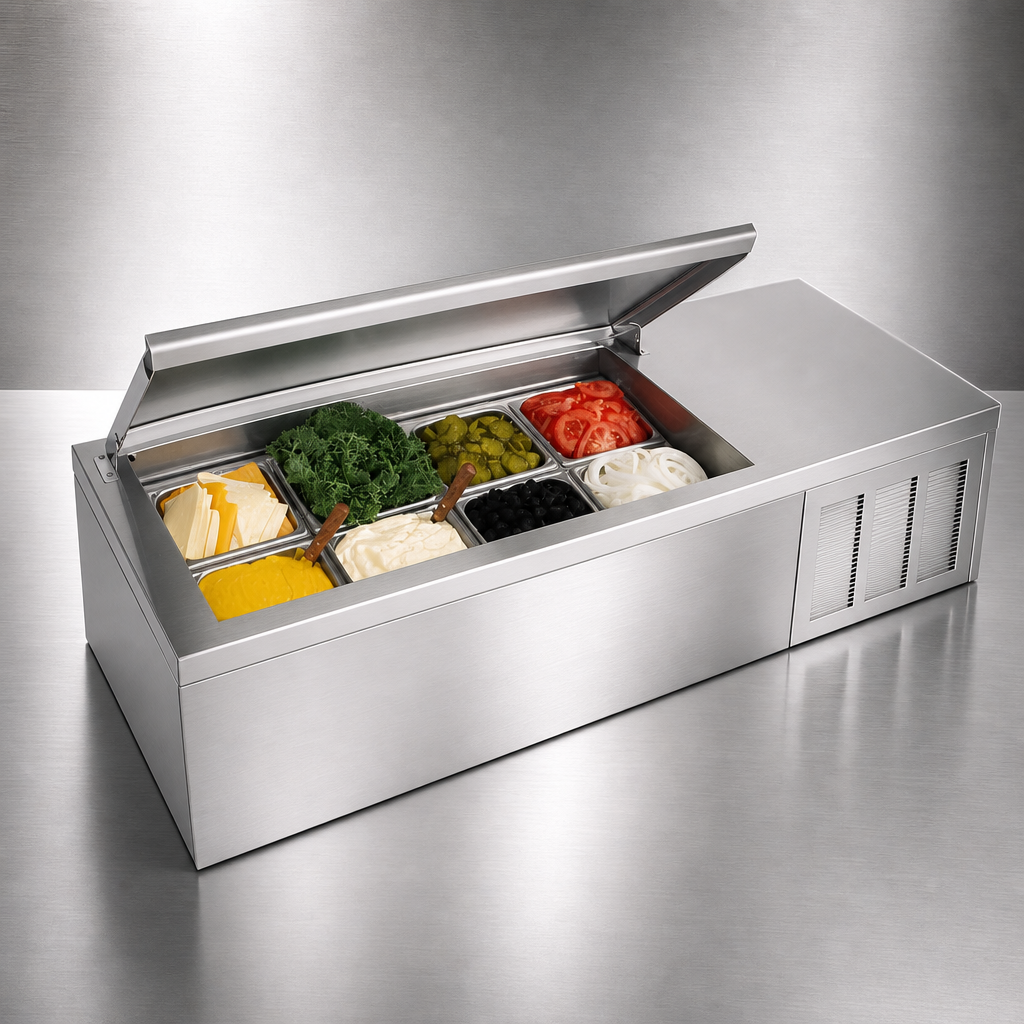

  • Durable 18-gauge stainless steel top, front and sides; 22-gauge interior liner.
  • High-density, foamed-in-place polyurethane insulation – zero ODP, zero GWP.
  • 1/5 HP self-contained refrigeration system charged with eco-friendly R290 hydrocarbon.
  • Mechanically cooled rail maintains 41 °F (5 °C) at 86 °F ambient for up to four hours.
  • Convenient on/off rocker switch located on the right end of the unit.
  • Ships ready to run with an 8' cord and NEMA 5-15P plug—no remote condenser required.
  • NSF 7, UL and cUL listed for food-safe performance.
Specifications
Model CTP8160-NBP
Pan capacity (6) 1/3-size pans · 2" recess
(or up to 12 × 1/6-size pans with adapters)
Exterior dimensions (W × D × H) 60" × 17.03" × 12.55"  (152 cm × 43 cm × 32 cm)
Compressor 1/5 HP, self-contained
Refrigerant R290 hydrocarbon
Electrical 115 V / 60 Hz / 1-phase · 2.8 A · NEMA 5-15P
BTU load / system capacity 397 BTU / 768 BTU
Shipping weight 158 lb (72 kg)
Certifications NSF 7, UL, cUL, R290
Warranty 1-year parts & labor
What’s Included
  • Delfield CTP8160-NBP refrigerated condiment rail
  • (7) stainless steel adapter bars
  • Hinged stainless steel cover
  • 8' (2.4 m) power cord with plug
  • Manufacturer’s 1-year parts & labor warranty
Important: Always pre-chill food to 37 °F (3 °C) before loading. This unit is intended for short-term holding and is not designed for overnight storage of open pans.

Looking for other sizes? Search “CTP-NBP” in our store for the full line of Delfield raised rail solutions.

Features & Specs

Manufacturer

Delfield

Certifications

NSF, UL

Height

12.55in

Width

60.0in

Depth

17.03in

Shipping Weight

158.0lbs

Width (side - side)

55" - 60"

Pan size

1/3 size

Depth (front - back)

13" - 18"

Pan capacity

6 pan capacity

Specifications

Raised Condiment Rail, 60"W, countertop, 2" recessed pan area holds (6) 1/3 size pans, (7) adapter bars, hinged cover, stainless steel top, front & sides, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 hp, cUL, UL, NSF
