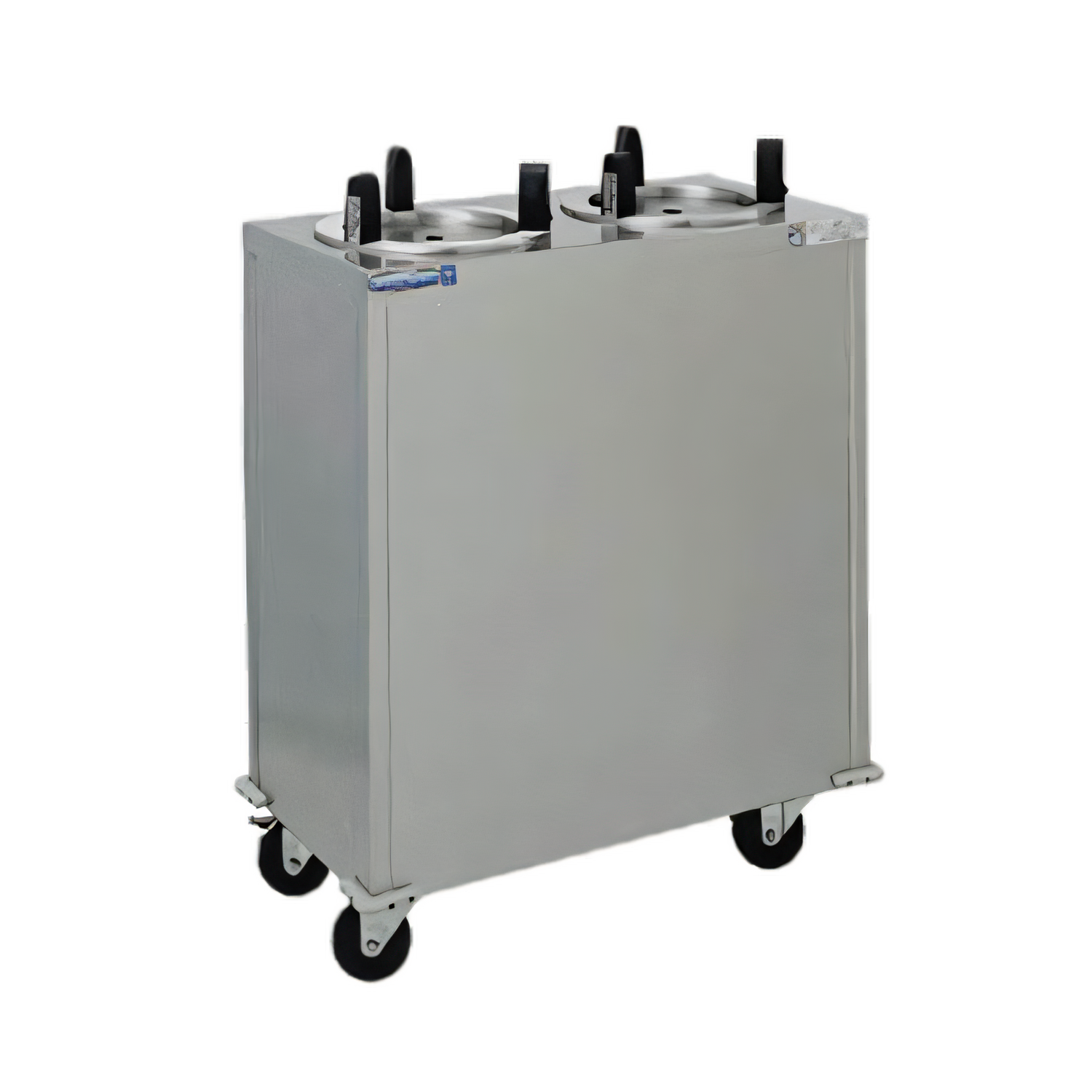

Delfield Shelleymatic® Enclosed Mobile Plate Dispenser – 10.12" Max Dish
Model CAB2-1013 | Dual Self-Elevating TubesKeep clean plates rolling to the service line without lifting, bending or restocking hassles. Delfield’s Shelleymatic® two-stack dispenser automatically raises dishes to the perfect grab-and-go height while shielding them inside a tough stainless-steel cabinet.
Key Features

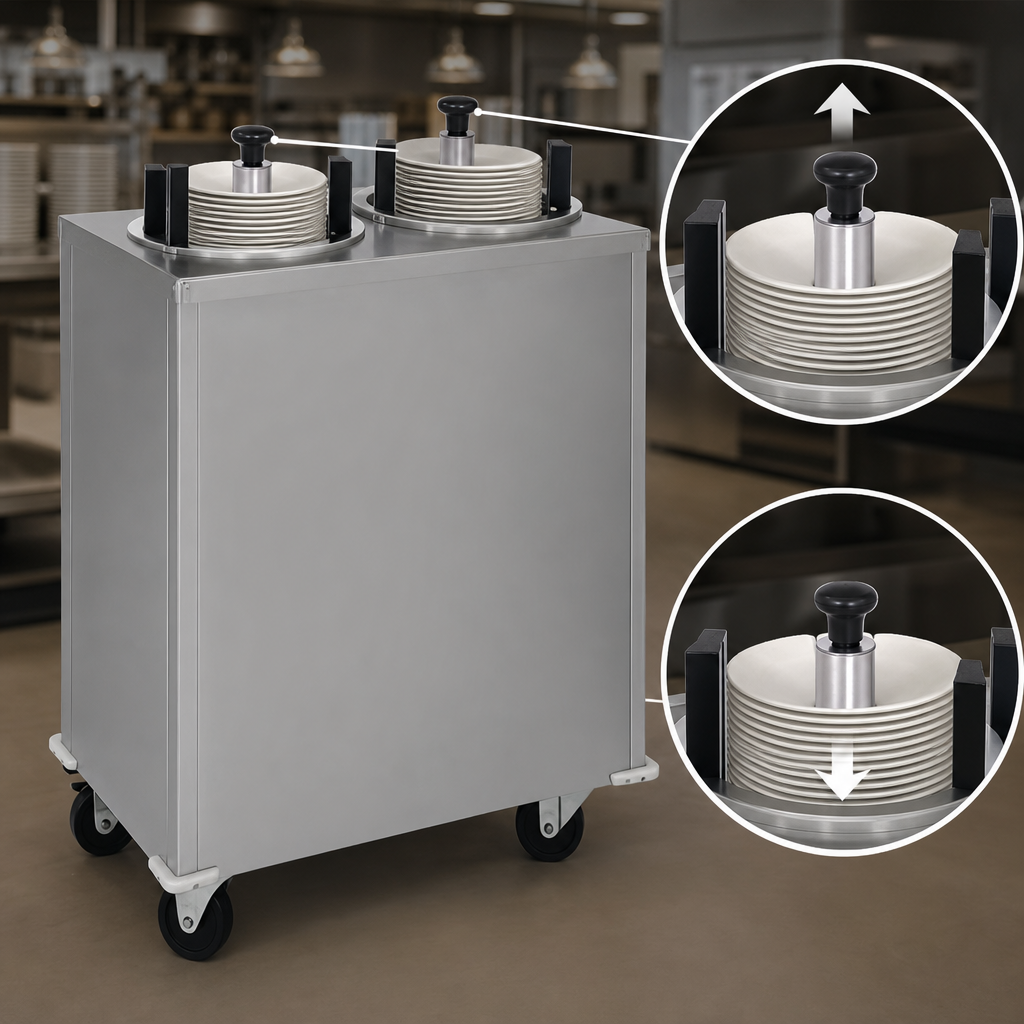

- Two fully enclosed, self-leveling tubes – ≈72 plates each (≈144 total)
- Accepts round china from 9.12"–10.12" (23–26 cm)
- Field-adjustable spring tension lets you fine-tune dispensing height in minutes
- 16-gauge stainless top with 20-gauge side panels for long-term durability
- Welded stainless flange, side channels & bottom brace create a rigid, one-piece tube
- (4) all-locking 4" polyolefin swivel casters & non-marring corner bumpers for smooth, safe mobility
- cULus & NSF listed – built to pass health-code inspections right out of the box
- Backed by Delfield’s 1 year parts / 90 day labor warranty
Ideal Applications
- High-volume cafeterias & buffets
- Hotel banquet & catering prep
- Healthcare tray make-up lines
- University & corporate dining
Specifications
| Configuration | Mobile, enclosed cabinet with (2) dish tubes |
|---|---|
| Plate Ø Range | 9.12" – 10.12" (23 – 26 cm) |
| Approx. Capacity | ≈72 plates per tube | 24" (61 cm) stack height |
| Overall Dimensions | 32.25" L × 17.00" D × 36.00" H (82 × 43 × 92 cm) |
| Casters | (4) 4" locking polyolefin swivel |
| Construction | 16-ga S/S top; 20-ga S/S body & corners; welded S/S dispenser assembly |
| Certifications | cULus, NSF |
| Warranty | 1 yr parts | 90 days labor |
Looking for built-in plate warming or larger diameters? Heated Even-Temp (ET) & Quick-Temp (QT) models are available up to 14.5". Contact us for details.
$4,486.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield CAB2-1013 Shelleymatic mobile plate dispenser: stainless steel, two self-elevating tubes, fits up to 10.12" plates, 4" casters, NSF/cUL/UL listed.
Manufacturer
Delfield
Brand name
Shelleymatic
Certifications
NSF, UL
Height
36.0in
Width
32.25in
Depth
17.0in
Shipping Weight
142.0lbs
Plate Style
round
Type
unheated
Compartment Qty
(2) compartments
Base Style
enclosed
Plate Diameter
10" - 12"
Specifications
Shelleymatic® Dispenser, Plate, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size 10.12" diameter, stainless steel construction, 4" casters, cUL, UL, NSF
