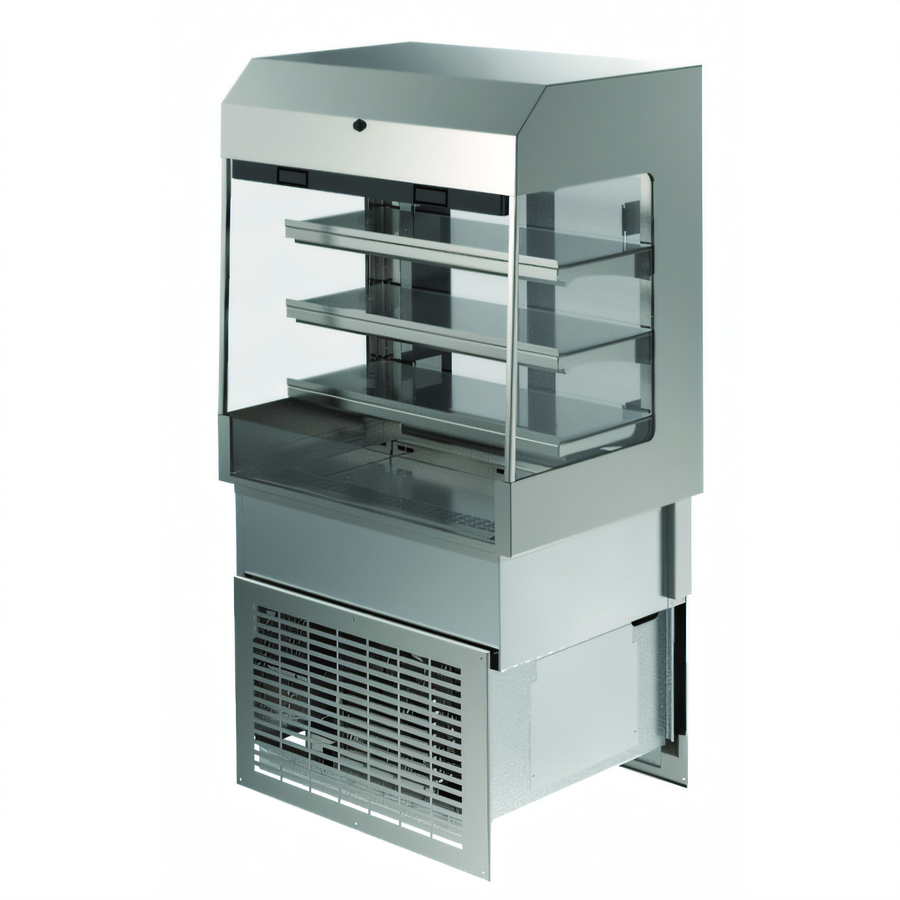

Delfield ASM-36P 36-1/4-Inch Drop-In Air Screen Refrigerated Merchandiser

SKU: ASM-36P
$27,890.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Delfield Food Displays & Merchandisers New Arrivals Restaurant Equipment

Delfield ASM-36P 36-1/4-Inch Drop-In Air Screen Refrigerated Merchandiser

Self-Contained R290 Refrigeration, Three Adjustable Glass Shelves

Merchandise chilled drinks and grab-and-go items in a compact drop-in case with bright LED lighting, adjustable shelving, and self-contained R290 refrigeration.

  • Drop-in design fits a 35.13" x 25.50" cutout for a clean built-in presentation.
  • Three adjustable 1/4" glass shelves and a recessed bottom shelf give you flexible display space.
  • Four LED lights and a locking night/security cover help showcase product and protect it after hours.
  • Self-contained, bottom-mounted R290 refrigeration supports easy service access and efficient operation.
  • Insulated sliding rear doors and included louvers help streamline loading and airflow management.

Overall Dimensions:

36.25"W x 26.0"D x 63.48"H

Product Weight:

350.0 lb

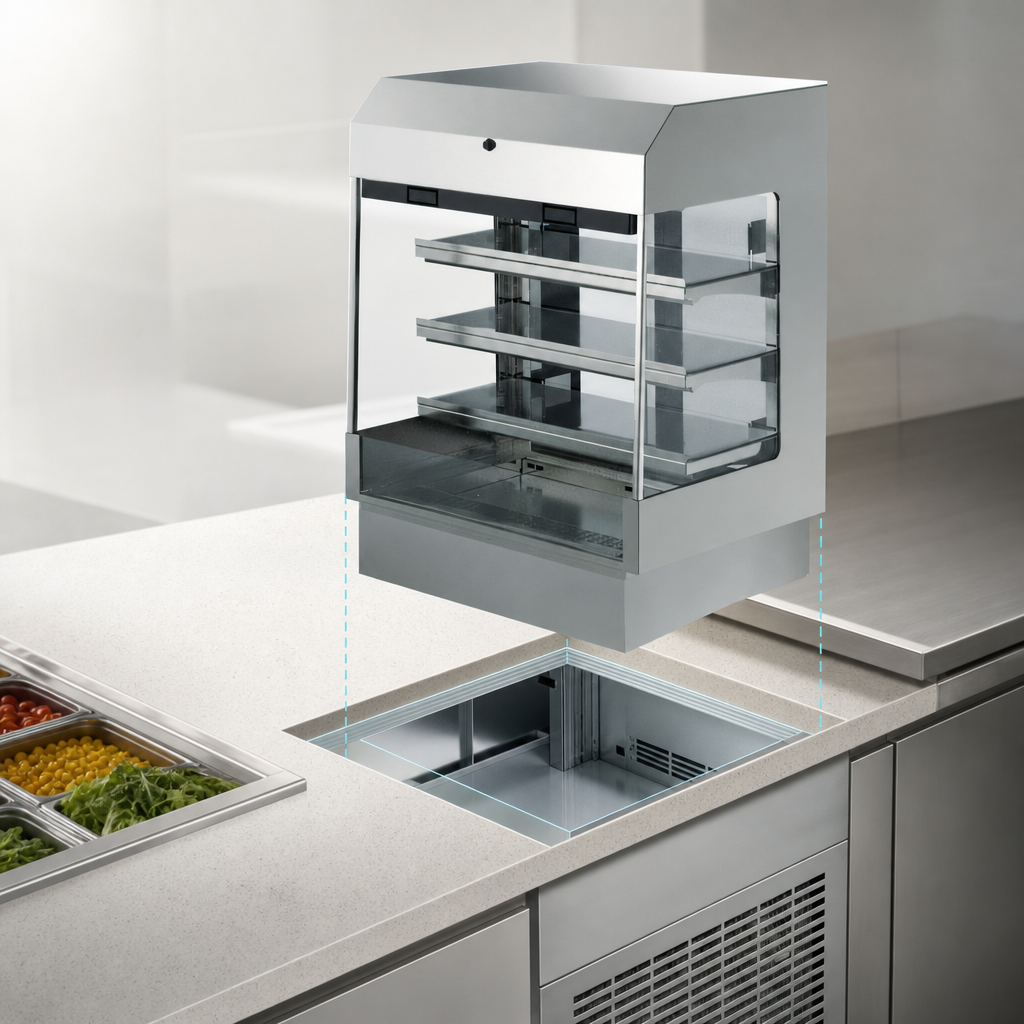

Drop-In Counter Design

Built for a 35.13" x 25.50" cutout to create a built-in refrigerated display in the counter.

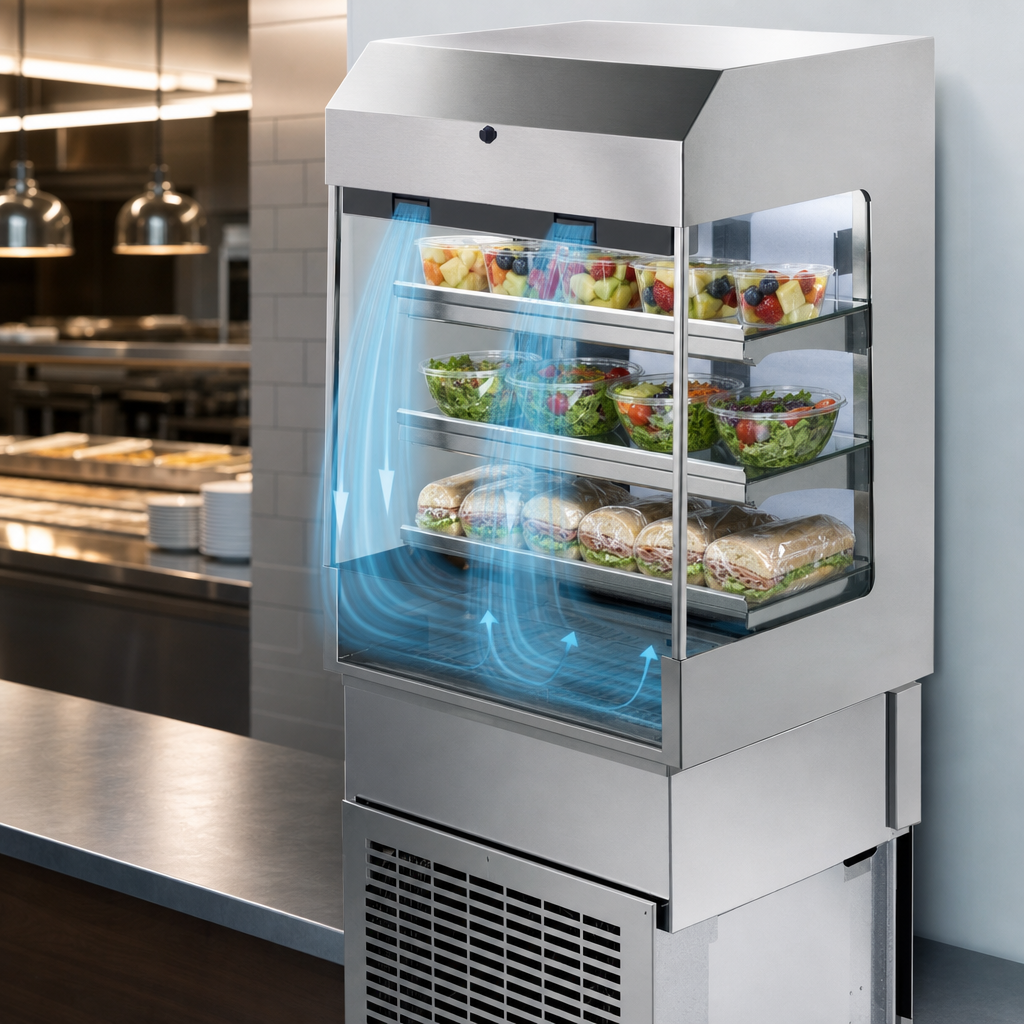

Air Screen Refrigeration

Air-circulating refrigeration helps maintain product temperatures between 36°F and 40°F in 80°F ambient conditions with 55% relative humidity.

Adjustable Glass Shelves

Three 1/4" tempered glass shelves can be positioned flat, slanted, or fully tilted for flexible merchandising.

LED Display Lighting

Four LED lights illuminate the display for better product visibility and presentation.

Recessed Bottom Shelf

A stainless steel recessed bottom pan provides additional display space and is ideal for bottles or packaged items.

Sliding Rear Access

Insulated sliding rear glass doors and a rear door lock make loading, replenishment, and access easier.

Night Security Cover

The front locking night cover helps secure merchandise after business hours.

Self-Contained R290 Refrigeration

Bottom-mounted refrigeration includes a slide-out condensing unit for easier service; hard-plumbed drainage is required, with an optional condensate evaporator available.

Type Refrigerated Merchandiser
Style Air Screen
Installation Type Drop-In
Shelf Quantity 3
Capacity 8.2 Cubic Feet
Controls Thermostatic
Refrigeration Type Self-Contained
Refrigerant Type R290
Drain Connection Required
Cord Length 9 Feet
Voltage 115/208-240 Volts
Amps 3.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 14-20P
BTU 4,492 BTU
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 37 Inches
Shipping Depth 26 Inches
Shipping Height 64 Inches
Shipping Weight 350 Lbs.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

A 35.13" x 25.50" cutout is required.
It comes standard with three 1/4" adjustable glass shelves and four LED lights.
Yes. The drain requires hard plumbing, and an optional electric condensate evaporator is available.
The unit uses 115/208-240V, 60 Hz, single-phase power, draws 3.7 amps, and comes with a NEMA 14-20P plug.
It includes a standard 1-year parts and labor warranty.
It uses R290 refrigerant.
