Delfield  |  LiquiTec  |  SKU: 8132-EFP

Delfield 8132-EFP LiquiTec Steam Tables & Food Wells

$6,677.50
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Brochure Warranty sheet
Related Searches
Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

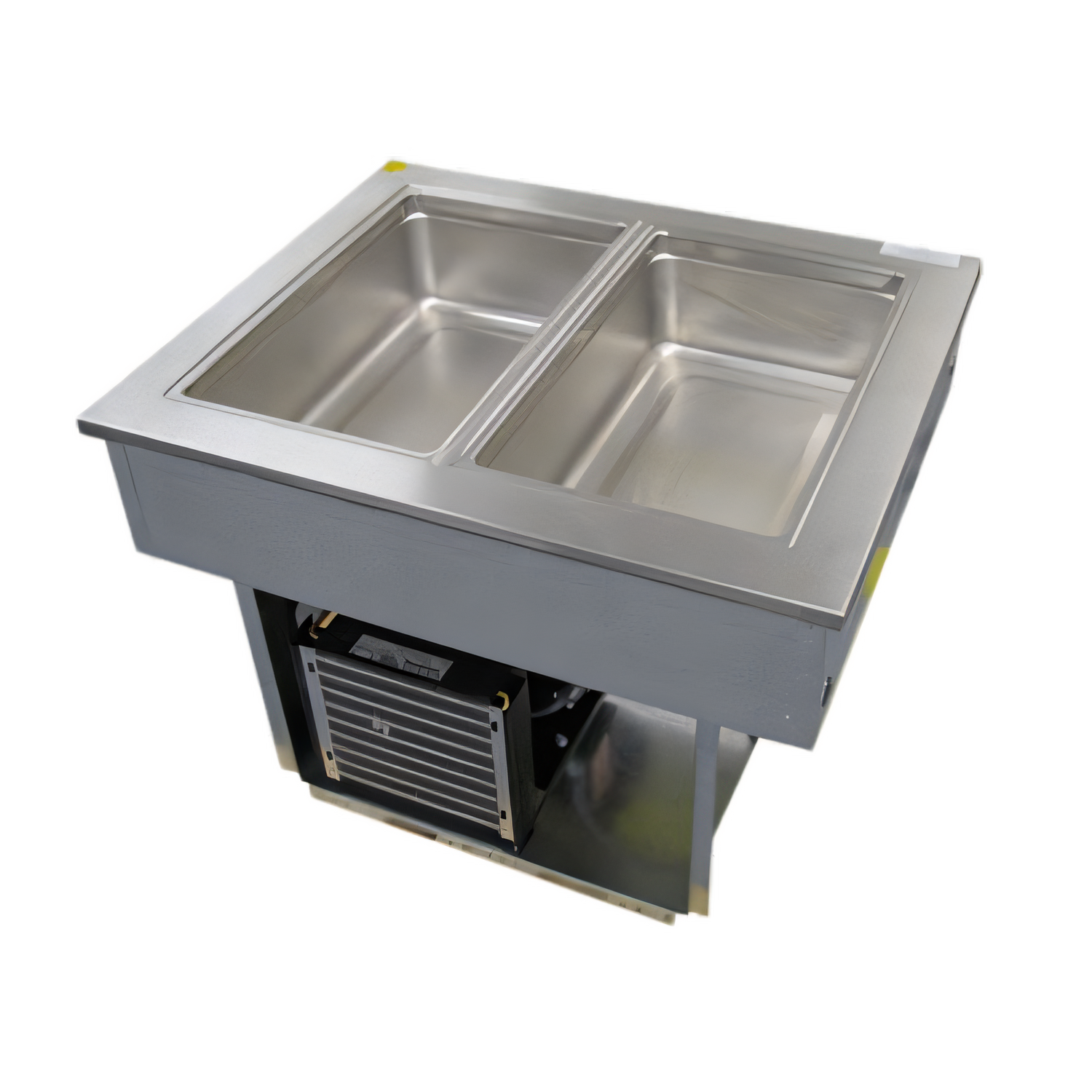

Delfield LiquiTec® 2-Pan Drop-In Refrigerated Cold Pan – Model 8132-EFP

Self-contained eutectic system | Flush-mount 12" × 20" wells | R290 refrigerant

Deliver NSF-7 cold holding performance without bulky rims, ice, or remote refrigeration. The LiquiTec® 8132-EFP surrounds each well with eutectic fluid that makes 100 % contact on all five sides of the liner, keeping product between 33 °F and 41 °F—even in 86 °F kitchens—while presenting pans level with the countertop for faster service and a cleaner look.

Why You’ll Love It

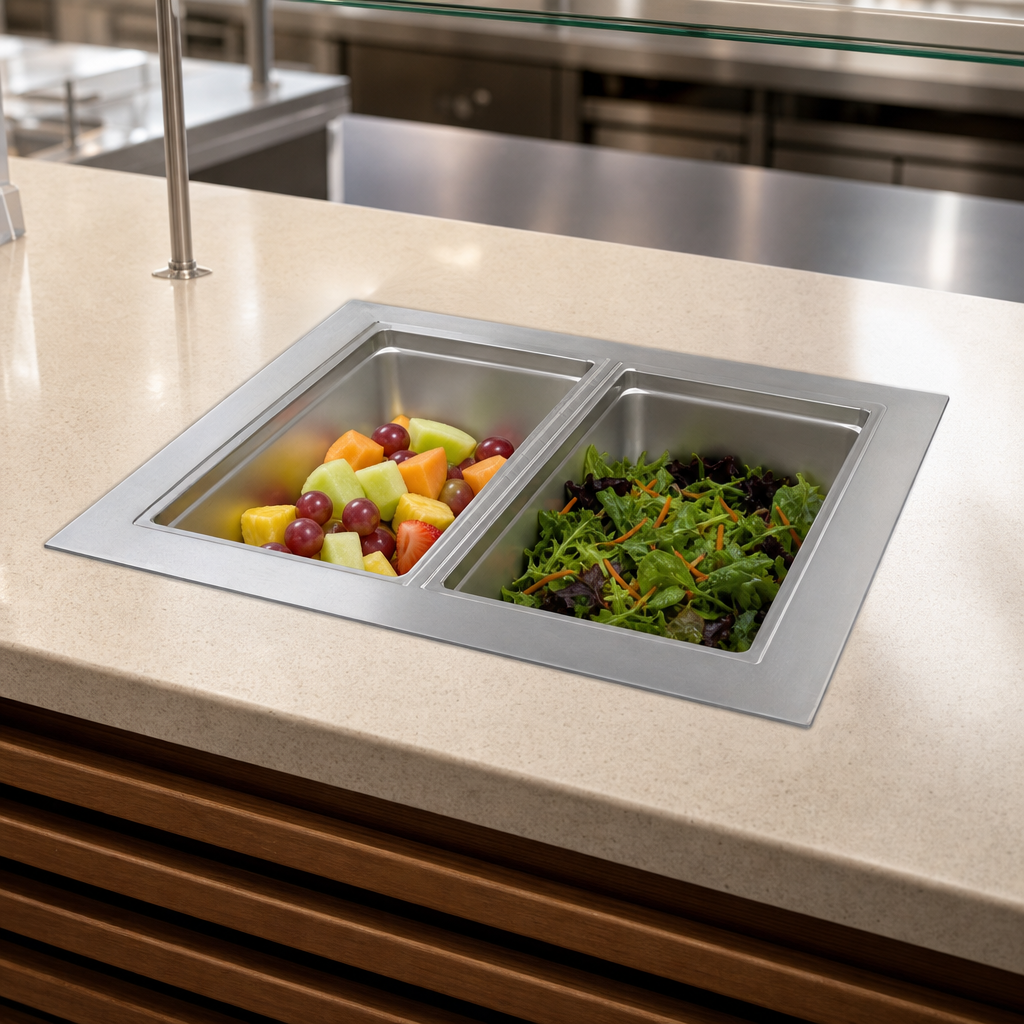

  • Flush-mount design holds two full-size 12" × 20" pans, 4" or 6" deep (pans not included).
  • LiquiTec® eutectic fluid technology provides full-contact, even cooling on every surface of the well.
  • Self-contained GreenGenius™ R290 refrigeration with 1/5 HP compressor—no remote system to install.
  • Electronic temperature control & expansion valve for precise, energy-efficient operation.
  • Stainless steel top and inner liner with non-marring press-fit gasket for true “drop-in and go” installation.
  • High-density, polyurethane insulation—Kyoto Protocol compliant, Non-ODP & Non-GWP.
  • 1/2" stainless steel drains with copper manifold speed clean-up and change-overs.
  • UL, cULus, and NSF certified for safety and sanitation.
  • 8' cord & NEMA 5-15P plug—simply drop in, plug in, and start chilling.

Technical Specs

Model 8132-EFP
Pan Capacity (2) full-size 12" × 20" pans, 4" or 6" deep
Cut-out Required 30.75" × 25" (78 cm × 64 cm)
Well Depth 6.25" (16 cm)
Product Temperature 33 °F–41 °F (1 °C–5 °C) at 86 °F ambient
Refrigerant R290 Hydrocarbon (GreenGenius™)
Compressor 1/5 HP | 408 BTU load | 856 BTU system capacity
Electrical 115 V / 60 Hz / 1 Ph, 2.4 A, NEMA 5-15P plug
Construction Stainless steel top & liner, galvanized exterior housing
Drain (2) ½" stainless drains w/ manifold
Included Stainless steel louver, press-fit gasket, 8' cord & plug
Certifications UL, cULus, NSF 7
Warranty 1-year parts & labor
Shipping Weight 225 lb (103 kg)

Popular Options & Accessories

  • Single or double-service flip-up sneeze guards
  • Remote or relocated compressor packages
  • Drain shut-off valve
  • 220 V / 50 Hz electrical (special order)
  • Additional adapter bars or custom pan sizes
Important: This unit uses flammable R290 hydrocarbon refrigerant. Installation and service must comply with all local codes and manufacturer instructions.

Pans and countertop not included. All data subject to change without notice—consult current specification sheet at time of order.

Features & Specs

Manufacturer

Delfield

Brand_name

LiquiTec

Certifications

NSF, UL

Height

24.24in

Width

31.76in

Depth

26.0in

Shipping Weight

225.0lbs

Pan Qty

2-pan

Style

self-contained refrigeration

Width (side - side)

31 - 36 inches

Pan Size

full-size (12" x 20")

Finish

stainless steel top & inner liner, galvanized outer liner

Insulation

insulated

Layout

deep

Specifications

LiquiTec® Drop-In Cool Food Unit, 2-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/5 hp, (30-3/4" x 25" cutout required), cUL, UL, NSF
