Delfield

Delfield 72-inch front-breathing three-section salad top prep table refrigerator with doors, 12-pan capacity

SKU: 4472NP-12
$7,372.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Delfield 72-Inch Front-Breathing Three-Section Salad Top Prep Table Refrigerator with Doors, 12-Pan Capacity

Self-Contained, Rear-Mounted Refrigeration, Stainless Steel, 115V

Built for busy prep lines, this 72-inch salad top refrigerator combines 12 pan capacity, front-breathing refrigeration, and stainless steel construction for flexible wall-to-wall installation.

  • Three-section, door-style salad top refrigerator with 12 1/6-size pan openings; Delfield supplies the pans and adapter bars
  • Front-breathing, self-contained design can be installed against a wall or built into a lineup
  • Stainless steel top, front, sides, and ends with durable ABS interior sides
  • 72-inch polyethylene cutting board creates a generous prep surface at the front edge
  • Rear-mounted R290 refrigeration with a 0.35 HP compressor helps maintain consistent temperatures
  • ACT solid-state control and dual-level pan brackets improve temperature holding performance
  • 5-inch casters with front locks make the unit easier to position and clean around

Overall Dimensions:

72.13"W x 31.5"D x 42.12"H

Product Weight:

461.0 lb

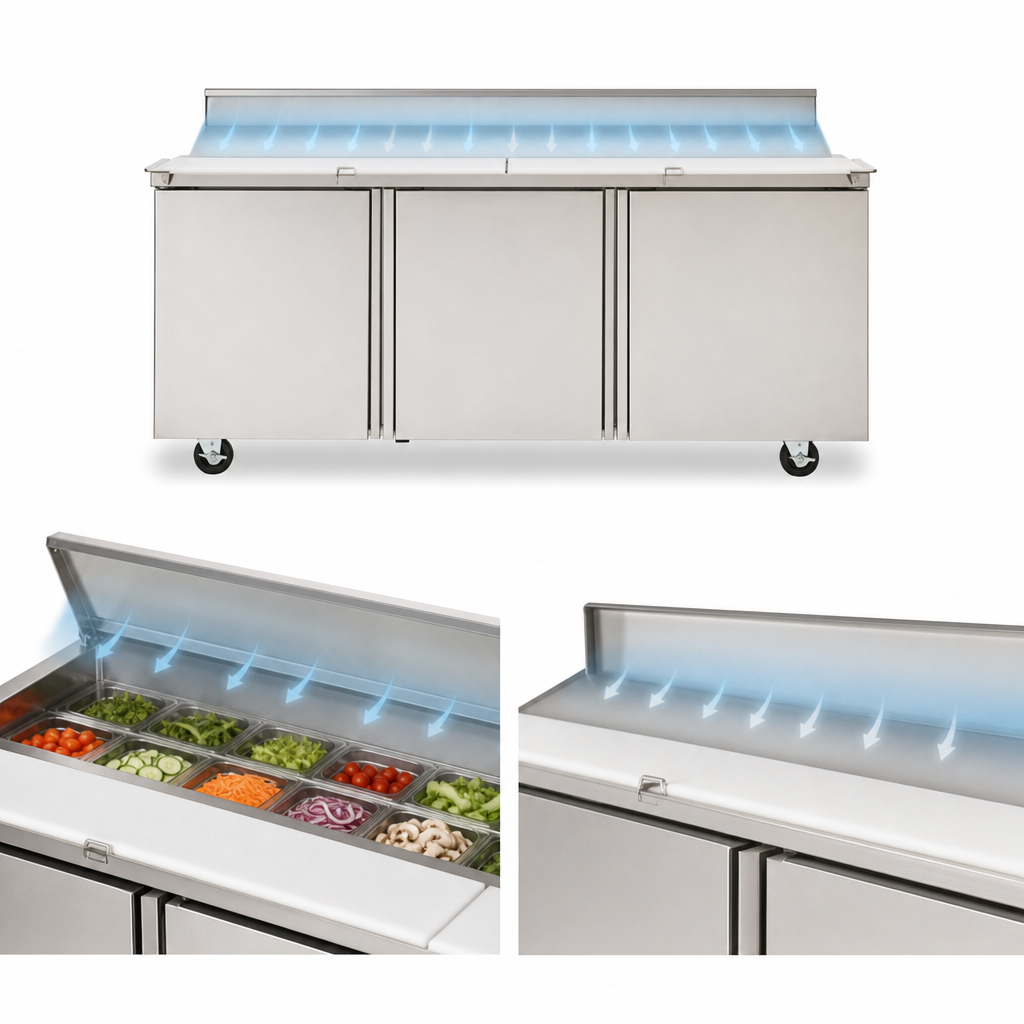

Patented Air Screen

Helps keep product cold without drying it out.

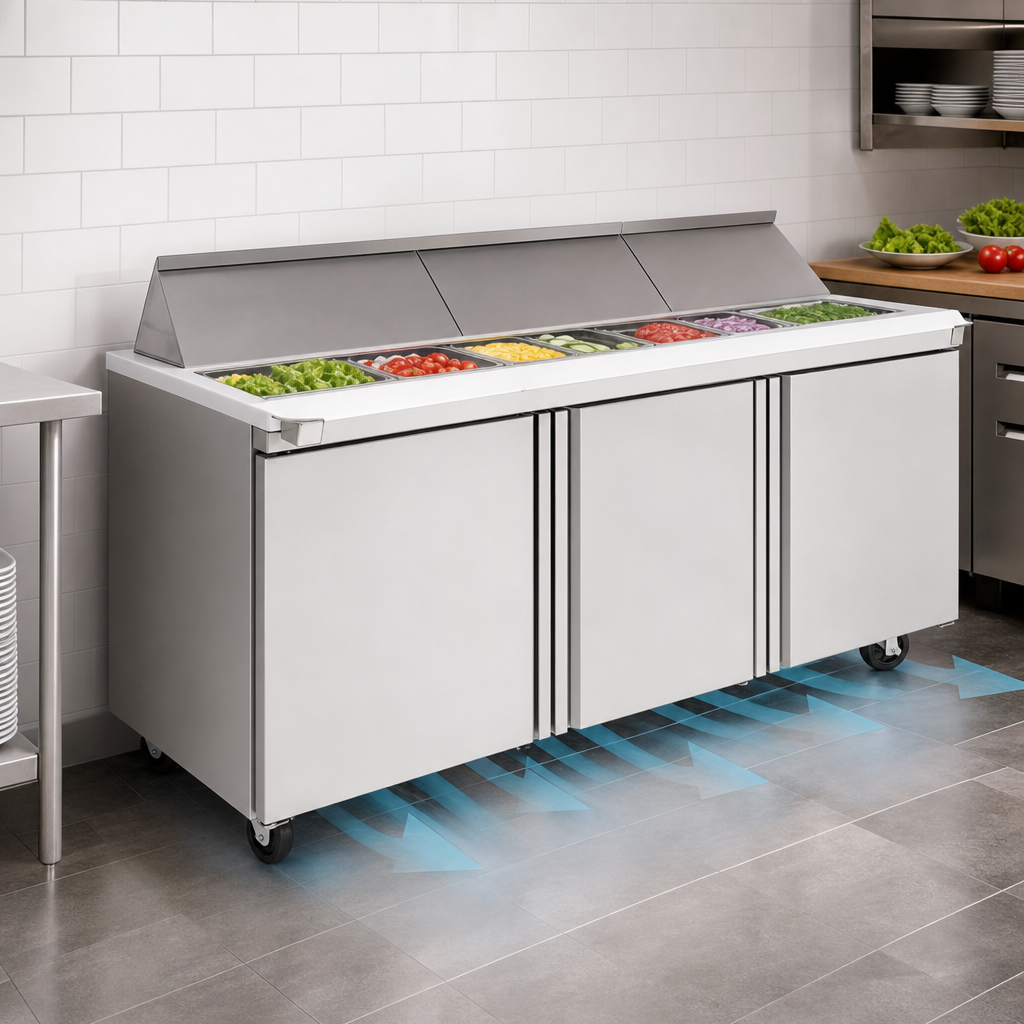

Front-Breathing Design

Self-contained refrigeration vents from the front, allowing wall or lineup installation when airflow is kept clear.

12-Pan Top Capacity

Top opening accepts twelve 1/6-size plastic pans; adapter bars and pans are supplied by Delfield.

Dual-Level Pan Brackets

Pans can be lowered an additional inch without tools for improved holding performance.

Stainless Steel Construction

22-gauge stainless steel top, front, sides, and ends provide durable exterior wear resistance.

ABS Interior Sides

Thermoformed ABS sides resist dents, chips, and corrosion.

Polyethylene Cutting Board

A 72-inch by 10-inch by 0.5-inch cutting board mounts on the front edge of the top.

Rear-Mounted R290 Refrigeration

0.35 HP compressor with rear-mounted condenser and evaporator uses R290 hydrocarbon refrigerant.

ACT Solid-State Control

Electronic control helps maintain precise cabinet temperatures in heavy-duty service.

Mobility And Shelf Storage

Mounted on 5-inch plate casters with front locks and includes one epoxy-coated wire shelf per door section.

Type Sandwich/Salad Top Refrigerator
Style Three Section
Installation Type Floor Model
Refrigeration Type Self-Contained
Pan Capacity 12 1/6 Size Pans
Capacity 24.80 Cubic Feet
Controls Solid State Electronic
Horsepower 0.35 HP
Material Stainless Steel
Interior Finish ABS Plastic
Finish Stainless Steel
Refrigerant Type R290 Hydrocarbon
Voltage 115 Volts
Amps 6.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Door Count 3
Shelf Count 3
Selling Unit Each
Units Per Case 1
Shipping Width 73 Inches
Shipping Depth 32 Inches
Shipping Height 43 Inches
Shipping Weight 461 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor, plus an additional 2-year compressor parts warranty.

Frequently Asked Questions

It is designed for 12 1/6-size pans in the top opening, and Delfield supplies the pans and adapter bars.
The unit uses a self-contained, front-breathing system with a rear-mounted condenser and evaporator, a 0.35 HP compressor, and R290 hydrocarbon refrigerant.
Yes. The front-breathing design allows wall or lineup installation as long as the airflow path under and through the unit is not blocked.
It operates on 115 volts, 60 Hz, single phase, draws 6.0 amps, and comes with a NEMA 5-15P plug and 10-foot cord.
The top opening is designed to maintain 33°F to 41°F, and the cabinet maintains 36°F to 40°F under normal conditions.
The product literature lists a three-year parts and labor warranty, plus an additional two-year compressor parts warranty.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
