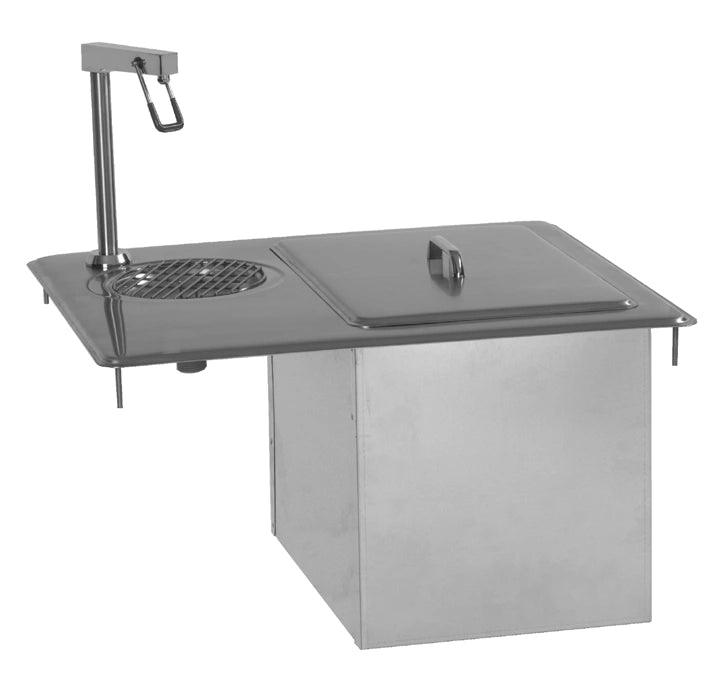

Delfield 204-P Drop-In Single-Service Water and Ice Station with Pitcher Filler, 45 lb Ice Storage
Delfield 204-P Drop-In Single-Service Water and Ice Station with Pitcher Filler, 45 lb Ice Storage
Stainless Steel Top, Galvanized Steel Exterior Tank
A compact drop-in beverage station that combines a pitcher filler with insulated 45 lb. ice storage in a durable stainless steel and galvanized steel build.
- Drop-in water and ice station designed for single-service beverage areas.
- Pitcher filler model provides dedicated fill access for pitchers and containers.
- Insulated ice chest stores up to 45 lb. of ice.
- 18-gauge stainless steel top includes a chrome-plated wire strainer.
- One-piece lift-off cover, ABS liner, and foam insulation support easy access and thermal retention.
- Galvanized steel exterior tank and bottom drain support dependable installation.
Overall Dimensions:
24.0"W x 21.0"D x 26.35"HProduct Weight:
47.5 lbPitcher Filler
13.5-inch high pitcher filler over a die-stamped drain opening for convenient pitcher service.
Ice Storage Capacity
Insulated ice bin holds up to 45 pounds of ice.
Stainless Steel Top
18-gauge stainless steel top with a raised die-stamped opening and 1.37-inch overhang.
Chrome-Plated Wire Strainer
Built-in strainer helps catch debris at the drain opening.
Lift-Off Cover with Handle
One-piece 20-gauge stainless steel cover provides easy access to the ice bin.
Insulated Ice Bin Liner
High-impact ABS plastic liner with coved corners and high-density polyurethane foam insulation.
Galvanized Steel Exterior Tank
Durable galvanized steel exterior construction.
Bottom Drain and Cold Water Connection
Includes a 1-inch drain plumbed out the bottom and a 1/2-inch I.P.S. cold water connection.
Cutout Requirement
Requires a 21-inch by 17.75-inch cutout for installation.
Certifications & Compliance
Warranty & Protection
1-year limited warranty
