Delfield 204 Ice & Water Dispensers
Delfield 204 Ice & Water Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield 204 Ice & Water Dispensers
Description

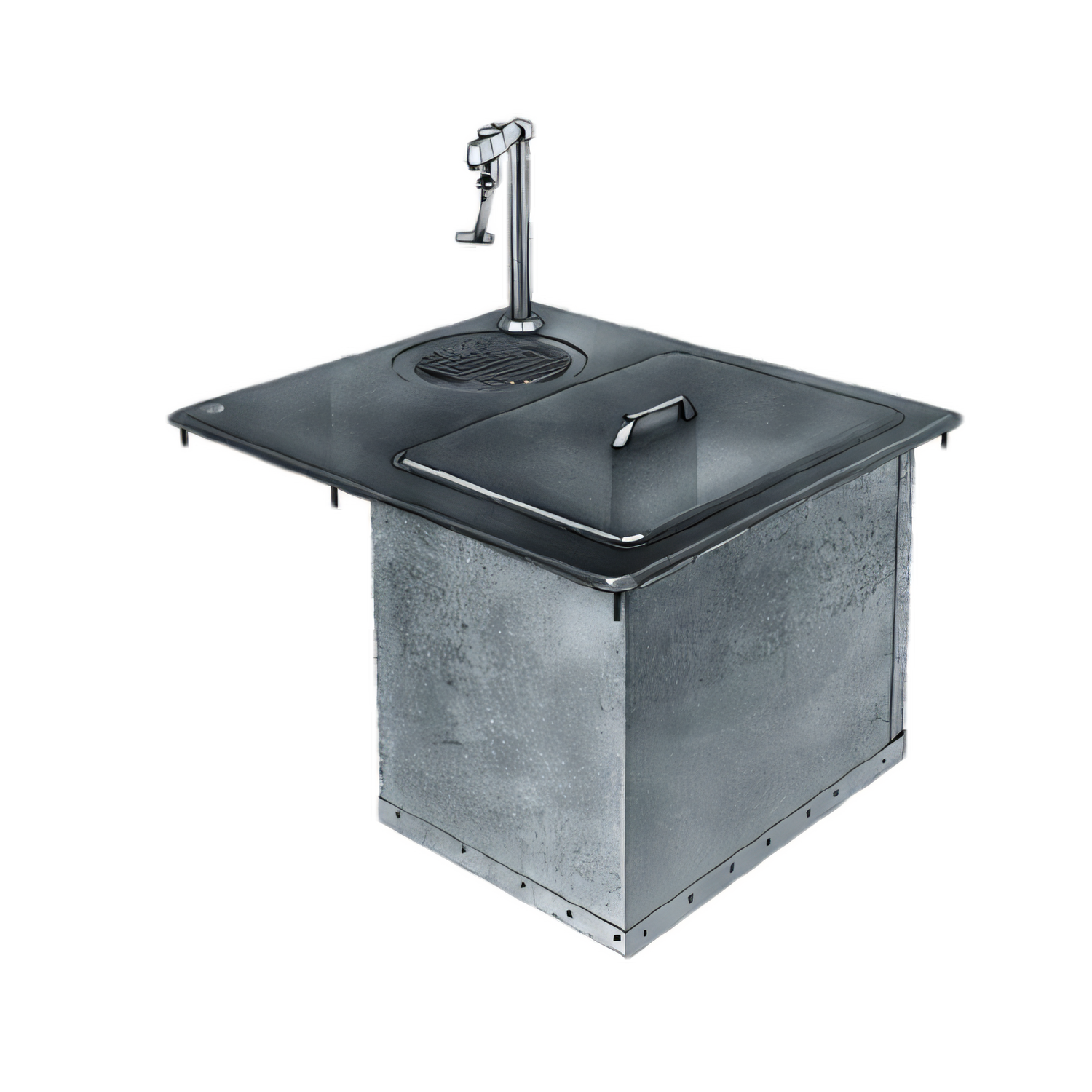

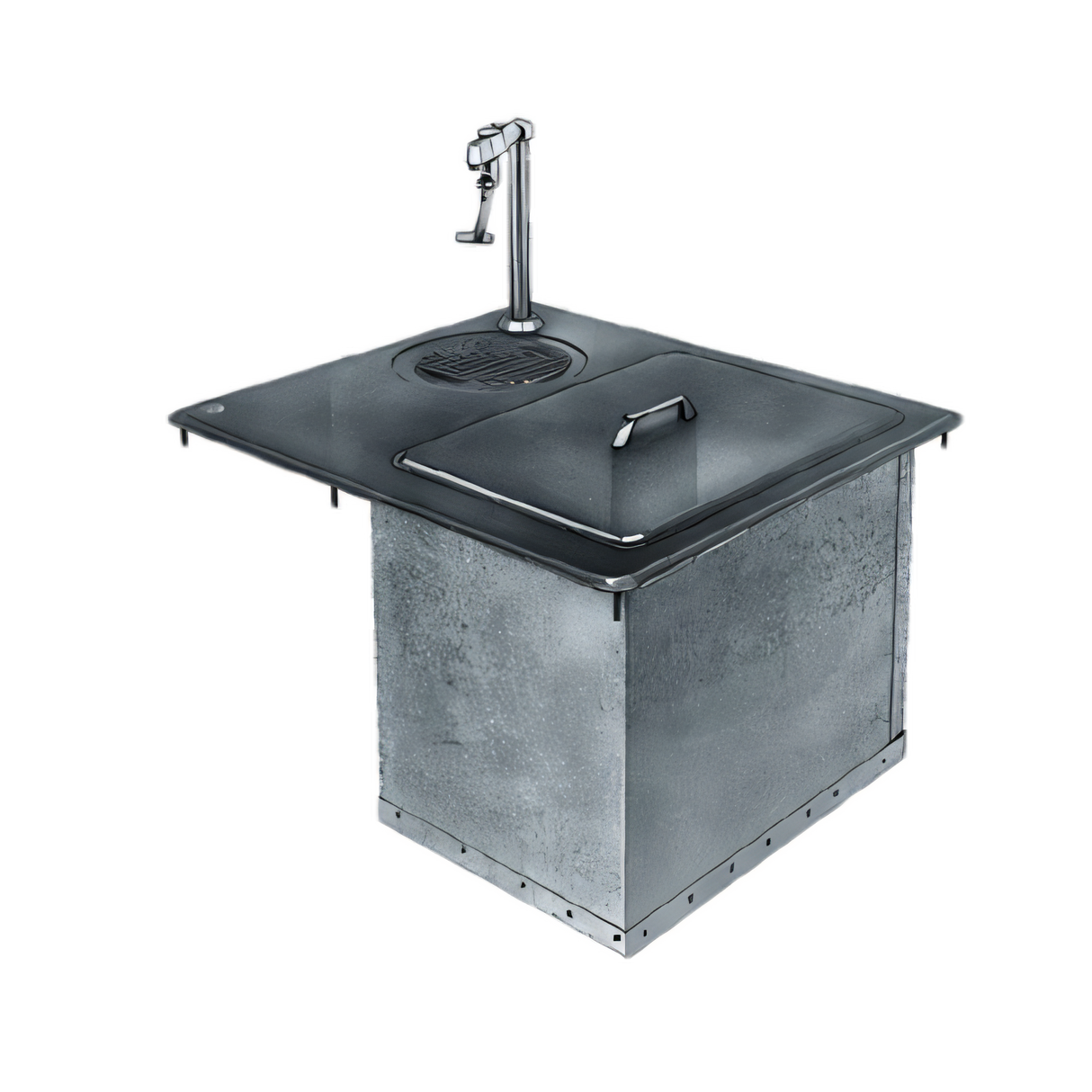

Delfield 204 Drop-In Ice & Water Station
Single-service glass filler • 45 lb insulated ice chest • NSF certifiedBoost speed of service and keep beverages ice-cold with the Delfield 204 Water & Ice Station. This self-contained, drop-in unit combines a high-rise glass filler with a fully insulated 45-pound ice chest, all packaged in a rugged stainless-steel top that installs flush in a 21" × 17-3/4" counter cutout.
Key benefits
- 18-gauge stainless-steel top with raised, die-stamped openings for a precise, watertight fit.
- 9.5" tall glass filler delivers steady, sanitary water service for tumblers up to pint size.
- 45 lb (20 kg) ice capacity in an ABS-lined chest with coved corners for fast, easy cleaning.
- High-density, environmentally friendly polyurethane foam insulation—zero ODP & zero GWP.
- One-piece 20-gauge stainless-steel lift-off cover keeps ice protected between rushes.
- Chrome-plated wire strainer prevents splash-back and keeps large debris out of the drain.
- 1" I.P.S. drain and 1/2" I.P.S. cold-water connection exit the bottom for a clean, concealed hookup.
- Galvanized-steel exterior tank withstands the rigors of busy back-bar and buffet lines.
- NSF listed for safe, code-compliant installation in any commercial food-service environment.
At-a-glance specifications
| Model | 204 (glass filler) |
|---|---|
| Ice storage capacity | 45 lb / 20 kg |
| Overall dimensions (L × D) | 24" × 21" (61 cm × 53 cm) |
| Overall height | 22.6" (57 cm) |
| Required counter cutout | 21" × 17.75" (53 cm × 45 cm) |
| Ice bin opening | 15.12" × 10.5" (38 cm × 27 cm) |
| Glass filler height | 9.5" (24 cm) above deck |
| Water connection | 1/2" I.P.S. cold-water inlet |
| Drain connection | 1" I.P.S. gravity drain |
| Shipping weight | 47.5 lb (22 kg) |
| Certifications | NSF |
Fast, hassle-free installation
- Factory-installed perimeter gasket drops flush into new or existing counters—no caulk required.
- Bottom-exit plumbing keeps supply and drain lines out of sight for a clutter-free workspace.
- Four mounting studs simplify anchoring the unit to the underside of your counter.
Cutout must be 21" × 17-3/4" with a minimum counter thickness of 3/4". Always verify clearances below the deck for plumbing and tank depth before cutting.
Built to last
- Durable 18-ga stainless top resists dents, scratches and corrosive cleaners.
- High-impact ABS liner and coved corners eliminate hard-to-reach seams.
- Galvanized-steel exterior tank adds structural support without excess weight.
Covered by Delfield’s standard 1-year parts & 90-day labor warranty.
