Delfield | SKU:
203
Delfield 203 Bar Equipment
$1,940.50
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Delfield 203 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield 203 Bar Equipment
$1,940.50
Unit price
/
Unavailable
Description

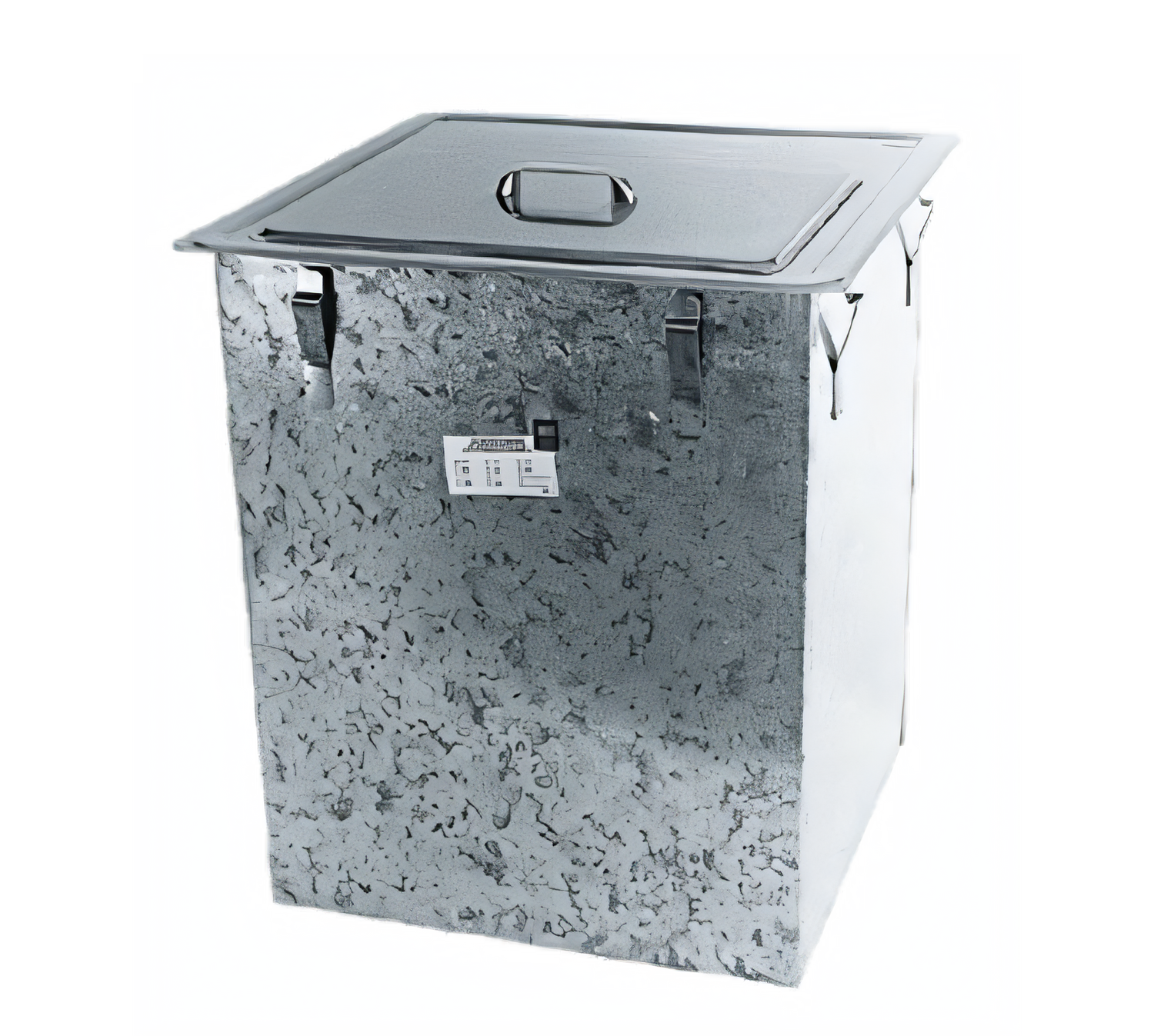

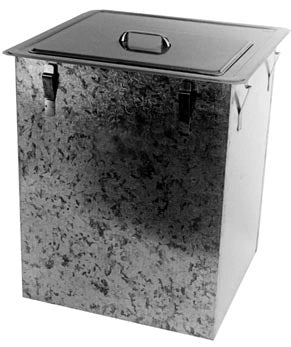

Delfield 203 Drop-In Ice Chest – 90 lb Capacity
20.5" W × 20.5" D | 1-Piece Stainless Lift-Off Cover | NSF ListedBring high-volume ice storage right to the service line. Designed for a clean flush fit, the Delfield 203 drops into a 19-1/4" × 19-1/4" counter cutout and delivers 90 pounds of ready-to-scoop ice in a rugged, all-stainless interior.
Key Features

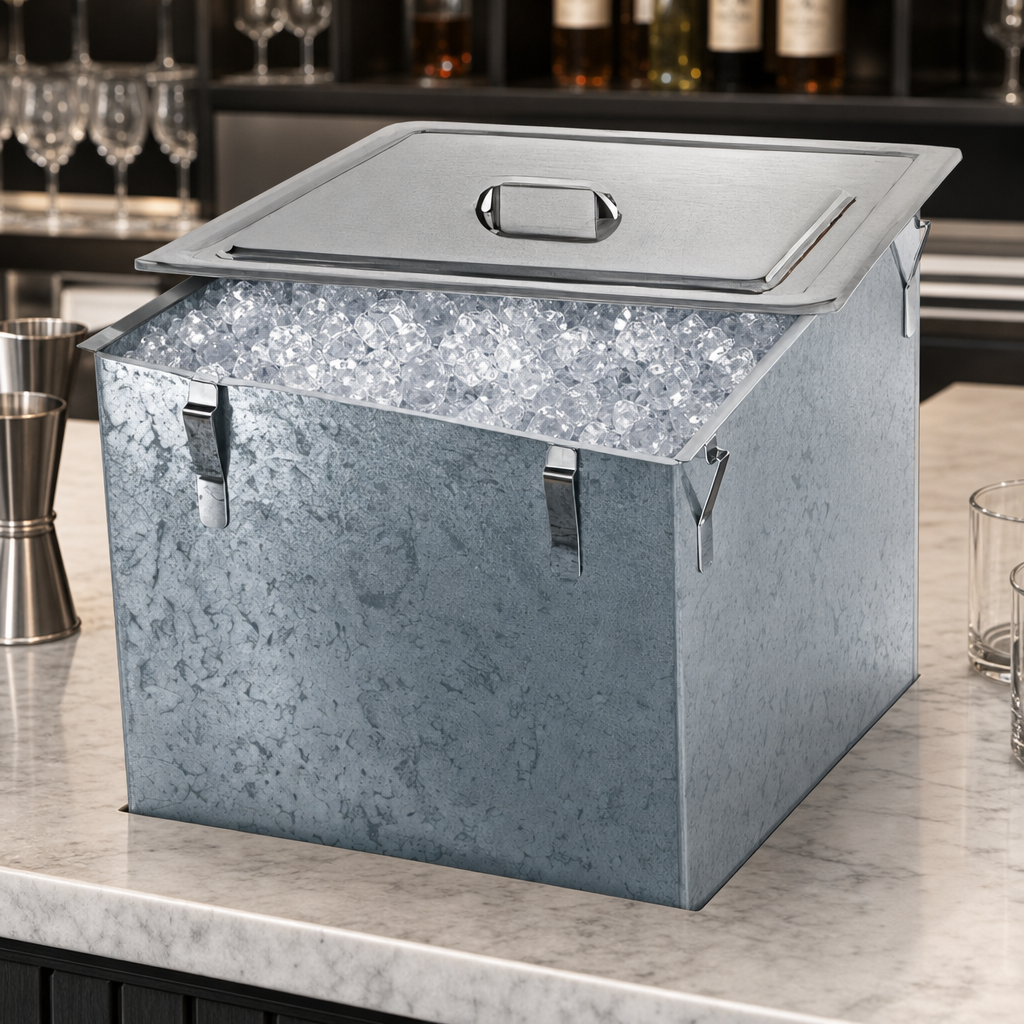

- Stores up to 90 lb of cube, flake or crushed ice.

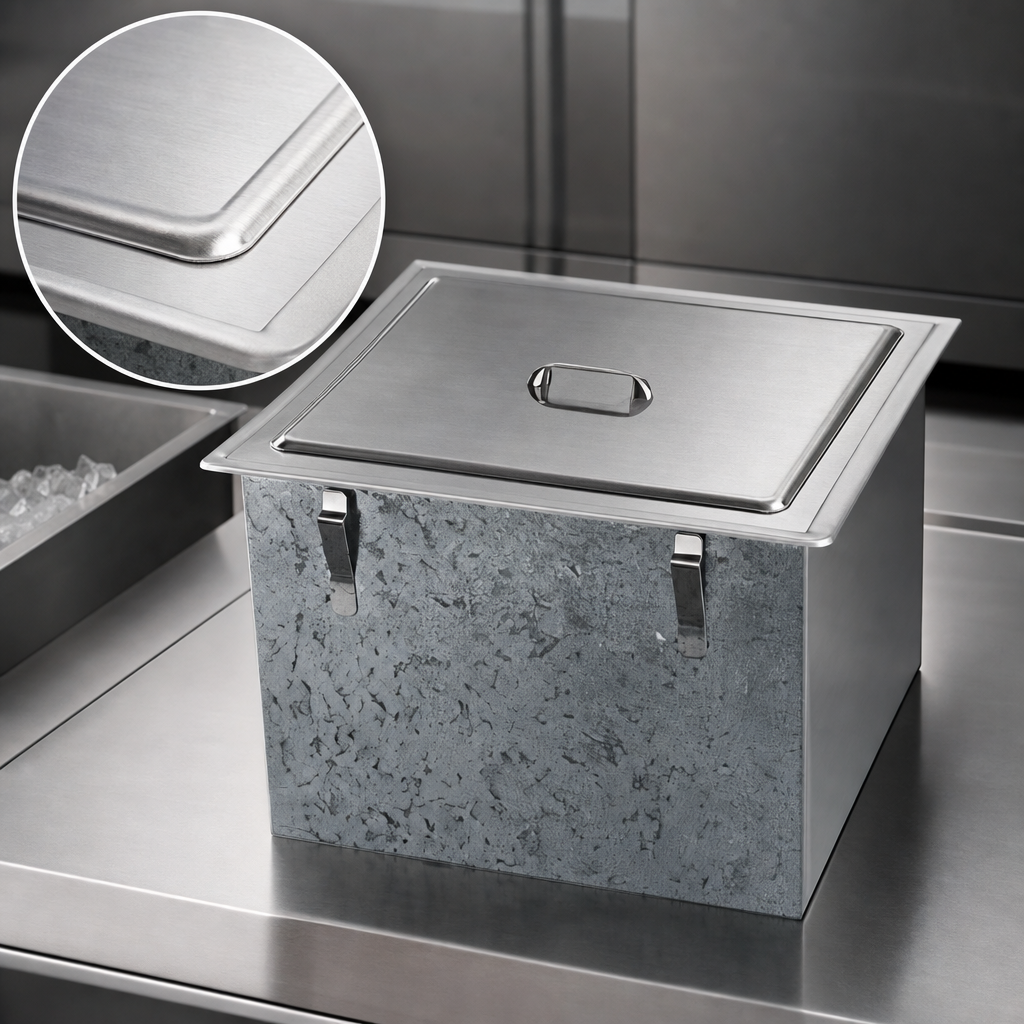

- 20-gauge stainless steel top with raised die-stamped opening controls spills.
- One-piece 20-gauge stainless steel lift-off cover with recessed handle.
- 22-gauge stainless interior liner with coved corners for fast, sanitary clean-up.
- Foamed-in-place, high-density polyurethane insulation (Non-ODP, Non-GWP & Kyoto-compliant).
- 1" I.P.S. drain routed through the bottom for direct plumbing.
- Durable 24-gauge galvanized exterior protects the unit below the counter.
- NSF certified for food-safe operation.
Specifications
| Model | Delfield 203 |
|---|---|
| Ice Capacity | 90 lb (41 kg) |
| Top Flange (overall) | 20.43" W × 20.43" D |
| Required Cutout | 19.25" W × 19.25" D |
| Overall Depth (below counter) | 23.25" |
| Interior Opening | 10.43" W × 15.18" D |
| Drain Connection | 1" I.P.S. (2.54 cm) bottom outlet |
| Shipping Weight | 52 lb (24 kg) |
Perfect For
- Full-service & quick-service bars
- Outdoor beverage stations
- Concession stands & stadium kiosks
- Cafeterias, hotels & resorts
Installation Note: A 19-1/4" × 19-1/4" watertight counter cutout and 1" drain
connection are required. Verify clearances before ordering.
Covered by Delfield’s standard 1-year parts & 90-day labor warranty.
Features & Specs
Features & Specs
Manufacturer
Delfield
Certifications
NSF
Height
23.25in
Width
20.5in
Depth
20.5in
Shipping Weight
52.0lbs
Material
stainless steel and galvanized
Cover
lift-off cover
Type
without cold plate
Capacity
71 - 95 lbs
Specifications
Ice Chest, drop-in, 20-1/2"W x 20-1/2"D, 90 lb. capacity, includes: 1-piece stainless steel lift off cover, stainless steel top & interior, galvanized exterior, (19-1/4" x 19-1/4" cutout required), NSF
