Key specifications

Amps
4.8 Amps
Phase
1-Phase
Dimensions
91.0"W × 31.5"D × 40.0"H
Type
Refrigerated Work Table
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Delfield SKU: 18691BSTMP

Delfield 18691BSTMP 91-Inch 3-Door Worktop Refrigerator

$11,375.50
/each
Estimated to ship in 61–64 business days
Width
Section access
Base support
Front finish
End finish
Back finish
Included: Delfield warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,052/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Work Table
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Capacity 24.48 cubic feet
Compartments 3
Door Count 3
Door Configuration 2 x 27 in; 1 x 19 in
Backsplash Height 4 in
Shelf Count 1 per section
Refrigeration Type Self-Contained, Side-Mounted
Refrigerant Type R290
Temperature Range 36–40 °F
Compressor Horsepower 1/4 HP
Controls Electronic
Caster Size 6 in
Voltage 115 Volts
Amps 4.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 ft

Description

The Delfield 18691BSTMP is a 91-inch, three-section refrigerated work table with a stainless steel top and exterior, three doors, and a 4-inch backsplash.

  • Self-contained, side-mounted refrigeration uses R290 hydrocarbon refrigerant.
  • Electronic controls support an interior cabinet temperature range of 36°F to 40°F.
  • The unit operates on 115 volts, 60 Hz, single-phase power.

Overall Dimensions:

91.0"W x 31.5"D x 40.0"H

Product Weight:

535.0 lb

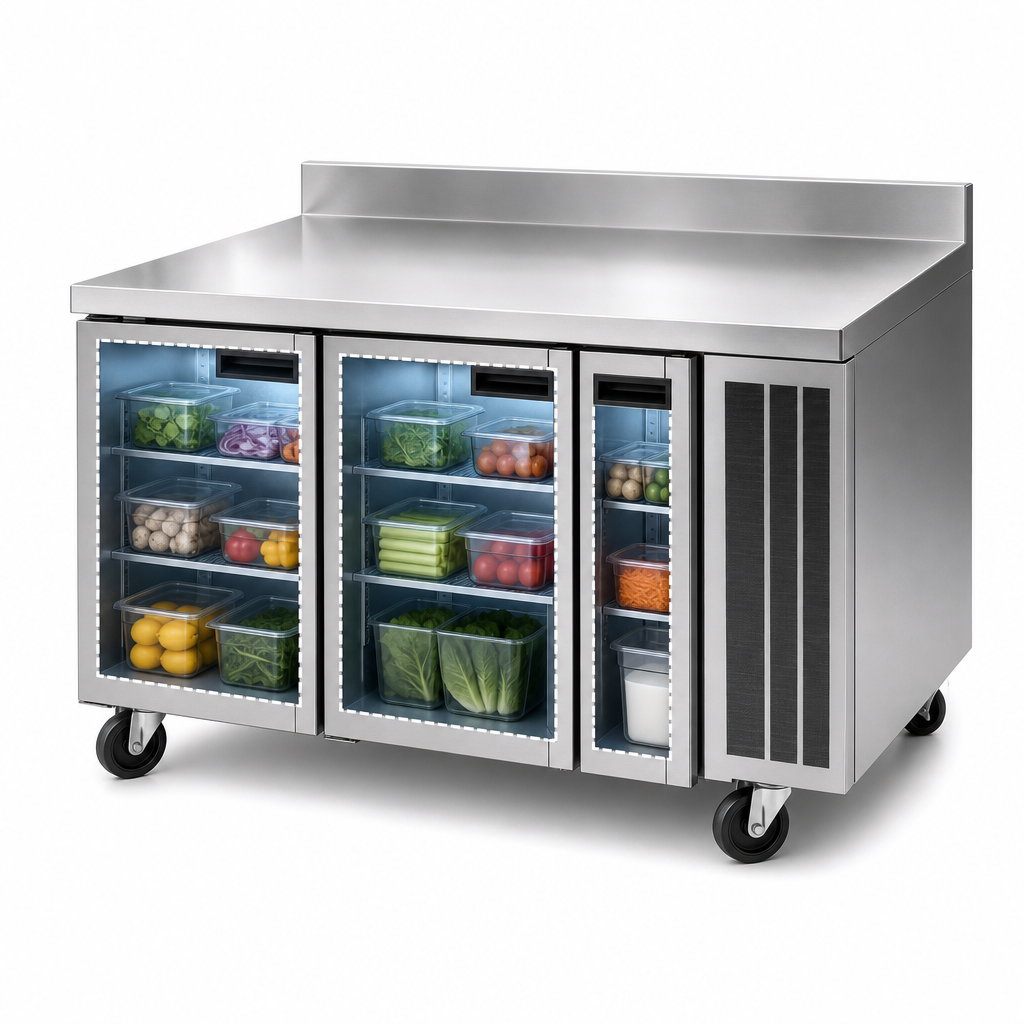

Three-Section Layout

Includes two 27-inch doors and one 19-inch door across three refrigerated sections.

Stainless Steel Top and Exterior

The work surface and exterior are stainless steel.

Four-Inch Backsplash

Includes a 4-inch-high backsplash.

Side-Mounted Refrigeration

The self-contained refrigeration system is mounted on the side.

R290 Refrigerant

Uses R290 hydrocarbon refrigerant.

Electronic Controls

Includes electronic temperature controls.

Temperature Range

Maintains an interior cabinet temperature range of 36°F to 40°F.

Caster Base

Mounted on 6-inch casters.

Removable Wire Shelves

Each interior door section includes one removable epoxy-coated wire shelf.

Frequently Asked Questions

It has three doors: two 27-inch doors and one 19-inch door.
The unit is 91 inches wide, 31.5 inches deep, and 40 inches high, with a listed weight of 535 pounds.
The interior cabinet temperature range is 36°F to 40°F.
It uses R290 hydrocarbon refrigerant.
It requires 115 volts, 60 Hz, single-phase power, draws 4.8 amps, and uses a NEMA 5-15P plug.
Yes. The refrigeration system is self-contained and side-mounted.
