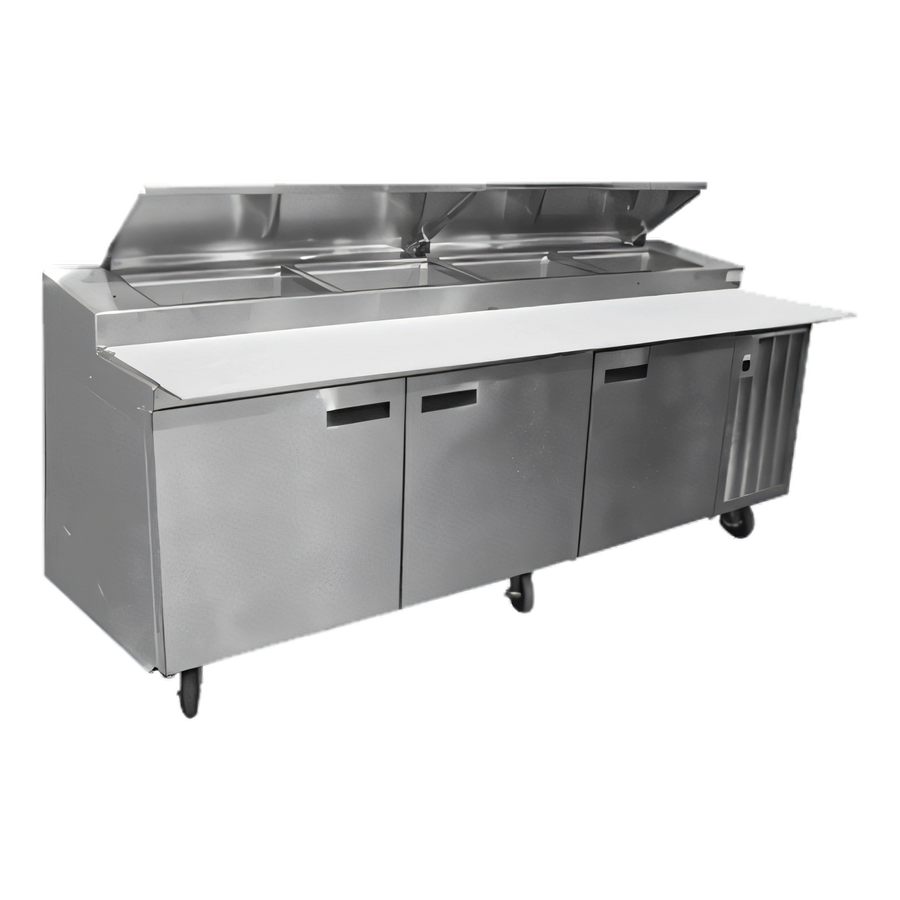

Delfield LiquiTec 72-Inch Two-Section Refrigerated Pizza Prep Table with Raised Rail

Self-Contained, Side-Mounted R290 Refrigeration, 16.52 Cu. Ft.

A spacious 72-inch pizza prep station with a cooled LiquiTec rail, stainless steel construction, and a standard 20-inch cutting board.

  • 72-inch, two-section refrigerated pizza prep table with 16.52 cubic feet of refrigerated base storage.
  • LiquiTec mechanically cooled raised rail holds 3 standard 12 x 20 pans.
  • Standard 20-inch cutting board adds a convenient prep surface.
  • Self-contained, side-mounted refrigeration uses environmentally friendly R290 refrigerant.
  • Stainless steel top and ends provide durable, commercial-grade construction.
  • 115V / 60Hz / 1-phase electrical connection with an 8-foot cord and 5-15P plug.

Overall Dimensions:

72.0"W x 31.5"D x 42.0"H

Product Weight:

635.0 lb

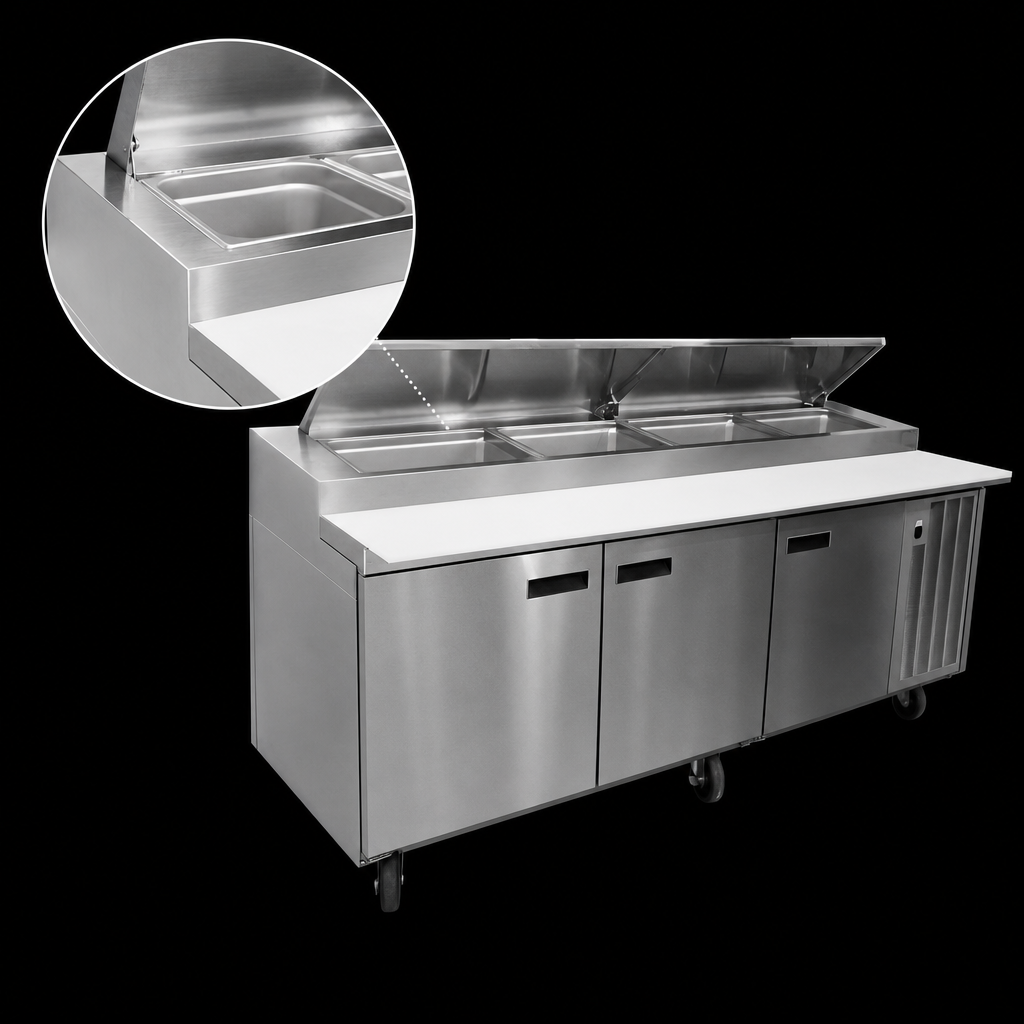

LiquiTec Raised Rail

Mechanically cooled raised rail with die-stamped 12 x 20 openings for flush-mounted pans; pans and adapter bars are not included.

LiquiTec Raised Rail

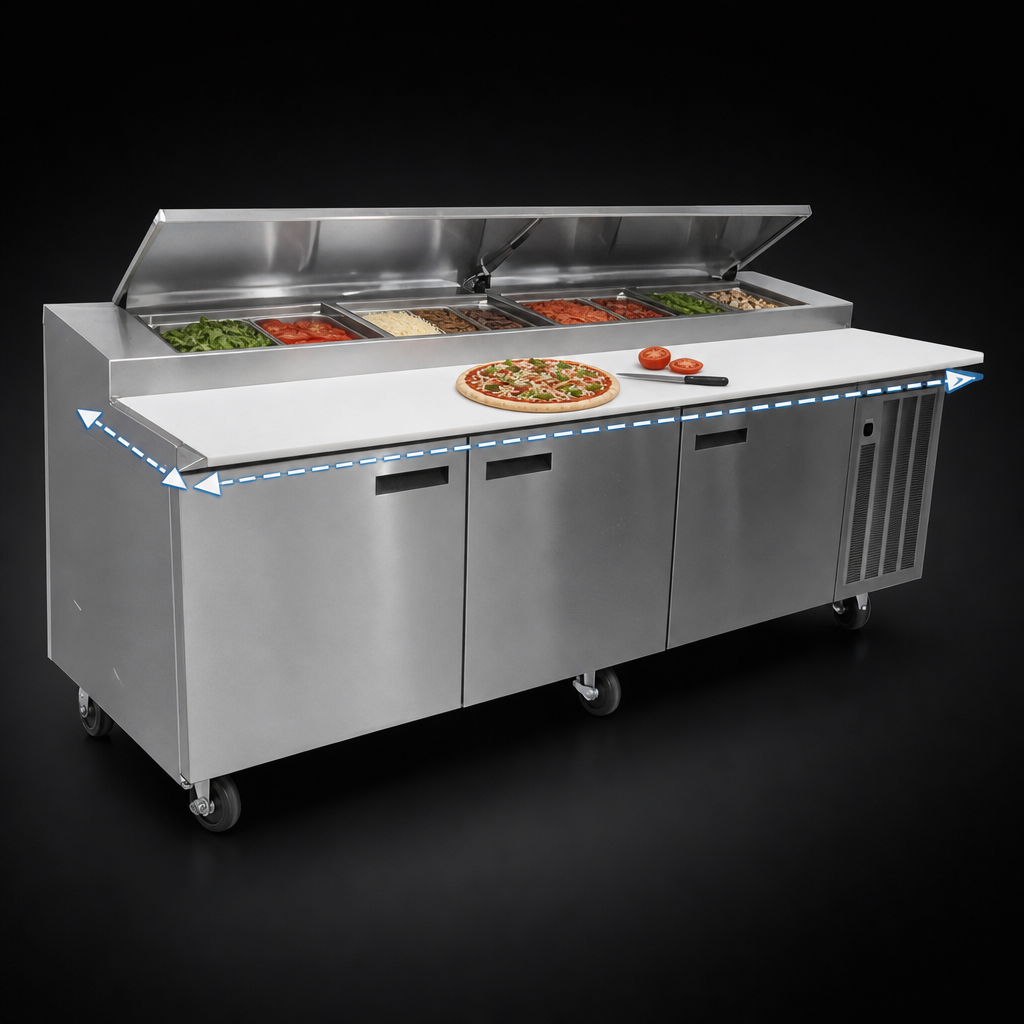

20-Inch Cutting Board

Standard cutting board provides a built-in prep surface for assembly and service.

20-Inch Cutting Board

Two-Section Refrigerated Base

16.52-cubic-foot refrigerated base with 2 doors and 2 shelves for cold storage.

Self-Contained Side-Mounted Refrigeration

Integrated refrigeration system is built into the unit for a compact, serviceable design.

R290 Hydrocarbon Refrigerant

Uses environmentally friendly R290 refrigerant.

Stainless Steel Construction

18-gauge stainless steel top with stainless steel ends and stainless steel door fronts for durability.

Electronic Controls

Separate electronic controls manage the base and rail, with temperature display for set-point reference.

115V Electrical Connection

Wired for 115 volts, 60 Hz, single phase, with a grounded 8-foot cord and NEMA 5-15P plug.

Temperature Performance

Refrigerated base maintains 36°F to 40°F, while the raised rail maintains 33°F to 41°F with flush-mounted pans at 86°F ambient.

Type Refrigerated Prep Table
Style Pizza Prep Table
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Capacity 16.52 Cubic Feet
Pan Capacity 3
Pan Size 12 x 20 Inches
Sections 2
Doors 2
Shelves 2
Material Stainless Steel
Voltage 115 Volts
Amps 8.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 72 Inches
Shipping Depth 32 Inches
Shipping Height 42 Inches
Shipping Weight 635 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Manual-service & installation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The rail has a 3-pan capacity for standard 12 x 20 pans.
The refrigerated base maintains 36°F to 40°F, and the raised rail maintains 33°F to 41°F with flush-mounted pans at 86°F ambient.
It requires 115V / 60Hz / 1-phase power, draws 8.6 amps, and uses an 8-foot cord with a NEMA 5-15P plug.
No. Pans and adapter bars are not included.
Available add-ons include laminate panels, tray racks, an overshelf, refrigerated drawers, locks, an additional shelf, and a Celsius readout option.
