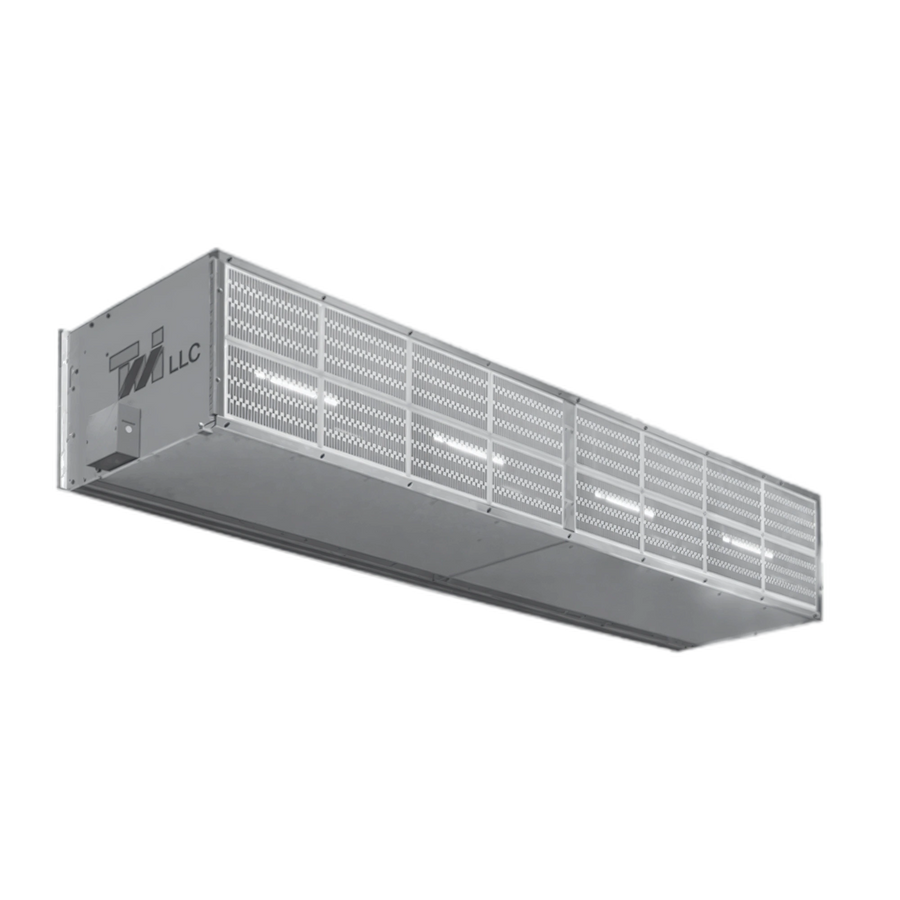

Curtron Products Curtron X-HD S-XHD-96-2 Extra Heavy Duty Unheated Air Curtain, 96" Wide, 2 x 5 HP Motors, Up to 22' High
SKU: S-XHD-96-2
$14,061.85
The Curtron X-HD S-XHD-96-2 is an extra heavy duty, unheated industrial air curtain for openings up to 96 inches wide and doors up to 22 feet high.
It features two continuous-duty 5 HP motors, a stainless steel housing, and a remote-mounted control panel.
Made in USA.
Overall Dimensions:
99.12"W x 27.25"D x 21.0"HProduct Weight:
765.0 lbExtra heavy duty construction
Designed as an extra heavy duty industrial air curtain.
Unheated operation
This model is an unheated air curtain.
Two continuous-duty motors
Uses two continuous-duty 5 HP motors.
Opening coverage
Covers openings up to 96 inches wide and doors up to 22 feet high.
Stainless steel housing
Built with a stainless steel housing.
Remote-mounted control panel
Includes a remote-mounted control panel.
Type
Unheated
Opening coverage width
Up to 96 in
Maximum opening height
22 ft
Motor count
2 motors
Horsepower per motor
5 hp
Motor duty
Continuous duty
Nozzle airflow
13,365 CFM
Maximum nozzle air velocity
6,770 FPM
Average nozzle air velocity
4,990 FPM
Outlet uniformity
92%
Housing
Stainless steel
Control panel
Remote mounted
Frequently Asked Questions
No. The S-XHD-96-2 is an unheated air curtain.
It covers openings up to 96 inches wide.
It is for doors up to 22 feet high.
It has two continuous-duty 5 HP motors.
The housing is stainless steel.
Yes. It includes a remote-mounted control panel.
