Curtron Products Curtron X-HD S-XHD-72-1 Extra Heavy Duty Unheated Industrial Air Curtain, 72" Wide, 5 HP Motor, 22' Max Door Height

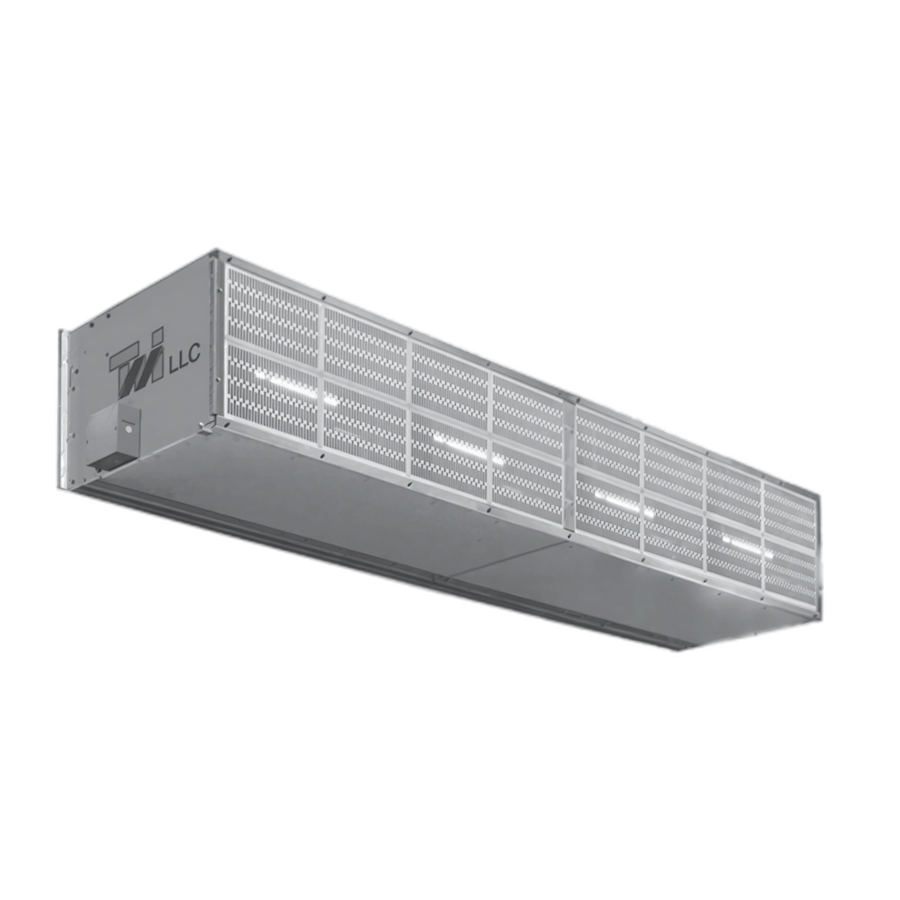

The Curtron X-HD S-XHD-72-1 is an extra heavy duty unheated industrial air curtain for climate and environmental control on openings up to 22 feet high. It has a 72-inch nozzle width, one continuous-duty 5 hp motor, stainless steel housing, and a remote-mounted control panel.
- For openings up to 72 inches wide
- Maximum climate and environmental control opening height of 22 feet
- Maximum insect-control opening height of 20 feet
- Made in USA
Overall Dimensions:
75.0"W x 27.25"D x 21.0"HProduct Weight:
450.0 lbExtra heavy duty design
Built as an extra heavy duty industrial air curtain.
Unheated operation
Listed as an unheated air curtain.
72-inch nozzle width
The S-XHD-72-1 has a 72-inch nozzle width and covers an area up to 72 inches wide.
5 hp continuous-duty motor
Equipped with one continuous-duty 5 hp motor.
22-foot opening height
Specified for climate and environmental control on openings up to 22 feet high.
Stainless steel housing
Includes stainless steel housing.
Remote-mounted control panel
Includes a remote-mounted control panel.
Airflow performance
The model is rated at 6,770 maximum FPM, 5,285 average FPM, and 9,535 CFM at the nozzle.
