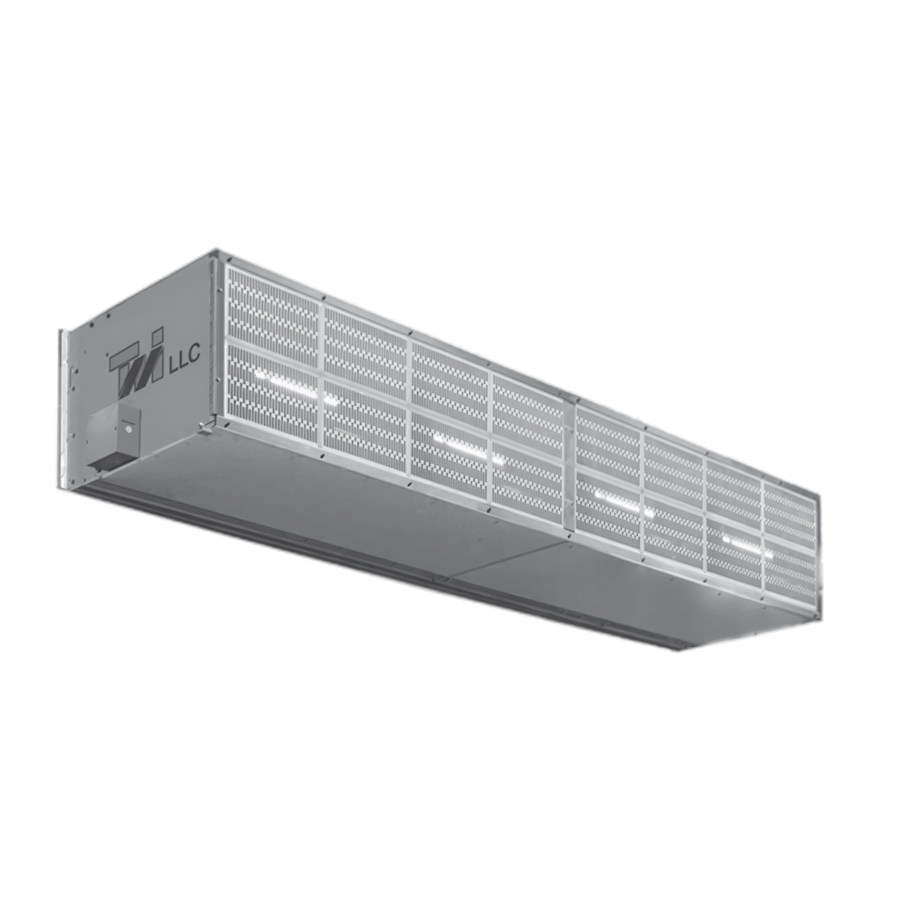

Curtron Products Curtron X-HD S-XHD-60-1 Extra Heavy-Duty Unheated Industrial Air Curtain, 60"W, 5 HP Motor, for Doors up to 22'H
SKU: S-XHD-60-1
$9,828.28
The Curtron X-HD S-XHD-60-1 is an extra heavy-duty, unheated industrial air curtain for openings up to 60 inches wide and doors up to 22 feet high.
- Uses one continuous-duty 5 hp motor.
- Features stainless steel housing.
- Includes a remote-mounted control panel.
- Made in USA.
Overall Dimensions:
63.0"W x 27.25"D x 21.0"HProduct Weight:
435.0 lbExtra heavy-duty design
Designed as an extra heavy-duty industrial air curtain.
Unheated operation
The unit is specified as unheated.
Single 5 hp motor
Uses one continuous-duty 5 hp motor.
60-inch coverage
Covers an area up to 60 inches wide and has a 60-inch nozzle width.
22-foot door height
Specified for doors up to 22 feet high.
Stainless steel housing
Constructed with stainless steel housing.
Remote-mounted control panel
Includes a remote-mounted control panel.
Type
Unheated
Coverage width
Up to 60 in
Nozzle width
60 in
Maximum opening height
22 ft
Motor count
1
Horsepower per motor
5 hp
Motor duty
Continuous duty
Maximum air velocity at nozzle
6,770 fpm
Average air velocity at nozzle
4,490 fpm
Airflow at nozzle
7,700 cfm
Outlet uniformity
91%
Frequently Asked Questions
No. The S-XHD-60-1 is an unheated air curtain.
It covers openings up to 60 inches wide and has a 60-inch nozzle width.
It is specified for doors up to 22 feet high.
It has one continuous-duty 5 hp motor.
Yes. It includes a remote-mounted control panel.
The housing is stainless steel.
