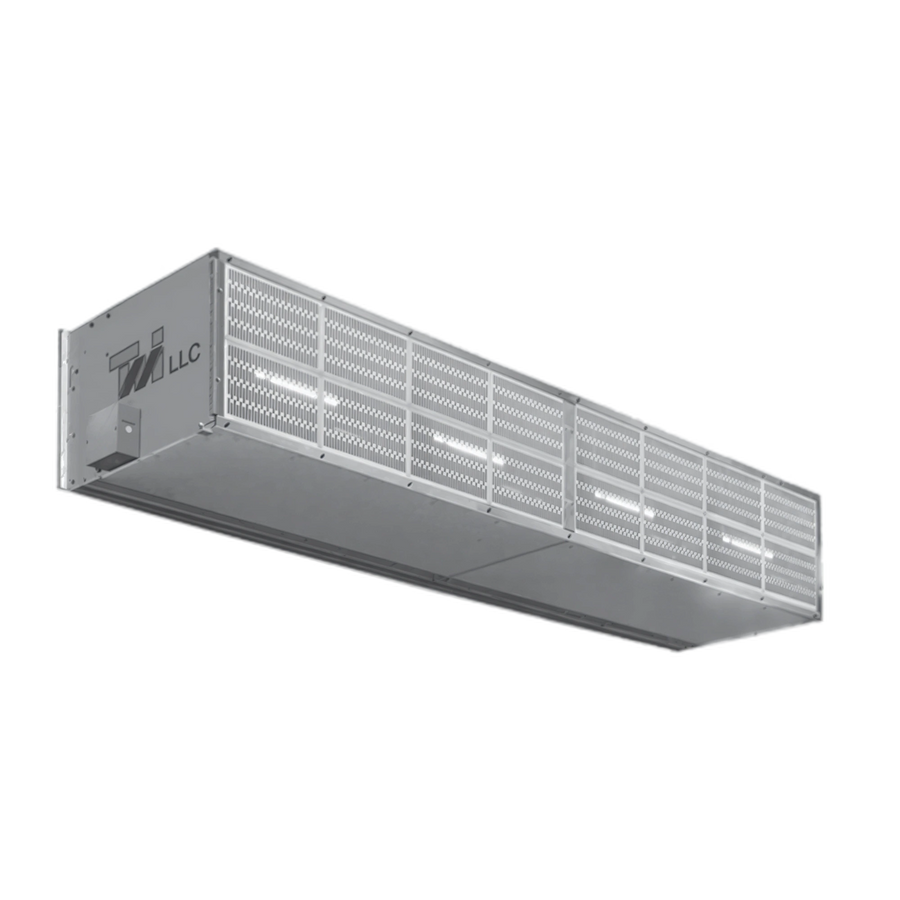

Curtron Products Curtron X-HD S-XHD-192-3 Extra Heavy-Duty Unheated Air Curtain, 192"W, 3 × 5 HP Motors, Up to 22' High

SKU: S-XHD-192-3
$22,412.77
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Curtron X-HD S-XHD-192-3 is an extra-heavy-duty industrial air curtain for openings up to 192 inches wide and 22 feet high. Its unheated design uses three continuous-duty 5 hp motors.

The unit has a stainless steel housing and includes a remote-mounted control panel. Listed performance includes 24,035 CFM at the nozzle and a maximum nozzle velocity of 6,770 FPM.

Overall Dimensions:

195.24"W x 27.25"D x 21.0"H

Product Weight:

1240.0 lb

Extra-heavy-duty construction

Designed as an extra-heavy-duty industrial air curtain.

Unheated operation

This model is an unheated air curtain.

Three continuous-duty motors

Uses three continuous-duty motors rated at 5 hp each.

Large opening coverage

Specified for openings up to 192 in wide and 22 ft high.

Stainless steel housing

Built with a stainless steel housing.

Remote-mounted control panel

Includes a remote-mounted control panel.

Related Searches

Air Doors Best Sellers Curtron Products Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment
Product type Extra-heavy-duty industrial air curtain, unheated
Nozzle width 192 in
Maximum opening height 22 ft
Motors 3 motors
Horsepower per motor 5 hp
Motor duty Continuous duty
Housing material Stainless steel
Control panel Remote mounted
Maximum nozzle velocity 6,770 FPM
Average nozzle velocity 4,990 FPM
Airflow at nozzle 24,035 CFM
Outlet uniformity 93%
Available motor voltage 208 V, 230 V, 460 V, 575 V, three phase
Amp draw per motor 17.1 A at 208 V; 15.8 A at 230 V; 7.9 A at 460 V; 6.3 A at 575 V

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Marketing sheet PDF Download PDF Instructions PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. The S-XHD-192-3 is an unheated air curtain.
It has three continuous-duty 5 hp motors.
It is specified for openings up to 192 inches wide and 22 feet high.
Yes. It includes a remote-mounted control panel.
The listed airflow at the nozzle is 24,035 CFM.
Available three-phase motor voltages are 208 V, 230 V, 460 V, and 575 V.
The listed dimensions are 195.24 in wide by 27.25 in deep by 21.0 in high, with a listed weight of 1,240 lb.
