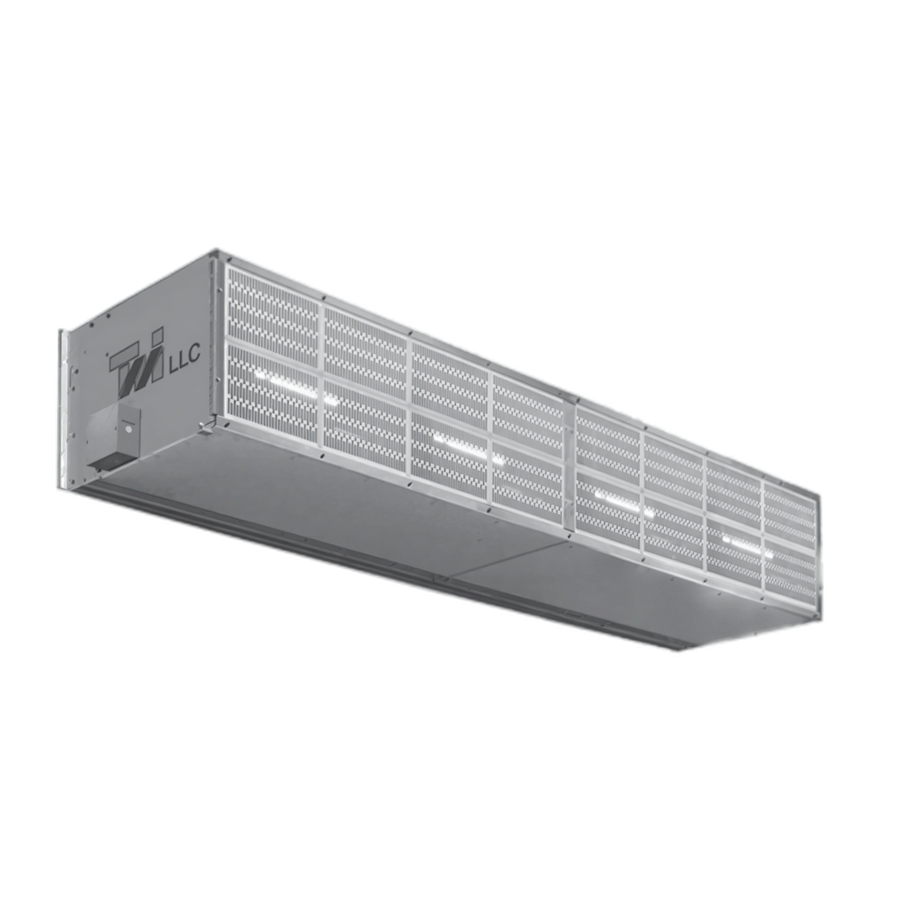

Curtron Products Curtron X-HD S-XHD-144-2 Extra Heavy Duty Unheated Air Curtain, 144"W, (2) 5 HP Motors, 22' Max Height
SKU: S-XHD-144-2
$15,977.33
The Curtron X-HD S-XHD-144-2 is an extra-heavy-duty industrial air curtain for openings up to 144 inches wide and doors up to 22 feet high. This unheated unit has two continuous-duty 5 HP motors.
- Stainless steel housing
- Remote-mounted control panel included
- Made in USA
Overall Dimensions:
147.12"W x 27.25"D x 21.0"HProduct Weight:
865.0 lbExtra-heavy-duty industrial air curtain
Designed for openings up to 22 feet high.
144-inch coverage
Covers area up to 144 inches wide.
Two 5 HP motors
Uses two continuous-duty 5 HP motors.
Unheated operation
Stainless steel housing
Remote-mounted control panel
Included with the unit.
Nozzle width
144 in
Maximum opening height
22 ft
Type
Unheated
Number of motors
2
Horsepower per motor
5 hp
Motor duty
Continuous duty
Housing
Stainless steel
Control panel
Remote-mounted; included
Maximum nozzle velocity
6,770 FPM
Average nozzle velocity
4,490 FPM
Airflow at nozzle
19,745 CFM
Outlet uniformity
95%
Frequently Asked Questions
It covers openings up to 144 inches wide.
It is designed for doors up to 22 feet high.
No. This model is unheated.
It has two continuous-duty 5 HP motors.
Yes. A remote-mounted control panel is included.
The product is 147.12 inches wide, 27.25 inches deep, and 21 inches high, with a weight of 865 pounds.
