Curtron Products Curtron MI S-MI-96-2 Industrial Air Curtain, 96"W, 2 x 1 HP Motors, for Doors up to 14 ft
SKU: S-MI-96-2
$4,463.26

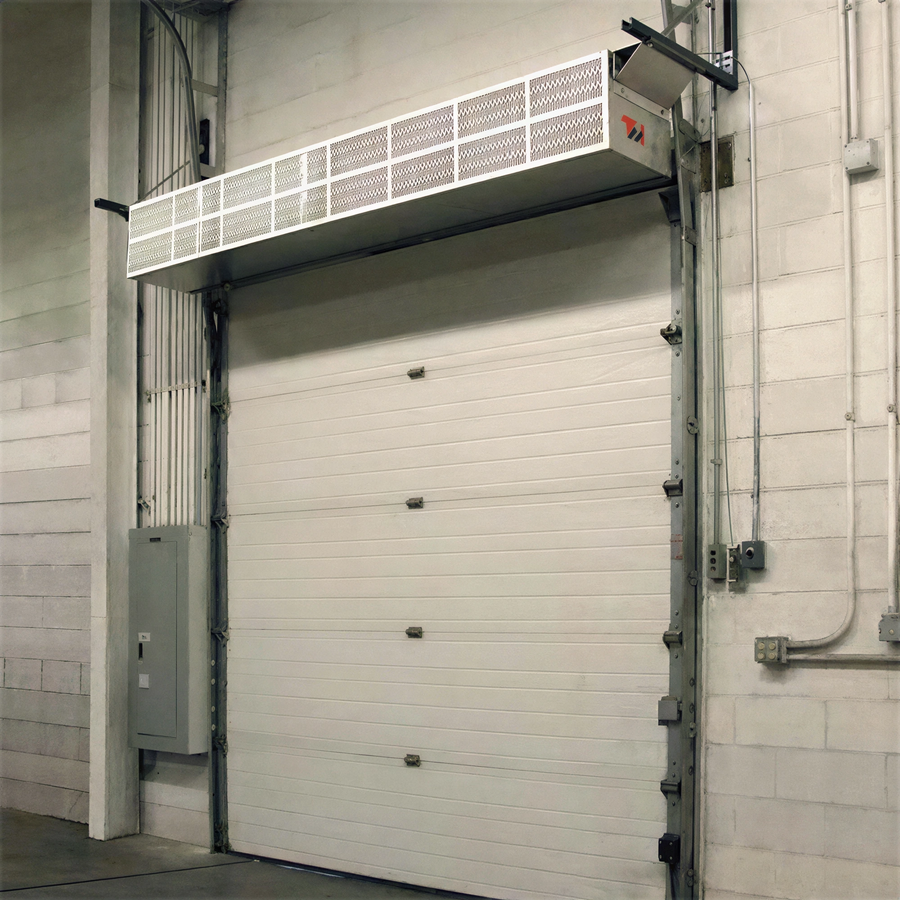

The Curtron Products S-MI-96-2 is a medium industrial air curtain with a 96 in nozzle width for doors up to 14 ft high.
- Two 1-speed 1 HP motors
- Stainless steel housing
- Maximum airflow at the nozzle: 9,325 CFM
- Average airflow at the nozzle: 7,165 CFM
- Made in USA
Overall Dimensions:
97.0"W x 15.38"D x 15.0"H96 in nozzle width
The S-MI-96-2 has a 96 in nozzle width.
Two 1 HP motors
The unit uses two motors rated at 1 HP each.
1-speed motor operation
The product specification identifies the motors as 1-speed.
14 ft maximum opening height
The air curtain is specified for doors up to 14 ft high.
Stainless steel housing
The housing is stainless steel.
Medium industrial design
The S-MI-96-2 is identified as a medium industrial air curtain.
Product type
Medium industrial air curtain
Nozzle width
96 in
Maximum opening height
14 ft
Number of motors
2
Horsepower per motor
1 hp
Motor speed
1 speed
Housing material
Stainless steel
Maximum air velocity at nozzle
5,085 FPM
Maximum airflow at nozzle
9,325 CFM
Average air velocity at nozzle
3,345 FPM
Airflow at nozzle
7,165 CFM
Outlet uniformity
93%
Product weight
230 lb
Frequently Asked Questions
It has a 96 in nozzle width and is specified for doors up to 14 ft high.
It has two 1-speed motors rated at 1 HP each.
The housing is stainless steel.
Maximum airflow at the nozzle is 9,325 CFM, and airflow at the nozzle is 7,165 CFM.
The product is 97.0 in wide, 15.38 in deep, and 15.0 in high, with a listed weight of 230 lb.
