Curtron Products Curtron MI S-MI-60-2 Medium Industrial Air Curtain, 60"W, 2 x 1 HP Motors, for Doors up to 14 ft
SKU: S-MI-60-2
$3,735.95

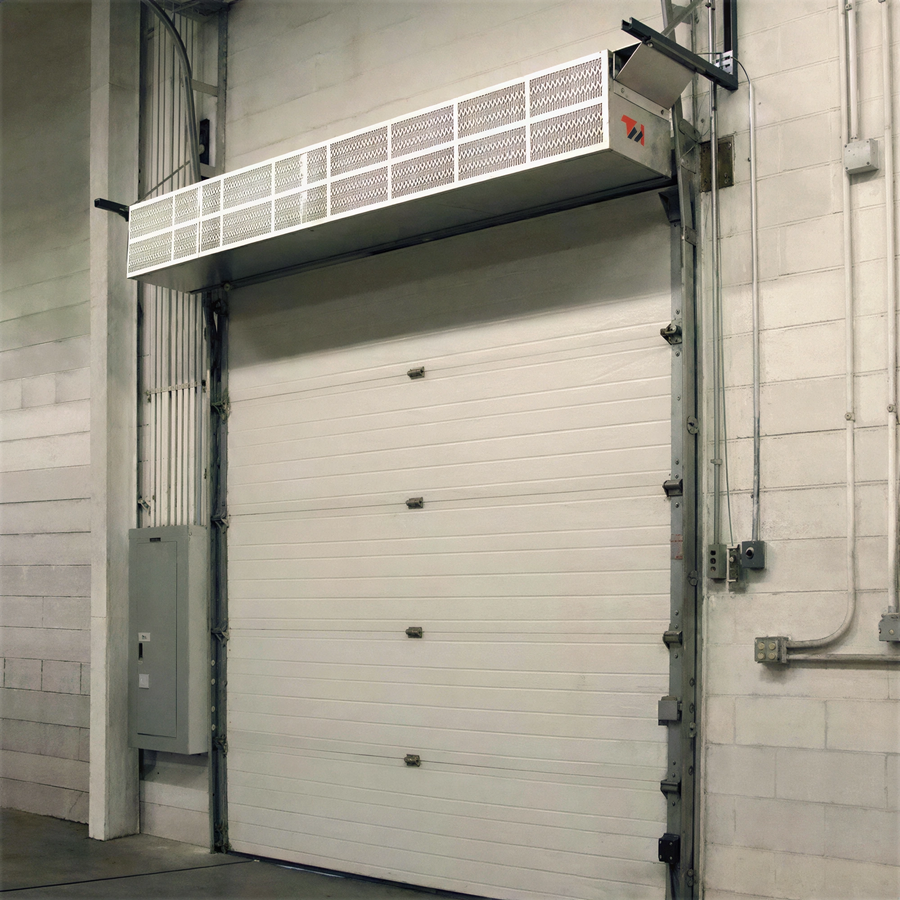

The Curtron MI S-MI-60-2 is a medium industrial air curtain for openings up to 60 inches wide and doors up to 14 feet high. It features two 1-speed 1 HP motors and a stainless steel housing.
- Designed for climate and environmental control on openings up to 14 feet high
- Supports insect control on openings up to 12 feet high
- Made in the USA
Overall Dimensions:
61.0"W x 15.38"D x 15.0"H60-inch opening coverage
The unit has a 60-inch nozzle width for openings up to 60 inches wide.
Two 1 HP motors
The air curtain uses two motors rated at 1 HP each.
1-speed operation
Both motors are specified as 1-speed motors.
Stainless steel housing
The product specifications identify a stainless steel housing.
14-foot opening height
Designed for climate and environmental control on openings up to 14 feet high.
Airflow performance
The product data lists maximum airflow of 6,090 CFM and airflow of 5,375 CFM at the nozzle.
Made in USA
The product is identified as Made in USA.
Nozzle width
60 in
Maximum opening height
14 ft
Insect control opening height
12 ft
Motors
2 motors
Horsepower per motor
1 hp
Motor speed
1-speed
Housing material
Stainless steel
Maximum air velocity at nozzle
5,085 fpm
Maximum airflow at nozzle
6,090 cfm
Average air velocity at nozzle
3,995 fpm
Airflow at nozzle
5,375 cfm
Outlet uniformity
94%
Product weight
170 lb
Frequently Asked Questions
The unit has a 60-inch nozzle width and is specified for openings up to 60 inches wide.
It has two 1-speed motors rated at 1 HP each.
It is specified for climate and environmental control on openings up to 14 feet high.
The housing is stainless steel.
The product data lists maximum airflow of 6,090 CFM at the nozzle.
Yes. The product is identified as Made in USA.
