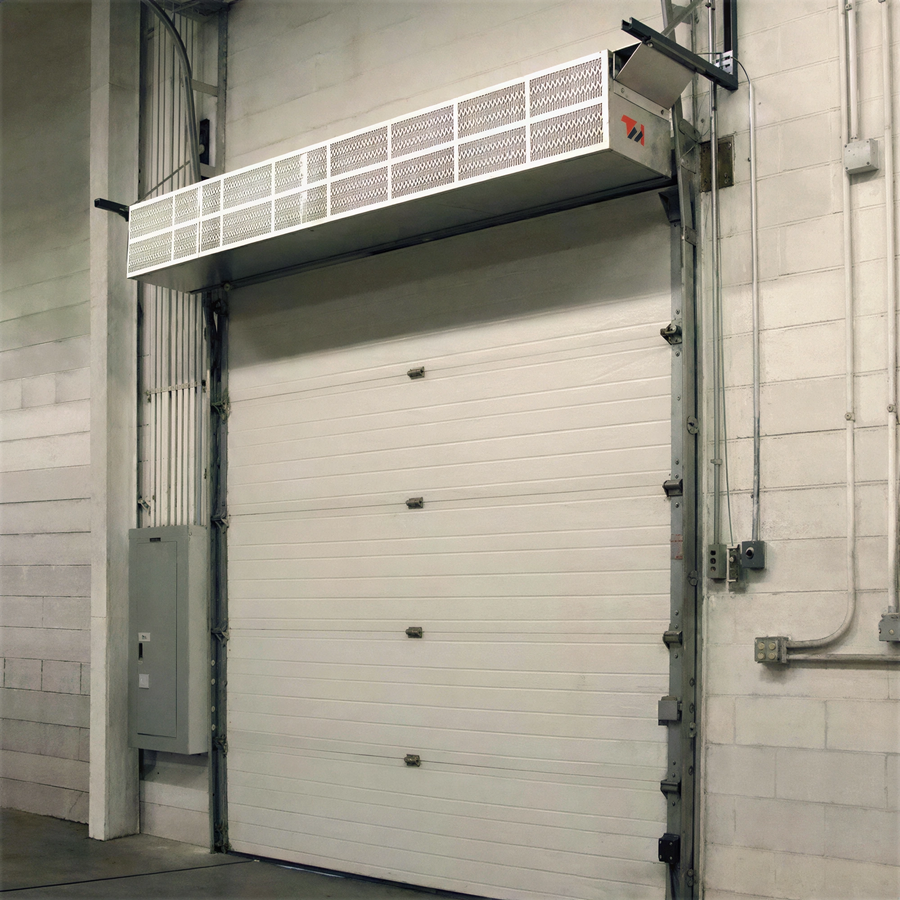

Curtron Products Curtron MI S-MI-48-1 Medium Industrial Air Curtain, 48"W, 1-Speed 1 HP Motor, For Doors Up to 14 ft
The Curtron MI S-MI-48-1 is a medium industrial air curtain with a 48 in. nozzle width, one 1-speed 1 HP motor, and stainless steel housing.
It is specified for openings up to 14 ft high. The cutsheet lists a maximum nozzle velocity of 5,085 FPM and maximum airflow of 4,665 CFM at the nozzle.
Overall Dimensions:
49.0"W x 15.38"D x 15.0"H48 in. nozzle width
The S-MI-48-1 has a 48 in. nozzle width.
1-speed 1 HP motor
This model uses one 1-speed motor rated at 1 HP.
14 ft opening height
Specified for climate and environmental control on openings up to 14 ft high.
Stainless steel housing
The housing is stainless steel.
Airflow performance
The cutsheet lists maximum airflow of 4,665 CFM at the nozzle and maximum nozzle velocity of 5,085 FPM.
Outlet uniformity
The listed outlet uniformity is 92%.
Sound level
Sound level is listed as 64 dBA, measured 10 ft from the unit in a free field based on a one-motor unit.
