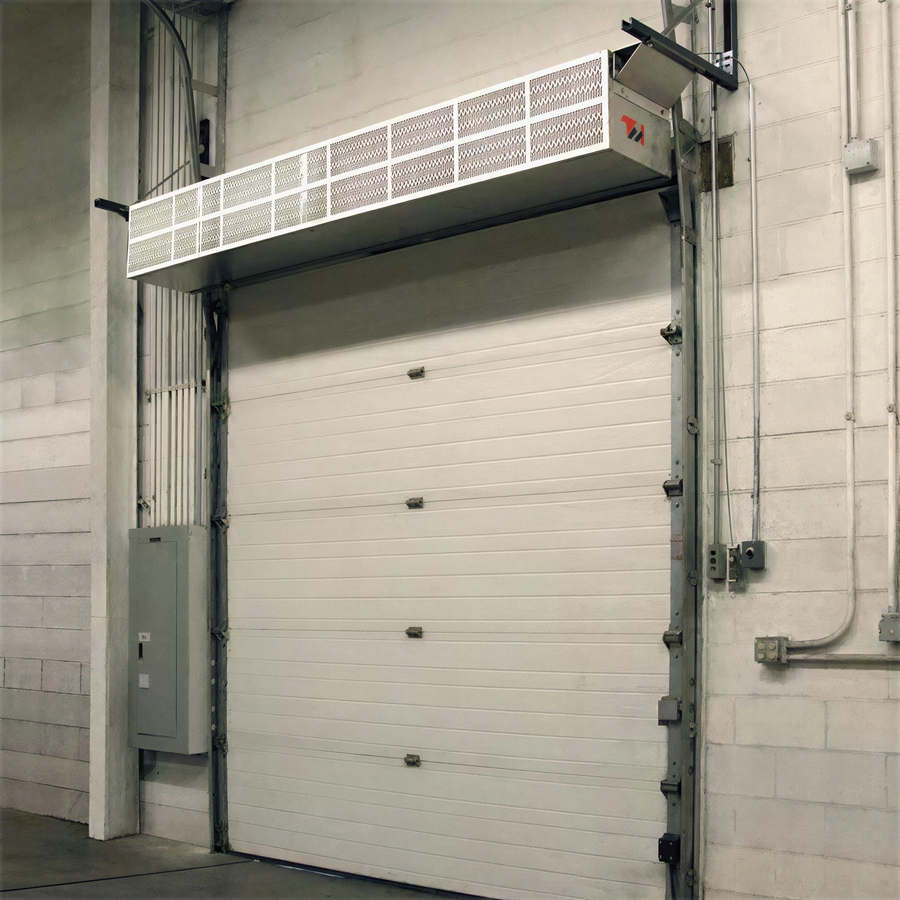

Curtron Products Curtron MI S-MI-36-1 Medium Industrial Air Curtain, 36"W, 1-Speed 1 HP Motor, for Doors up to 14' High
The Curtron MI S-MI-36-1 is a medium industrial air curtain with a 36 in nozzle width and one 1-speed 1 HP motor.
It is specified for climate and environmental control on openings up to 14 ft high and insect control on openings up to 12 ft high. The unit has a stainless steel housing and is made in the USA.
- Maximum airflow at nozzle: 3,500 CFM
- Maximum air velocity at nozzle: 5,085 FPM
- Outlet uniformity: 95%
Overall Dimensions:
37.0"W x 15.38"D x 15.0"H36 in nozzle width
The air curtain has a 36 in nozzle width.
1-speed 1 HP motor
The unit uses one 1-speed motor rated at 1 HP.
Opening height application
The cutsheet specifies climate and environmental control on openings up to 14 ft high and insect control on openings up to 12 ft high.
Stainless steel housing
The housing is stainless steel.
Nozzle airflow
Maximum airflow is 3,500 CFM at the nozzle, with 3,065 CFM listed at the nozzle.
Air velocity
Maximum air velocity at the nozzle is 5,085 FPM, with an average of 4,450 FPM.
Outlet uniformity
Outlet uniformity is 95%.
Sound level
Sound level is 64 dBA measured 10 ft from the unit in a free field based on a one-motor unit.
