Curtron Products Curtron MI S-MI-108-3 Medium Industrial Air Curtain, 108"W Coverage, 3 x 1 HP Motors, 14 ft Max Opening
SKU: S-MI-108-3
$6,032.78

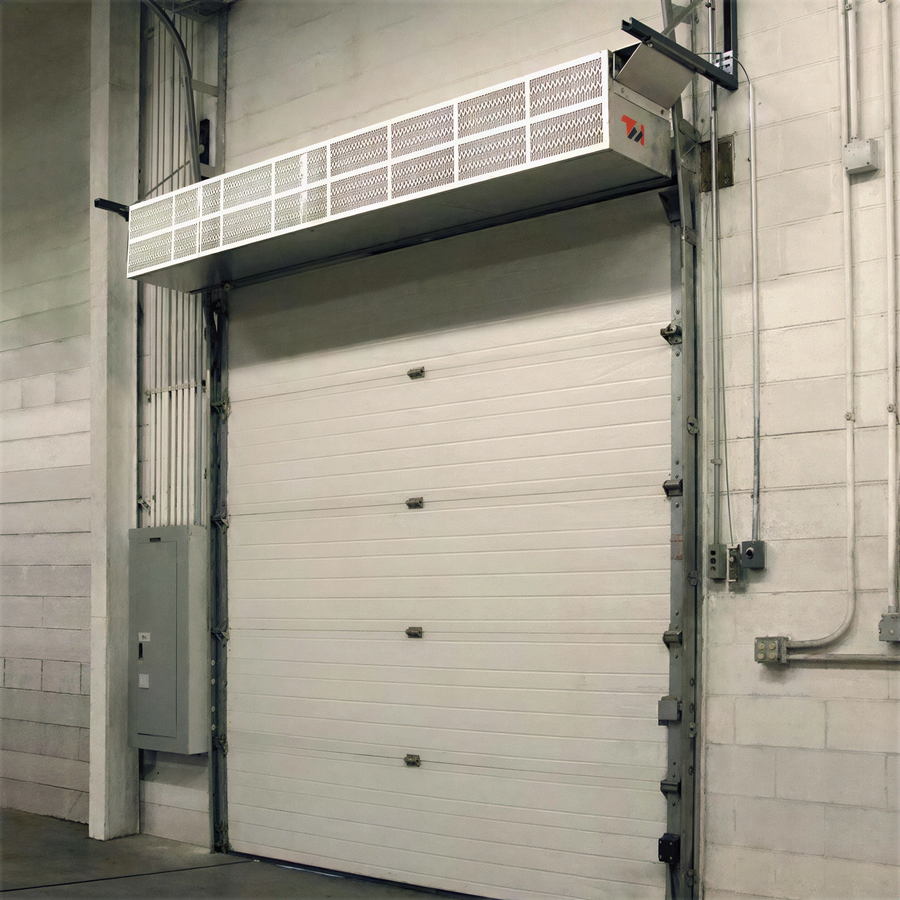

The S-MI-108-3 is a medium industrial air curtain designed for openings up to 108 inches wide and doors up to 14 feet high.
It features three 1-speed 1 HP motors and a stainless steel housing. Made in USA.
Overall Dimensions:
109.0"W x 15.38"D x 15.0"HProduct Weight:
262.5 lb108-inch coverage
Designed to cover openings up to 108 inches wide.
Three 1 HP motors
Uses three 1-speed motors rated at 1 HP each.
14-foot opening height
Designed for doors and openings up to 14 feet high.
Stainless steel housing
Constructed with a stainless steel housing.
Made in USA
Product type
Medium industrial air curtain
Coverage width
Up to 108 in
Maximum opening height
14 ft
Motor count
3
Horsepower per motor
1 hp
Motor speed
1 speed
Housing material
Stainless steel
Maximum air velocity at nozzle
5,085 FPM
Maximum airflow at nozzle
10,500 CFM
Average air velocity at nozzle
4,460 FPM
Airflow at nozzle
10,750 CFM
Outlet uniformity
92%
Unit weight
275 lb
Frequently Asked Questions
It covers openings up to 108 inches wide.
It is designed for doors and openings up to 14 feet high.
It has three 1-speed motors, each rated at 1 HP.
The housing is stainless steel.
The unit weighs 275 lb.
It is made in the USA.
