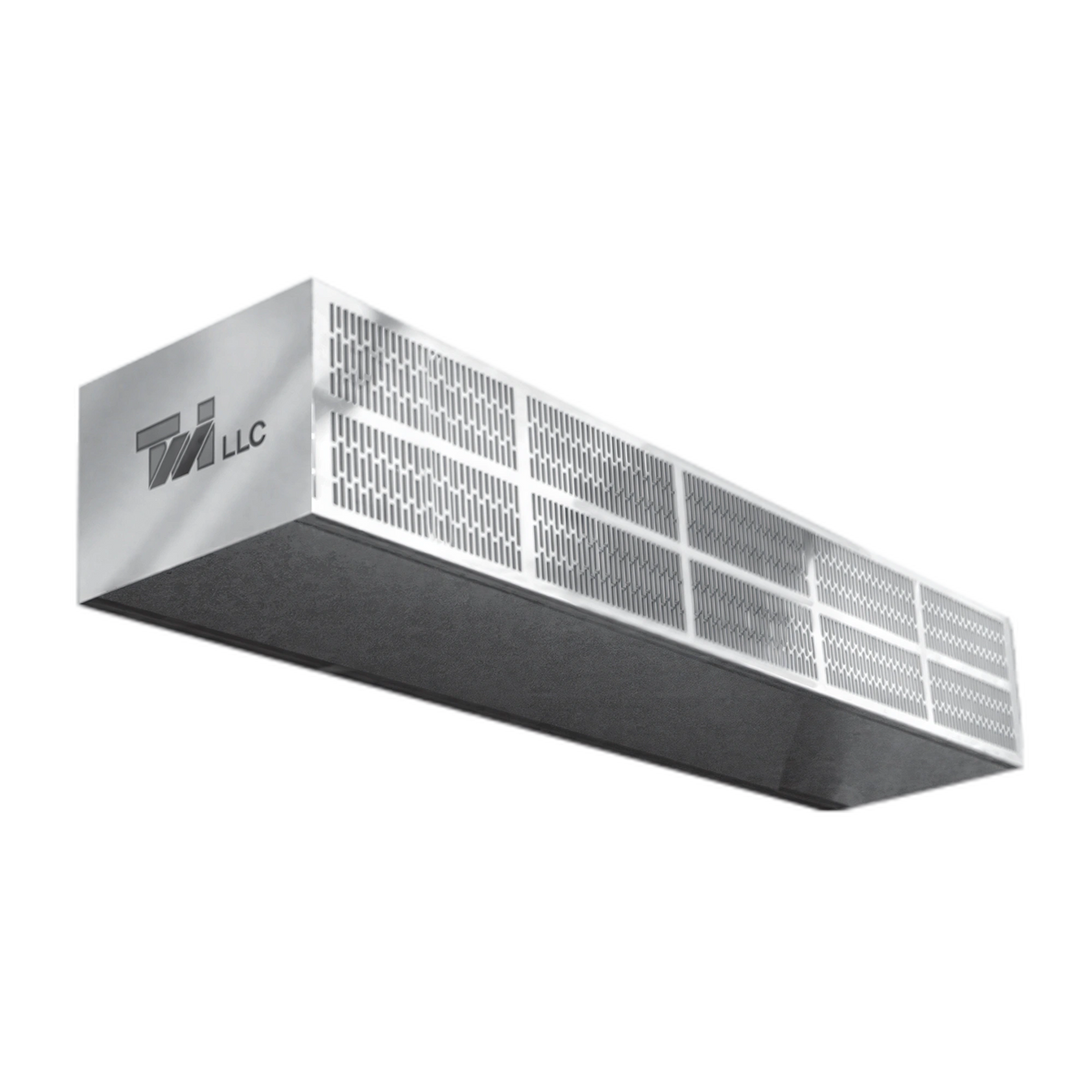

Curtron LP S-LP-84-2 84" Unheated Air Curtain with 2 Variable-Speed 1/5 HP Motors, Stainless Steel Housing
- Dimensions
- 85.0"W × 11.88"D × 8.5"H
- Type
- Low-profile air curtain
- Heating
- Unheated
- Coverage width
- Up to 84 in
- Maximum opening height
- 10 ft (120 in)
- Number of motors
- 2
Specifications
Description
The S-LP-84-2 is a low-profile, unheated air curtain for openings up to 84 in wide and 10 ft high. It uses two variable-speed 1/5 hp motors and has a stainless steel housing.
The unit has an 83 in nozzle width, delivers up to 3,100 FPM at the nozzle, and is ETL listed. It is made in the USA.
Overall Dimensions:
85.0"W x 11.88"D x 8.5"HProduct Weight:
120.0 lbUnheated operation
The unit is an unheated air curtain.
Variable-speed motors
Two 1/5 hp variable-speed motors are provided.
Opening coverage
Designed for openings up to 84 in wide and 10 ft high.
Low-profile design
The product is identified as a low-profile commercial air curtain.
Stainless steel housing
The housing is stainless steel.
Nozzle airflow
The unit provides up to 3,100 FPM at the nozzle, with an average of 2,150 FPM and 2,760 CFM at the nozzle.
ETL listing
The product is ETL listed.
Made in the USA
The product is identified as Made in USA.
