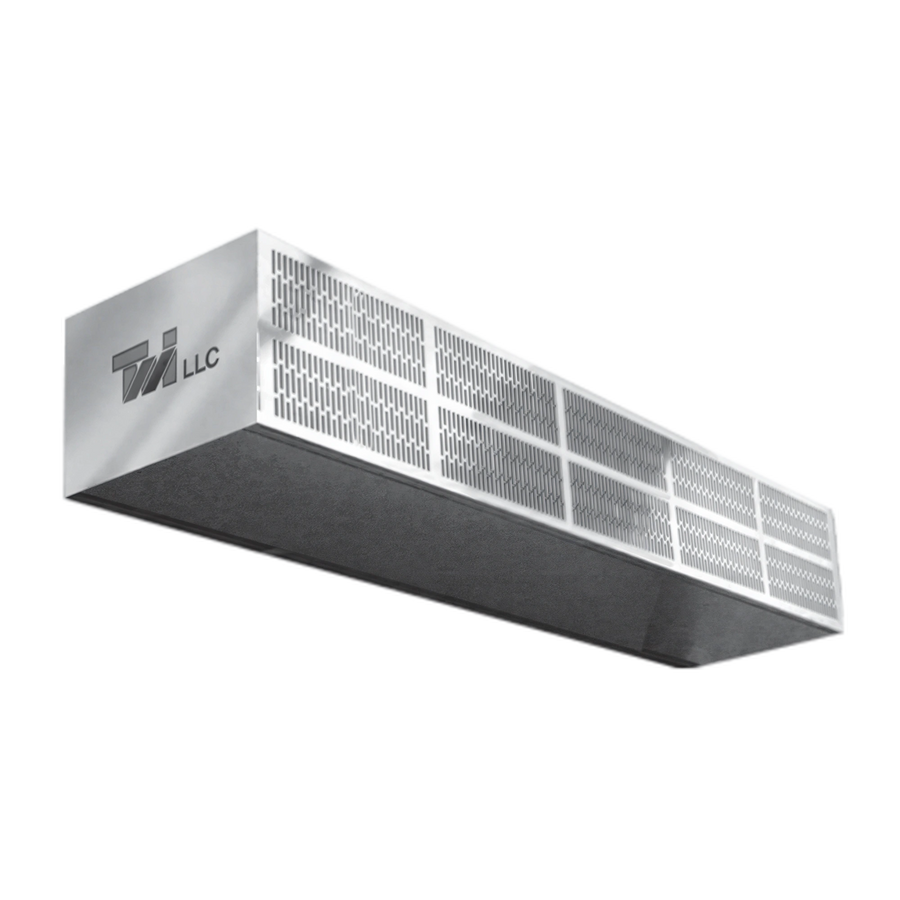

Curtron Products Curtron LP S-LP-60-1 Unheated Air Curtain, 60 in Wide, 1/5 hp Variable-Speed Motor, Stainless Steel Housing
SKU: S-LP-60-1
$2,842.70
The S-LP-60-1 is a low-profile, unheated air curtain for openings up to 60 inches wide and 10 feet high. It uses one 1/5 hp variable-speed motor and has a stainless steel housing.
- Maximum nozzle airflow: 1,820 CFM
- Maximum nozzle velocity: 3,100 FPM
- Average nozzle velocity: 1,985 FPM
- ETL listed and made in the USA
Overall Dimensions:
61.0"W x 11.88"D x 8.5"HVariable-speed motor
Uses one 1/5 hp variable-speed motor.
Unheated operation
Specified as an unheated air curtain.
Low-profile design
Part of the S-LP Low Profile Commercial air curtain series.
Stainless steel housing
Constructed with a stainless steel housing.
Opening coverage
Covers openings up to 60 inches wide and 10 feet high.
Airflow performance
Provides 1,820 CFM at the nozzle, with maximum nozzle velocity of 3,100 FPM.
Listings and origin
ETL listed and made in the USA.
Product type
Unheated air curtain
Motor count
1 motor
Motor horsepower
1/5 hp
Motor speed
Variable speed
Housing material
Stainless steel
Maximum opening width
60 in
Maximum opening height
10 ft
Nozzle width
59 in
Maximum nozzle airflow
1,820 CFM
Maximum nozzle velocity
3,100 FPM
Average nozzle velocity
1,985 FPM
Outlet uniformity
92%
Sound level
53 dBA
Available voltage
120/208/230 V, single phase
Product weight
95 lb
Certifications & Compliance
Frequently Asked Questions
No. The S-LP-60-1 is specified as an unheated air curtain.
It has one 1/5 hp variable-speed motor.
It covers openings up to 60 inches wide and 10 feet high.
Maximum airflow at the nozzle is 1,820 CFM.
The listed dimensions are 61.0 inches wide, 11.88 inches deep, and 8.5 inches high.
Single-phase motor voltage is available at 120, 208, or 230 V.
