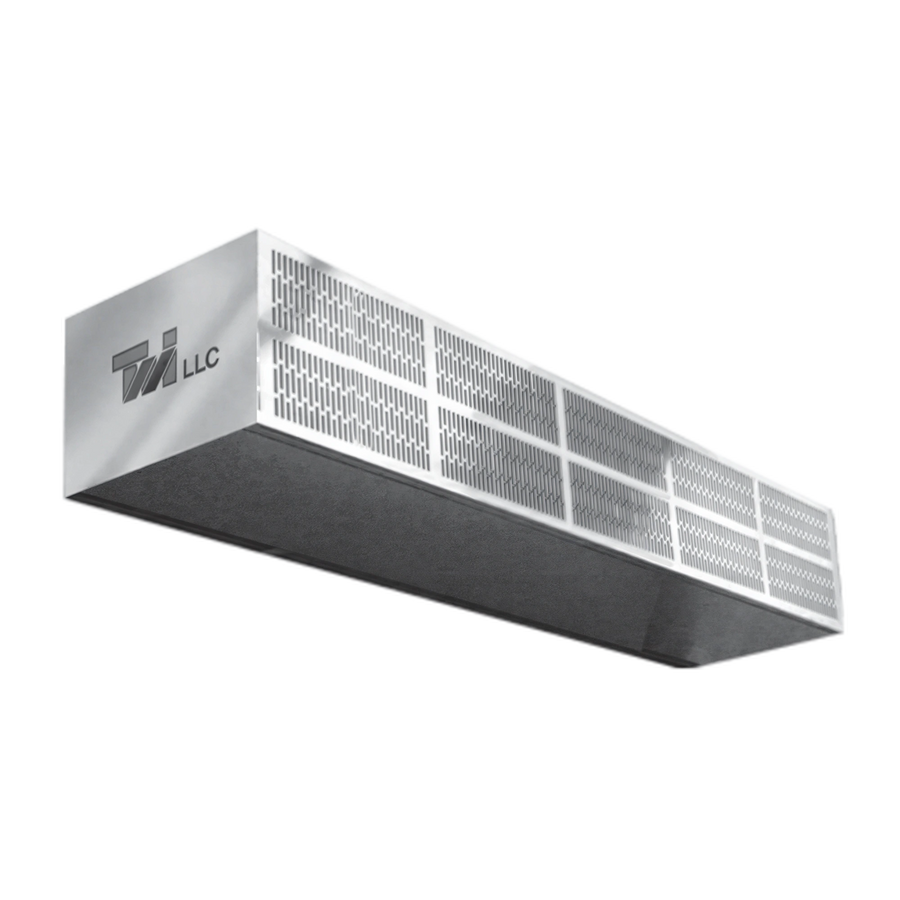

Curtron Products Curtron LP S-LP-36-1 Unheated Air Curtain, 36 in Wide, 1 Variable-Speed Motor, Stainless Steel Housing
SKU: S-LP-36-1
$2,184.84
The Curtron Products S-LP-36-1 is a low-profile, unheated air curtain designed for openings up to 10 ft high. It features one 1/5 hp variable-speed motor and a stainless steel housing for coverage across openings up to 36 in wide.
- 36 in nominal opening coverage
- One 1/5 hp variable-speed motor
- Stainless steel housing
- ETL listed and made in the USA
Overall Dimensions:
37.0"W x 11.88"D x 8.5"HLow-profile design
Designed for climate and environmental control on openings up to 10 ft high.
Variable-speed motor
Uses one 1/5 hp variable-speed motor.
Stainless steel housing
Constructed with a stainless steel housing.
Opening coverage
Covers areas up to 36 in wide and 120 in high.
Product type
Unheated air curtain
Nominal width
36 in
Motor count
1
Motor horsepower
1/5 hp
Motor type
Variable speed
Maximum opening height
10 ft
Maximum coverage width
36 in
Maximum coverage height
120 in
Housing material
Stainless steel
Maximum air velocity at nozzle
3,100 FPM
Average air velocity at nozzle
2,200 FPM
Airflow at nozzle
1,215 CFM
Outlet uniformity
95%
Sound level
53 dBA
Available motor voltage
120 V or 208/230 V
Amp draw per motor
4.4 A at 120 V; 2.0 A at 208/230 V
Weight
55 lb
Certifications & Compliance
Frequently Asked Questions
No. The S-LP-36-1 is an unheated air curtain.
It covers openings up to 36 in wide.
The maximum opening height is 10 ft, or 120 in.
It has one 1/5 hp variable-speed motor.
The housing is stainless steel.
The motor is available in 120 V or 208/230 V.
