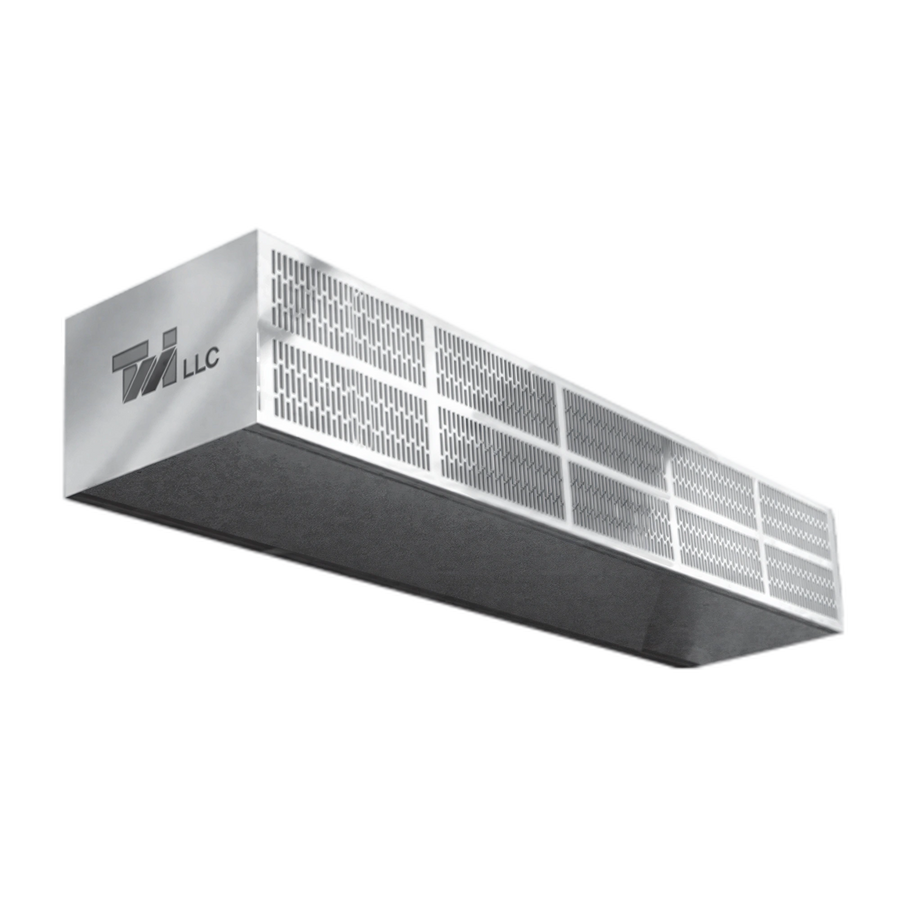

Curtron Products Curtron LP S-LP-30-1 Unheated Low-Profile Air Curtain, 30" Wide, 1/5 HP Variable-Speed Motor, Stainless Steel Housing
SKU: S-LP-30-1
$1,840.33
The S-LP-30-1 is an unheated low-profile air curtain for openings up to 30 inches wide and 120 inches high. It has a stainless steel housing and one 1/5 hp variable-speed motor.
- Maximum air velocity at nozzle: 3,100 FPM
- Airflow at nozzle: 925 CFM
- ETL listed and made in the USA
Overall Dimensions:
31.0"W x 11.88"D x 8.5"HProduct Weight:
50.0 lbUnheated operation
The S-LP-30-1 is specified as an unheated air curtain.
Variable-speed motor
One 1/5 hp variable-speed motor is included in the unit specification.
Stainless steel housing
The housing is specified as stainless steel.
Opening coverage
The unit covers openings up to 30 inches wide and 120 inches high.
Nozzle performance
The exact model is rated at 3,100 FPM maximum velocity and 925 CFM at the nozzle.
Type
Unheated
Coverage width
Up to 30 in
Maximum opening height
10 ft (120 in)
Nozzle width
29 in
Motor count
1 motor
Motor horsepower
1/5 hp
Motor speed
Variable speed
Maximum air velocity at nozzle
3,100 FPM
Average air velocity at nozzle
2,100 FPM
Airflow at nozzle
925 CFM
Outlet uniformity
92%
Sound level
53 dBA at 10 ft
Housing material
Stainless steel
Single-phase voltage
120 V or 208/230 V
Amp draw per motor
4.4 A at 120 V; 2.0 A at 208/230 V
Certifications & Compliance
Frequently Asked Questions
No. The S-LP-30-1 is specified as an unheated air curtain.
It covers openings up to 30 inches wide and 120 inches high, or 10 feet high.
It uses one 1/5 hp variable-speed motor.
The housing is stainless steel.
The airflow at the nozzle is 925 CFM.
The product is ETL listed and made in the USA.
