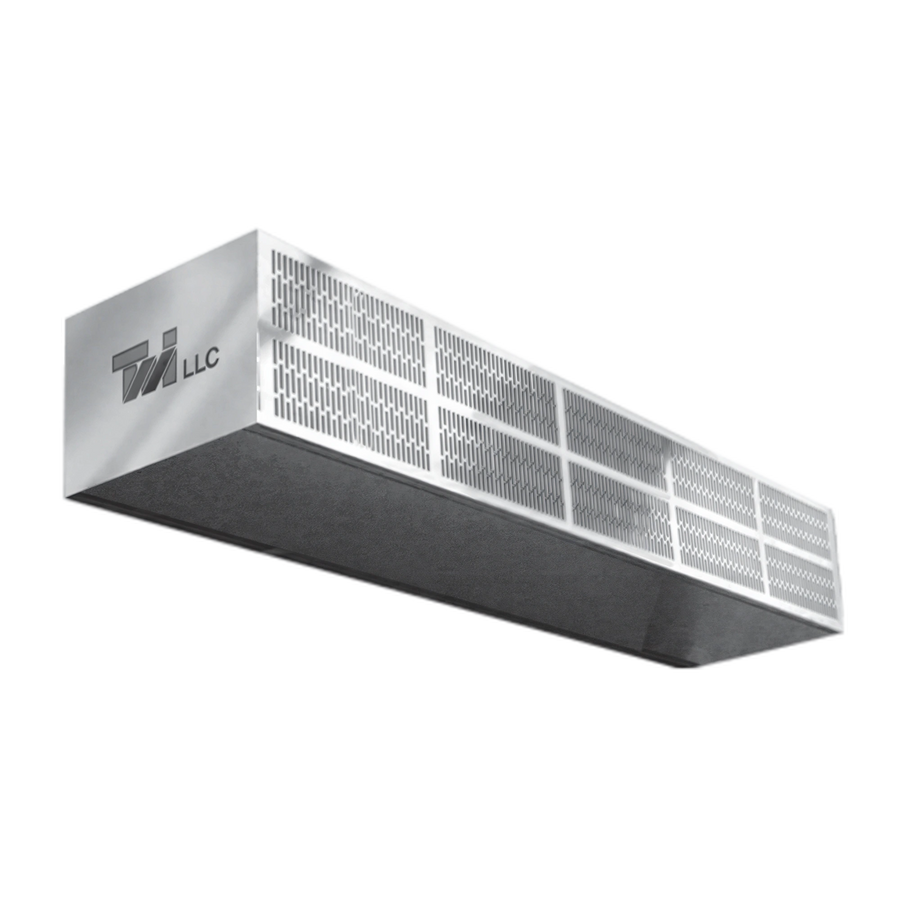

Curtron Products Curtron LP S-LP-120-2 Unheated Air Curtain, 120" Wide, 2 × 1/5 hp Motors, Stainless Steel Housing
SKU: S-LP-120-2
$5,586.18
The Curtron LP S-LP-120-2 is a low-profile, unheated air curtain for openings up to 120 inches wide and 120 inches high. It features two variable-speed 1/5 hp motors and a stainless steel housing.
- 3,970 CFM at the nozzle
- Maximum nozzle air velocity of 3,100 FPM
- ETL listed and made in the USA
Overall Dimensions:
121.0"W x 11.88"D x 8.5"HLow-profile design
Designed for climate and environmental control on openings up to 10 feet high.
Unheated operation
Provides air curtain operation without a heating function.
Two variable-speed motors
Uses two 1/5 hp variable-speed motors.
Stainless steel housing
Constructed with a stainless steel housing.
Airflow performance
The model is listed at 3,970 CFM at the nozzle, with a maximum nozzle air velocity of 3,100 FPM.
Product type
Low-profile air curtain
Heating
Unheated
Nominal width
120 in
Nozzle width
117 in
Motors
2 motors
Horsepower per motor
1/5 hp
Motor speed
Variable speed
Maximum opening height
10 ft
Maximum air velocity at nozzle
3,100 FPM
Average air velocity at nozzle
2,175 FPM
Airflow at nozzle
3,970 CFM
Outlet uniformity
95%
Voltage
120 V or 208/230 V, single phase
Amp draw per motor
4.4 A at 120 V; 2.0 A at 208/230 V
Sound level
53 dBA, measured 10 ft from the unit in a free field; based on a one-motor unit
Housing
Stainless steel
Certifications & Compliance
Frequently Asked Questions
No. The S-LP-120-2 is an unheated air curtain.
It has two variable-speed motors rated at 1/5 hp each.
The unit is specified for openings up to 120 inches wide and 120 inches high, with a maximum opening height of 10 feet.
The cutsheet lists single-phase motor voltage options of 120 V and 208/230 V. Amp draw is 4.4 A per motor at 120 V and 2.0 A per motor at 208/230 V.
The model is listed at 3,970 CFM at the nozzle, with a maximum nozzle air velocity of 3,100 FPM and an average nozzle air velocity of 2,175 FPM.
Yes. It is ETL listed and made in the USA.
