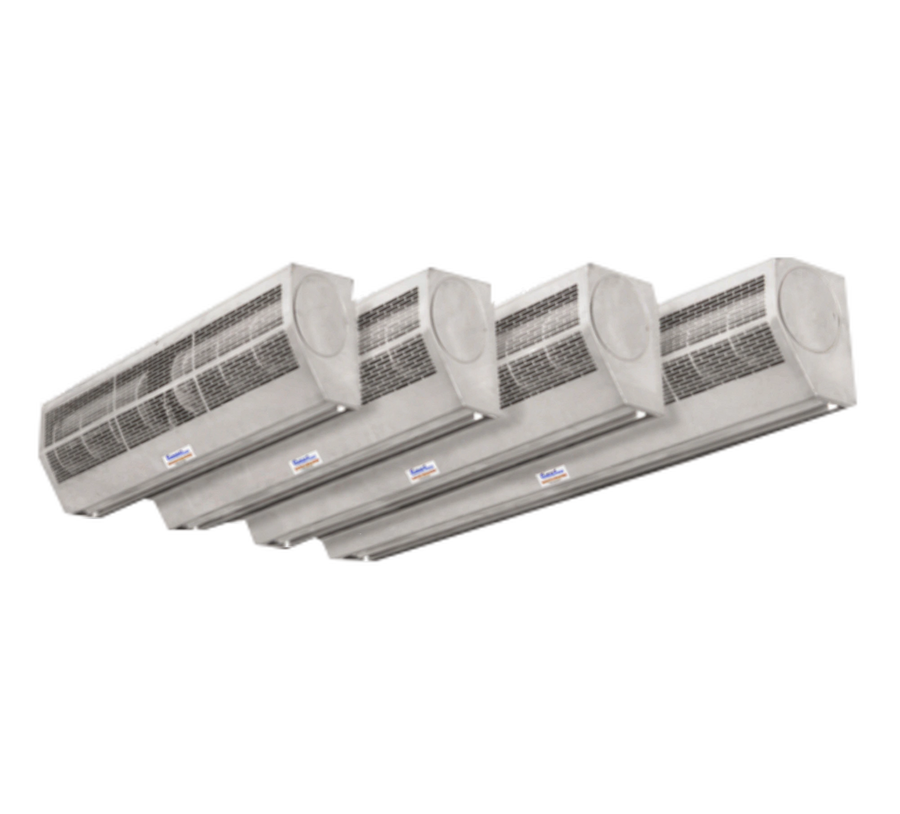

Curtron Products Air-Pro® AP-2-60-1-SS Unheated Stainless Steel Air Door, 60 in W, 1/3 hp Motor
SKU: AP-2-60-1-SS
$679.28
The Curtron Products Air-Pro® AP-2-60-1-SS is an unheated stainless steel air door for interior mounting on openings up to 84 in high.
- Motor: One 1/3 hp two-speed motor with a built-in high/low/off switch.
- Air movement: Two aluminum blower wheels and an adjustable directional vane.
- Installation: 120 V, 60 Hz, single-phase power with a 3-prong plug power cord.
- Control: Automatic door plunger switch.
Overall Dimensions:
59.0"W x 8.5"D x 10.0"HProduct Weight:
72.0 lbUnheated operation
Designed as an unheated air door for interior mounting.
Stainless steel construction
The housing, grille and nozzle are 300 grade stainless steel.
Two-speed motor
One 1/3 hp motor provides two speeds and includes a built-in high/low/off switch.
Automatic door plunger switch
An automatic door plunger switch is included.
Adjustable directional vane
The directional vane allows adjustment of airflow direction.
Aluminum blower wheels
The unit uses two aluminum blower wheels.
NSF approval
NSF approved for interior use on openings up to 84 in high.
Type
Unheated
Nominal width
60 in
Motor count
1
Motor horsepower
1/3 hp
Motor speeds
2 speeds
Blower wheels
2
Blower wheel material
Aluminum
Voltage
120 V
Frequency
60 Hz
Phase
Single phase
Power connection
3-prong plug power cord
Maximum opening height
84 in (7 ft)
Mounting location
Interior only
Nozzle width
58 in
Maximum air speed
3,150 fpm high / 2,560 fpm low
Air volume
2,330 cfm high / 1,890 cfm low
Sound level
75 dBA high / 73 dBA low
Certifications & Compliance
Warranty & Protection
One-year warranty on parts.
Frequently Asked Questions
No. It is an unheated air door.
It is NSF approved for interior openings up to 84 in, or 7 ft, high.
It uses 120 V, 60 Hz, single-phase power with a 3-prong plug power cord.
It has one 1/3 hp motor with two speeds and a built-in high/low/off switch.
The product is 59.0 in wide, 8.5 in deep and 10.0 in high, with a weight of 72 lb.
Yes. The AP-2-60-1-SS is NSF approved for interior use.
The product has a one-year warranty on parts.
