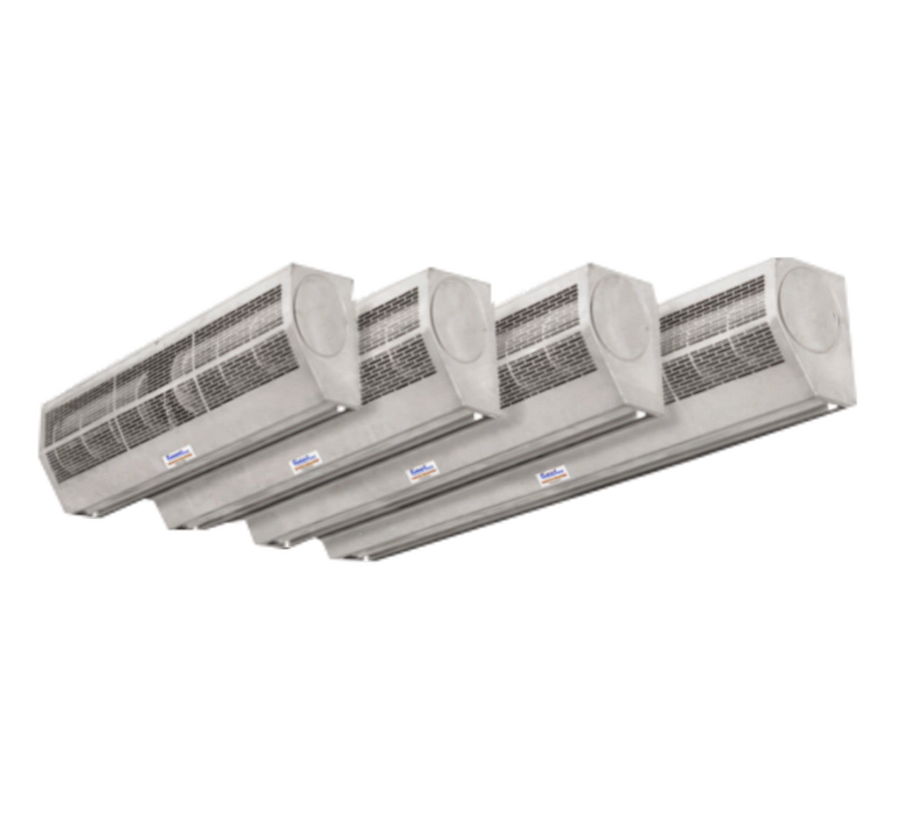

Curtron Products Air-Pro® AP-2-36-1-SS Unheated Stainless Steel Air Door, 36 in Wide, Single 1/3 hp Motor
SKU: AP-2-36-1-SS
$496.58
The Curtron Products Air-Pro AP-2-36-1-SS is an unheated stainless steel air door for interior mounting on openings up to 84 in high. It has a 36 in nominal width, one 1/3 hp two-speed motor, and two blower wheels.
- 300-grade stainless steel housing, grill, and nozzle
- Built-in high/low/off motor switch
- Automatic door plunger switch
- Adjustable directional vane
- 120 V, single-phase power with a 3-prong plug power cord
Overall Dimensions:
35.5"W x 8.5"D x 10.0"HProduct Weight:
45.0 lbStainless steel construction
The housing, grill, and nozzle are made of 300-grade stainless steel.
Two-speed motor
One 1/3 hp motor provides high and low speeds through a built-in high/low/off switch.
Dual blower wheels
The unit has two aluminum blower wheels.
Automatic door plunger switch
The automatic switch turns the air door on when the door is opened.
Adjustable directional vane
The directional vane allows adjustment of airflow direction.
Interior mounting
NSF approved for interior use on openings up to 84 in high.
Type
Unheated air door
Nominal width
36 in
Motor count
1
Motor horsepower
1/3 hp
Motor speed
Two-speed
Motor switch
Built-in high/low/off switch
Blower wheels
2
Mounting
Interior
Maximum opening height
84 in (7 ft)
Voltage
120 V
Frequency
60 Hz
Phase
Single phase
Power connection
3-prong plug power cord
Housing material
300-grade stainless steel
Grill material
300-grade stainless steel
Nozzle material
300-grade stainless steel
Blower wheel material
Aluminum
Air volume
1,220 cfm high / 990 cfm low
Maximum air speed
3,150 fpm high / 2,560 fpm low
Sound level
69 dBA high / 67 dBA low
Door switch
Automatic door plunger switch
Certifications & Compliance
Warranty & Protection
One-year warranty on parts.
Frequently Asked Questions
No. It is an unheated air door.
It is approved for interior openings up to 84 in, or 7 ft, high.
It uses one 1/3 hp two-speed motor with a built-in high/low/off switch.
The unit uses 120 V, 60 Hz, single-phase power with a 3-prong plug power cord.
Yes. It has an automatic door plunger switch.
The product has a one-year warranty on parts.
