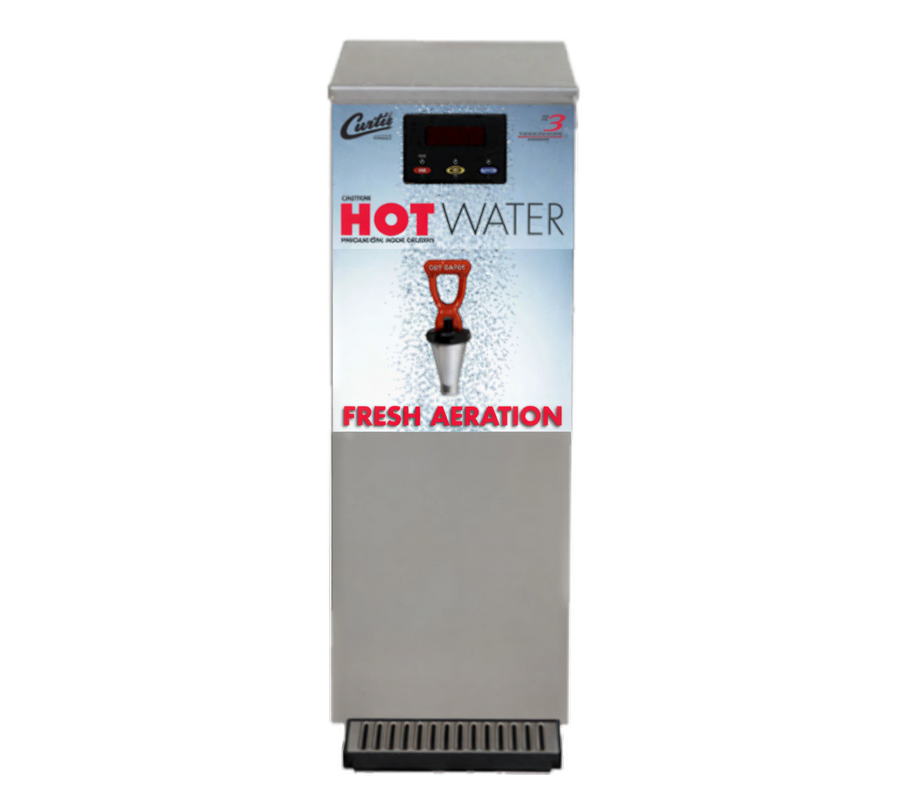

Curtis WB5GT63000 5-Gallon Digital Plumbed Automatic-Fill Hot Water Dispenser
SKU: WB5GT63000
$864.00
The Curtis WB5GT63000 is a 5-gallon digital hot water dispenser with plumbed automatic refill, aeration, and a large LED display. Thermostatic controls provide a programmable temperature range of 140°F to 210°F.
- G3 digital control module for temperature and aeration control
- Agitation pump supports continuous or on-demand aeration
- Heavy gauge stainless steel construction
- 120/220 V single-phase operation
- On-board diagnostics sense water level and temperature
Overall Dimensions:
9.25"W x 22.0"D x 24.5"HProduct Weight:
39.0 lbG3 digital control module
Provides control of temperature and aeration.
Agitation pump
Supports continuous or on-demand aeration.
Large LED display
Displays the water dispense temperature.
Automatic refill system
Provides automatic water refill.
Thermostatic controls
Programmable from 140°F to 210°F.
On-board diagnostics
Senses water level and temperature for operation.
Easy-to-operate controls
Color-coded buttons and ready lights support operating functions.
Dual-voltage operation
Supports standard 120/220 VAC operation.
Service access
Common parts and side access support servicing.
Product type
Hot water dispenser
Capacity
5 gal
Tank volume
5 gal
Controls
Digital controls
Fill type
Plumbed automatic fill
Aeration
Electric with aerator
Temperature range
140°F to 210°F
Output rate
4.5 to 15 gal/hr
Construction
Heavy gauge stainless steel
Voltage
120/220 V
Frequency
50/60 Hz
Phase
1 phase
Power
1500/5000 W
Amperage
12.5/22.7 A
Water flow
1 GPM
Wire
2/3W+G
Water pressure
20 to 90 psi
Water connection
1/4 in. flare fitting
Certifications & Compliance
Frequently Asked Questions
The dispenser has a 5-gallon capacity and a 5-gallon tank volume.
Yes. The WB5GT63000 is a plumbed automatic-fill dispenser with an automatic refill system.
Its programmable thermostatic temperature range is 140°F to 210°F.
It is specified for 120/220 V, 50/60 Hz, single-phase operation, with 1500/5000 W power and 12.5/22.7 A amperage.
The water connection is a 1/4-inch flare fitting.
The dispenser measures 9.25 inches wide, 22.0 inches deep, and 24.5 inches high, with a listed weight of 39.0 pounds.
The model is listed with ETL and cETLus certifications.
