Curtis TCC3N Iced Tea Concentrate Dispenser Tower, 3-Valve, 3 Gallon, Stainless Steel, 8-1/2" Cup Clearance
SKU: TCC3N
$650.70
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

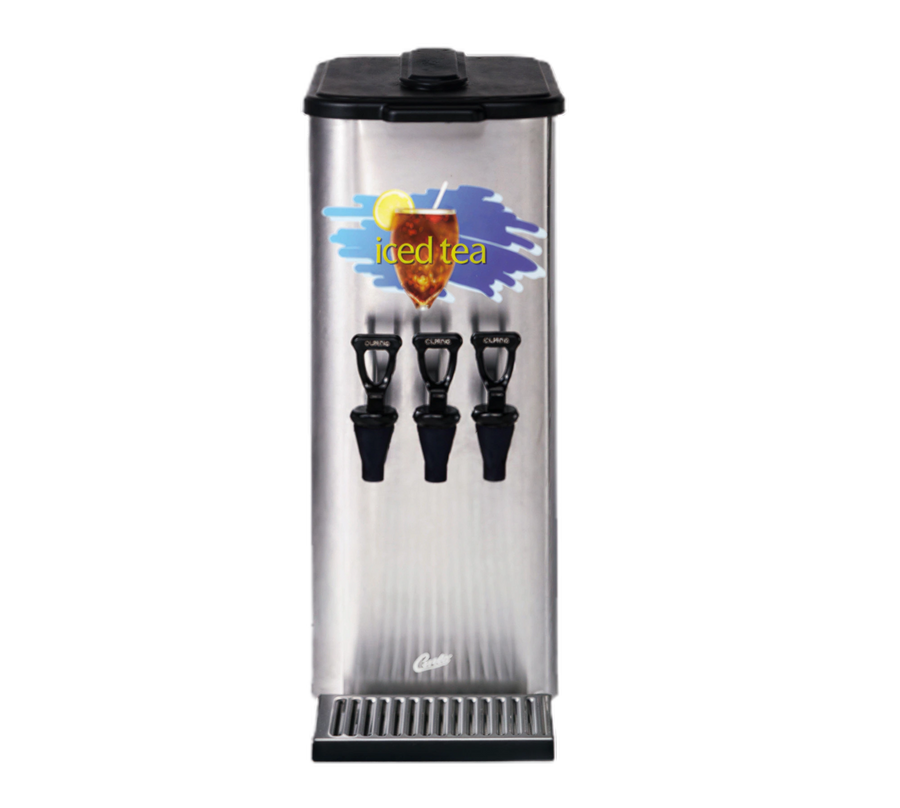

The Curtis TCC3N is a narrow iced tea concentrate dispenser tower with three dispenser heads, a 3-gallon capacity and 8.5-inch cup clearance.
- Heavy gauge 18/8 stainless steel construction.
- Includes a drip tray, quick disconnect, braided hoses and black plastic lid.
- Specified with a rear shut-off valve, 1/4-inch flare fitting and 0.6 GPM dispense flow rate.
Overall Dimensions:
9.38"W x 17.88"D x 28.13"HProduct Weight:
23.0 lbThree-valve dispensing
The unit is specified with three dispenser heads and a three-valve configuration.
Adjustable mixing ratio
The concentrate-to-water mixing ratio is adjustable.
Mixing chamber and venturi system
The dispenser uses a mixing chamber and venturi system for blending concentrate and fresh water.
Stainless steel construction
Constructed from heavy gauge 18/8 stainless steel.
Rear shut-off valve
Included components
Includes a drip tray, quick disconnect, braided hoses and black plastic lid.
Water connection
Specified with a 1/4-inch flare fitting, 1 GPM water specification and 20-90 psi pressure specification.
Type
Iced tea concentrate dispenser tower
Configuration
Narrow
Dispenser Heads
3
Capacity
3 gal
Cup Clearance
8.5 in
Dispense Flow Rate
0.6 GPM
Finish
Stainless steel
Material
Heavy gauge 18/8 stainless steel
Shut-Off Valve
Rear
Water Specification
1 GPM; 20-90 psi
Connection
1/4 in flare fitting
Included Components
Drip tray; quick disconnect; braided hoses; black plastic lid
Certification
NSF
Certifications & Compliance
Frequently Asked Questions
The TCC3N has a 3-gallon capacity.
The TCC3N has three dispenser heads.
The specified cup clearance is 8.5 inches.
The product is 9.38 inches wide, 17.88 inches deep and 28.13 inches high, with a listed weight of 23.0 pounds.
The specified included components are a drip tray, quick disconnect, braided hoses and black plastic lid.
The TCC3N is specified with a 1/4-inch flare fitting, 1 GPM water specification and 20-90 psi pressure specification.
