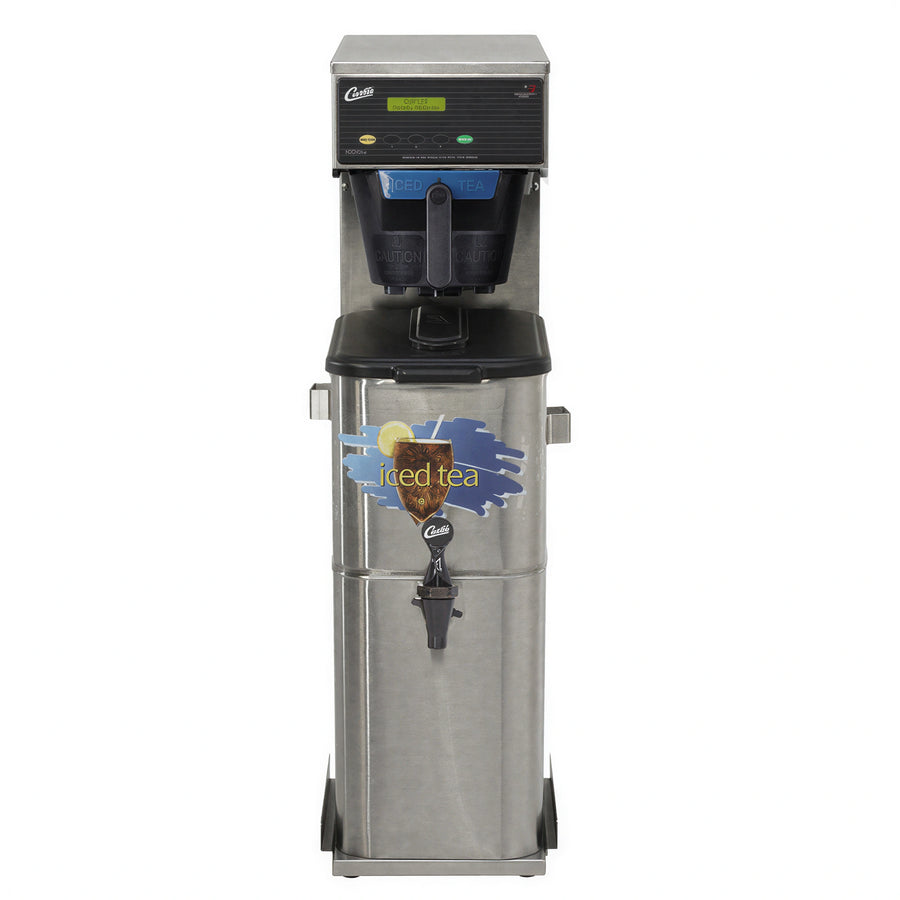

The Curtis G3 TB is a short, single pour-over tea brewer with a 3 to 5 gallon capacity and a 12 gallons-per-hour brewing rate.
Digital LCD scroll-through programming supports adjustments for time, volume, temperature, and brew functions. The stainless steel brewer operates at 120 V and includes on-board self diagnostics and cold water brew lock-out.
- 1.6 gallon water tank volume
- 20 to 90 psi water pressure requirement
- 1/4-inch flare water connection
- Dispenser sold separately
Overall Dimensions:
10.13"W x 22.88"D x 34.25"HProduct Weight:
41.0 lbDigital LCD programming
The scroll-through display supports adjustment of time, volume, temperature, and brew functions.
G3 digital control module
Provides control for pulse-brewing, delay, and other brewing functions.
On-board self diagnostics
The system senses brewing operation and displays an error code and service phone number when technical assistance is required.
Cold water brew lock-out
Prevents brewing when water temperature is below the set level.
Two precision valves
Separate valves control concentrate brewing and dilution cycles.
Fast Brew option
A selectable program option allows concentrate and dilution cycles to run at the same time.
