Curtis NIB3 Nitro Infuser Box, 3 Heads, Needle Valves, Speedfit Connections, Mounting Bracket, Stainless Steel
SKU: NIB3
$1,258.20

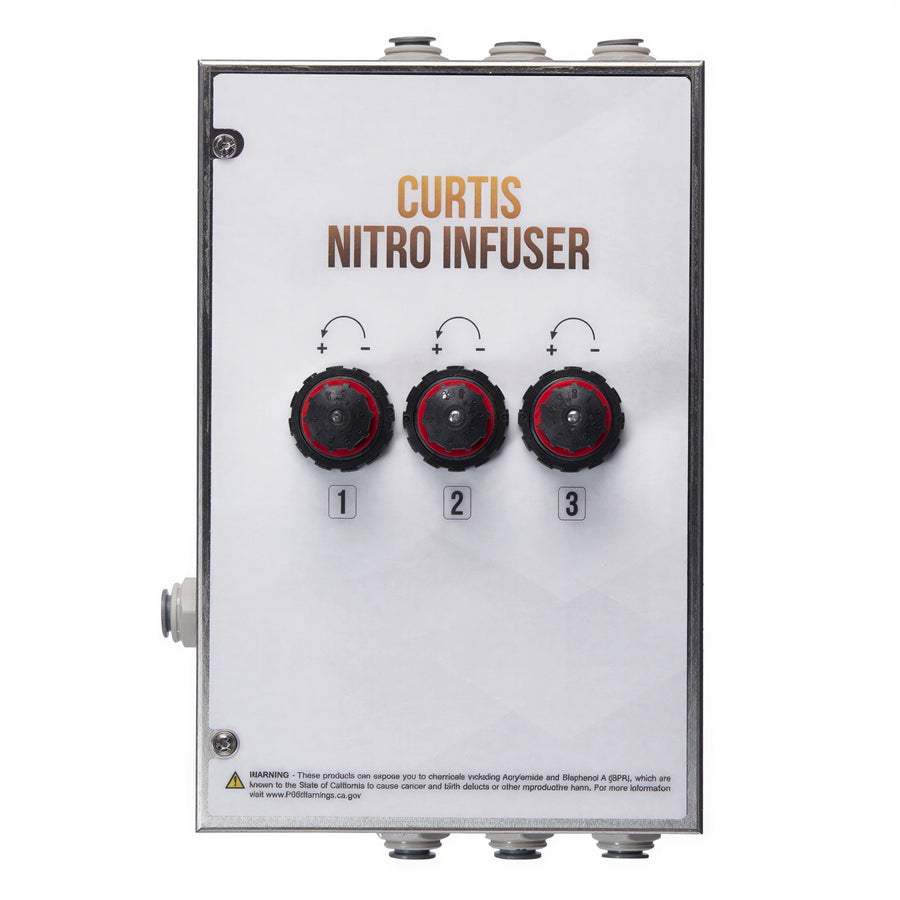

The Curtis NIB3 Nitro Infuser Box provides three heads for nitro infusion. It features needle valves for nitrogen flow regulation, stainless steel construction, a Speedfit connection system, and an included mounting bracket.
- Three-head configuration
- 3/8 push-fit beverage and nitrogen connections
- Maximum nitrogen pressure of 50 psi
Overall Dimensions:
6.43"W x 10.02"D x 4.61"HProduct Weight:
5.0 lbThree-head configuration
Provides three nitro-infusion heads.
Needle valves
Allow precise regulation of nitrogen into the liquid flow.
Speedfit connection system
Supports tubing installation for the nitro-infusion system.
Stainless steel construction
Constructed from stainless steel.
Mounting bracket
Includes a mounting bracket.
Push-fit connections
Uses 3/8 push-fit connections for the beverage inlet, beverage outlet, and N2 inlet.
Nitrogen pressure rating
Maximum N2 pressure is 50 psi.
Related Searches
Bar & Beverage Refrigeration
Best Sellers
Beverage Equipment
Beverage Equipment
Coffee Equipment
Cold Brew Equipment
Commercial Coffee Makers
Curtis
Draft Beer & Wine Cooling Equipment
Ice Machines & Beverage Equipment
New Arrivals
Refrigeration & Ice
Remote Draft Beer Refrigeration Systems
Restaurant Equipment
Product type
Nitro infuser box
Number of heads
3
Construction
Stainless steel
Connection system
Speedfit
Beverage inlet
3/8 push-fit connection
Beverage outlet
3/8 push-fit connection
N2 inlet
3/8 push-fit connection
Maximum N2 pressure
50 psi
Mounting bracket
Included
Documents
Frequently Asked Questions
The NIB3 has three heads.
The beverage inlet, beverage outlet, and N2 inlet each use a 3/8 push-fit connection.
The maximum N2 pressure is 50 psi.
Yes. A mounting bracket is included.
The NIB3 measures 4.61 inches high, 6.43 inches wide, and 10.02 inches deep.
