Curtis

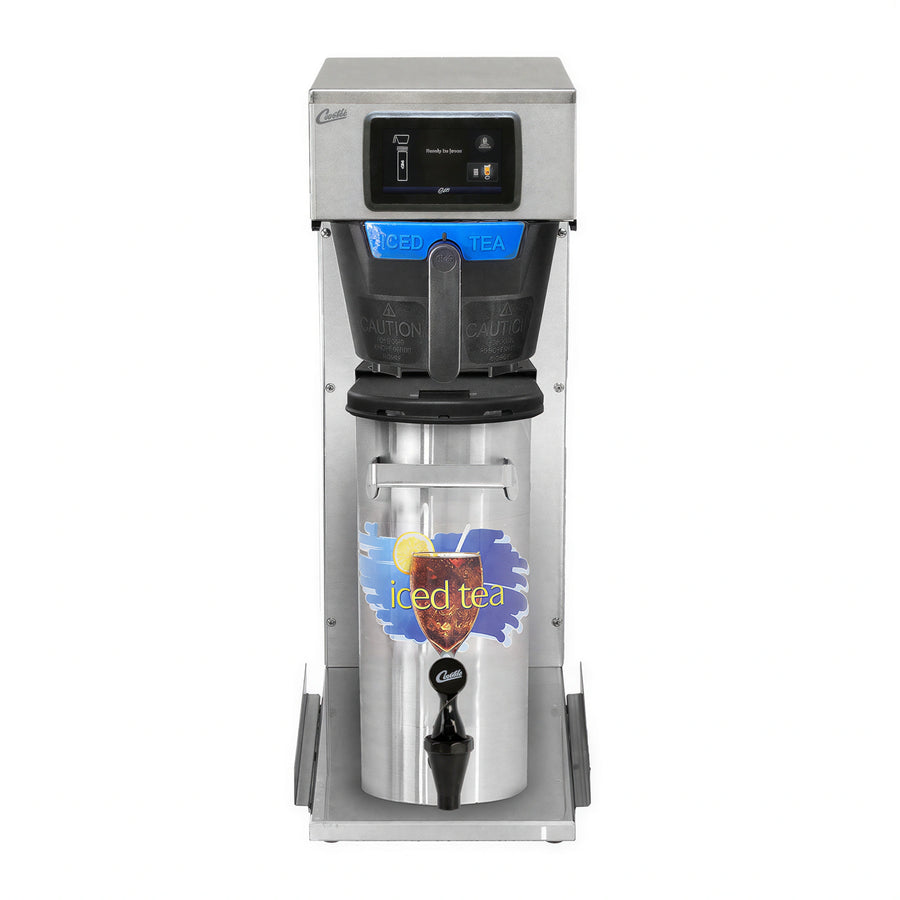

Curtis G4 G4TBS Single Automatic Commercial Tea Brewer, 3-Gallon Capacity, Low Profile, Digital Touchscreen

SKU: G4TBS
$1,128.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Commercial Tea Brewer Commercial Tea Brewers Commercial Tea Equipment & Supplies Curtis Equipment Hot Water/Beverage Dispensers Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

The Curtis G4TBS is a low-profile single automatic tea brewer with a 1.5–3.5 gallon brew capacity, 12 gallons-per-hour output, and a Generation Four digital control module.

  • Touchscreen control: A 4.3-inch digital touchscreen uses an icon-driven interface.
  • Adjustable brewing: Set time, volume, temperature, and other brewing parameters.
  • Brewing options: Includes a Fast Brew option and cold water brew lock-out.
  • Diagnostics: Built-in self-diagnostic system.
  • Utilities: Requires 120 V, 13.8 A, single-phase electrical service and a water supply rated at 20–90 psi.

Cord and plug are included. Dispenser is not included.

Overall Dimensions:

10.11"W x 22.82"D x 27.36"H

Product Weight:

33.0 lb

Generation Four digital control module

Provides the brewer's digital control interface.

4.3-inch touchscreen

Large touchscreen with an icon-driven interface.

Fast Brew option

Provides an available Fast Brew setting.

Adjustable brewing controls

Time, volume, and temperature can be adjusted.

Cold water brew lock-out

Includes a cold water brew lock-out feature.

Built-in self-diagnostic system

Provides built-in system diagnostics.

Low-profile design

Designed in a low-profile format.

Brewer configuration Single automatic
Brew capacity 1.5–3.5 gal
Brew rate 12 gal/hr
Tank volume 1.6 gal
Control interface 4.3 in. digital touchscreen
Voltage 120 V
Phase 1 phase
Amperage 13.8 A
Frequency 50/60 Hz
Power 1650 W
Heat configuration 1 x 1600 W
Wire configuration 2W+G
Minimum circuit 15 A
Water pressure 20–90 psi
Minimum flow rate 1.0 GPM
Water connection 1/4 in. flare fitting
Included items Cord and plug
Dispenser Not included

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The G4TBS has a 1.5–3.5 gallon brew capacity.
Yes. It has a 4.3-inch digital touchscreen with an icon-driven interface.
The brew time, volume, and temperature can be adjusted.
It requires 120 V, single-phase, 50/60 Hz electrical service at 13.8 A and 1650 W. The water supply must provide 20–90 psi and a minimum flow rate of 1.0 GPM through a 1/4-inch flare fitting.
No. The dispenser is not included.
