Crown (Middleby)  |  SKU: SXN-4M

Crown (Middleby) SXN-4M Steamers (Countertop & Floor)

$11,210.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Crown steam group letter Installation & operation manual Parts list Warranty sheet
Related Searches
Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

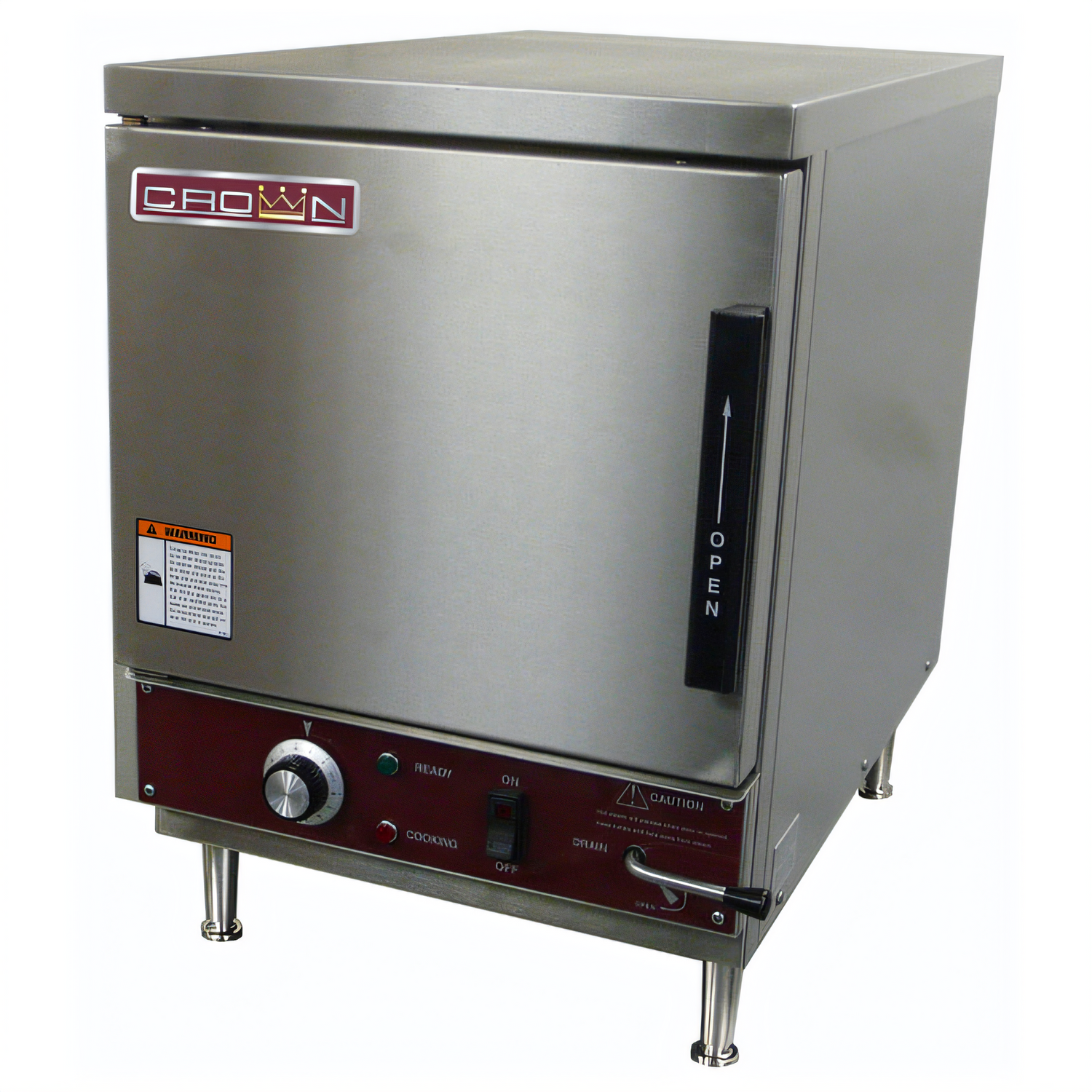

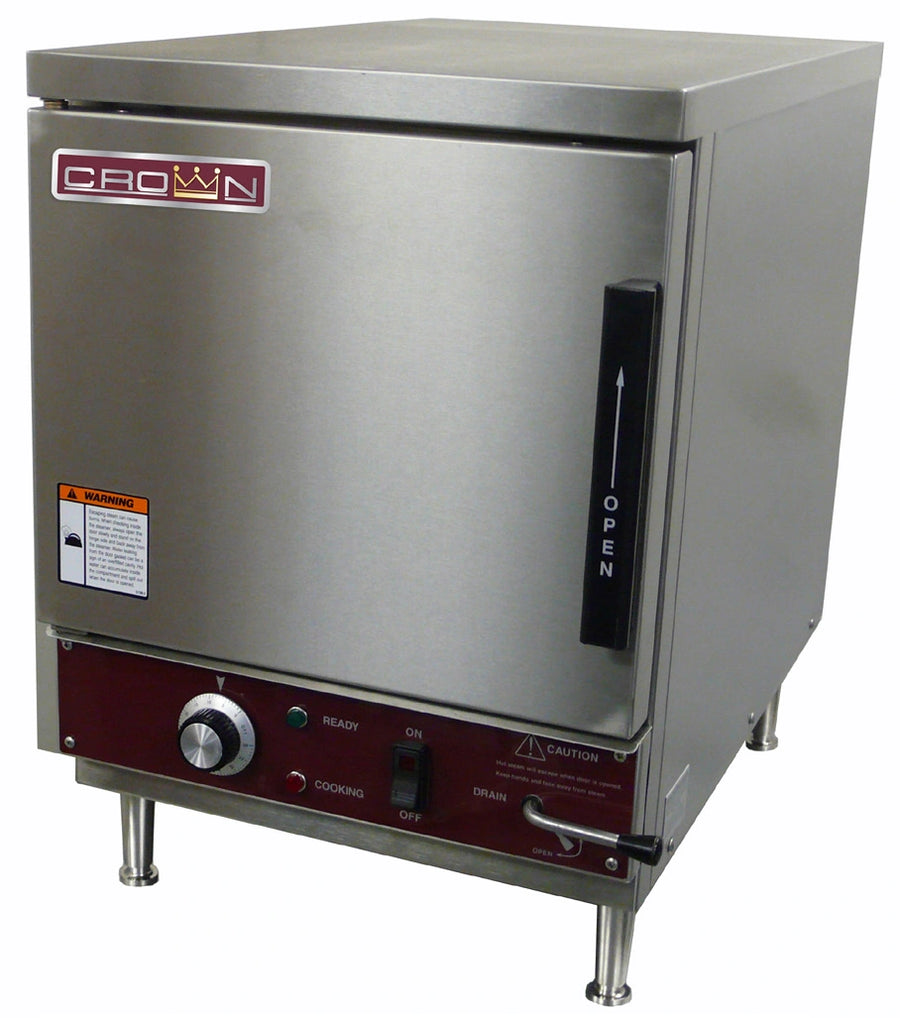

Crown SXN-4M Electric Countertop Convection Steamer

4-pan, boiler-free steam generation – auto-fill / manual drain

Designed for demanding commercial kitchens that need high-volume steaming in a compact footprint, the Crown SXN-4M delivers powerful boiler-free, 10 kW steam with simple electromechanical controls and built-in water treatment. Steam up to four 12" × 20" pans simultaneously while enjoying rock-solid Crown reliability and NSF sanitation peace-of-mind.

Key features

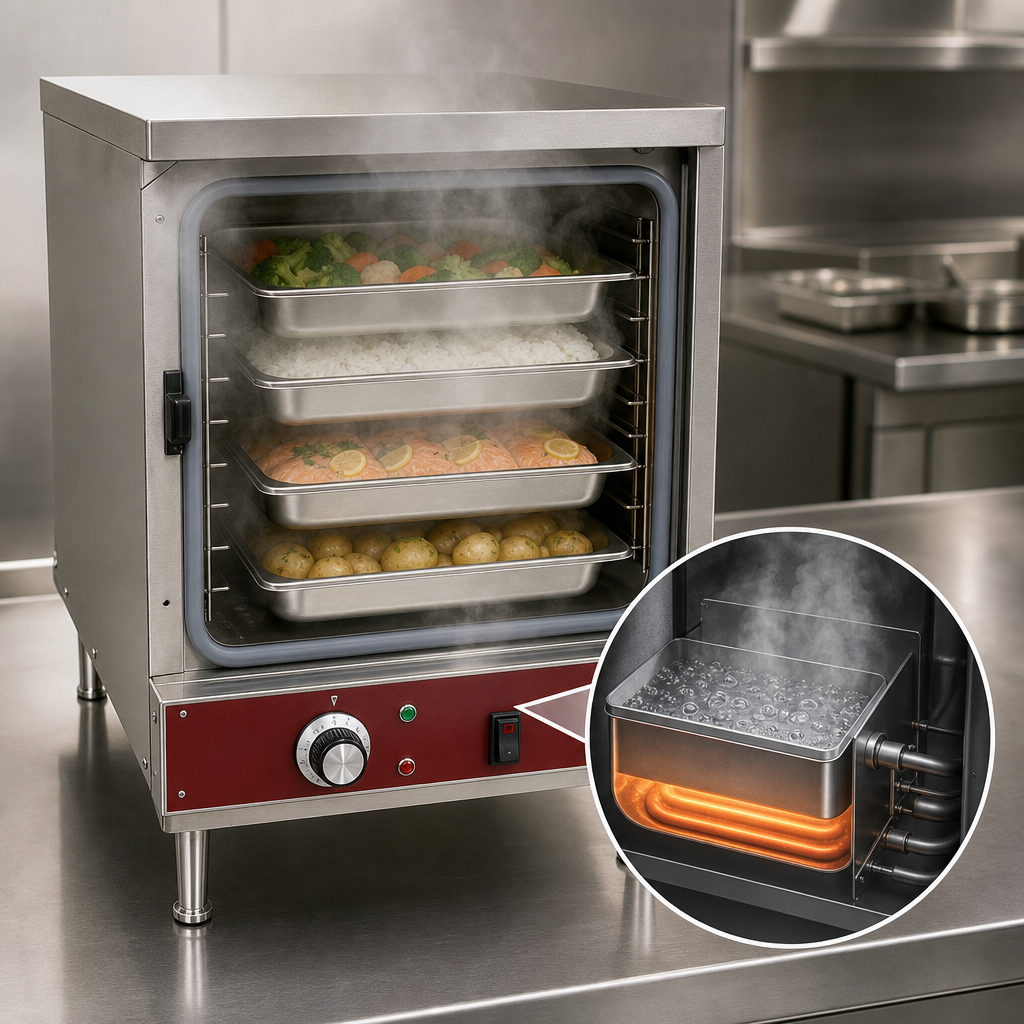

  • Boiler-free electric steam generator – eliminates separate boiler maintenance

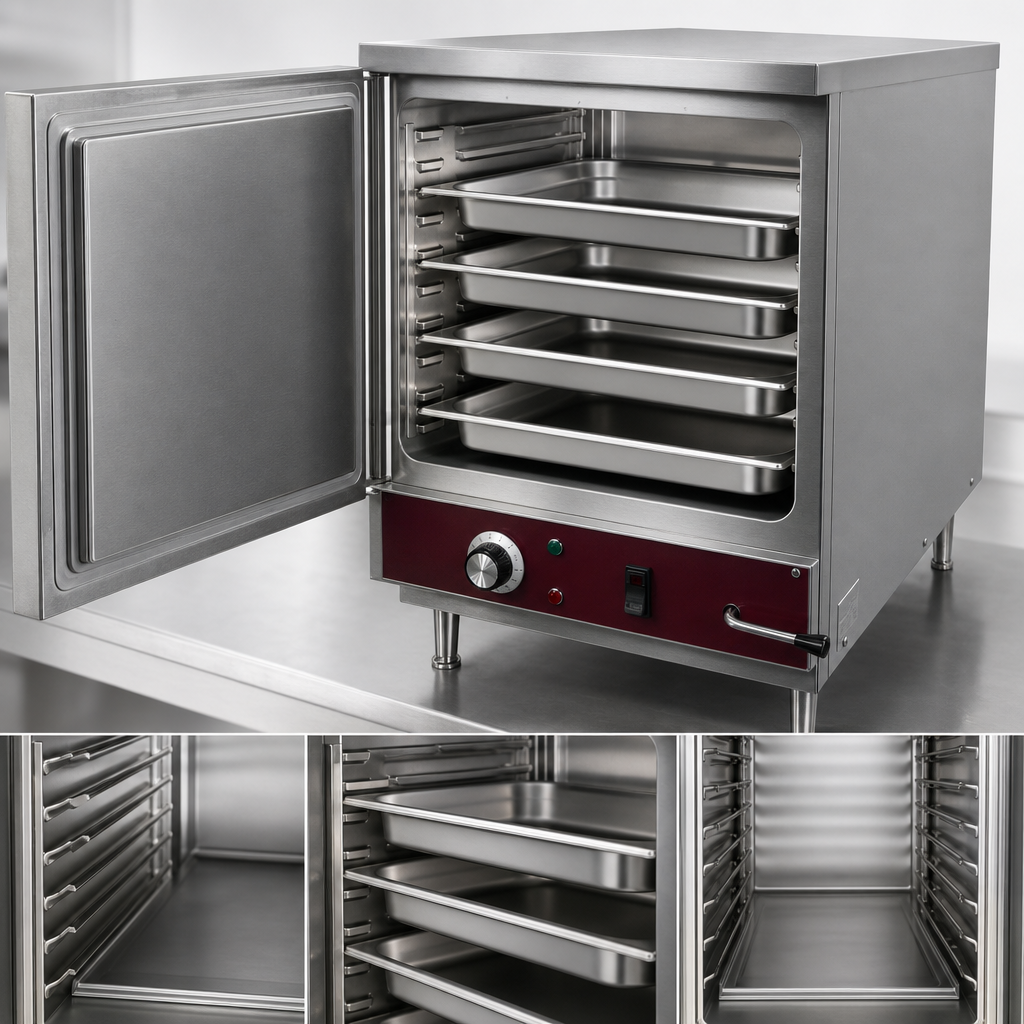

  • 4-pan, single compartment with 316 SS coved-corner liner for quick clean-ups
  • Automatic water fill & manual blow-down drain for operator control
  • Three-position power switch (ON / OFF / Delime) plus rear delime port
  • 60-minute electro-mechanical timer with audible end-of-cycle buzzer
  • “Ready” & “Cooking” indicator lights for at-a-glance status
  • Heavy-gauge, spring-assist door with full perimeter gasket & positive lock
  • Removable stainless pan supports and 4" adjustable legs
  • Factory-supplied water filter system & “Y” strainer
  • Drain tempering system meets 140 °F (60 °C) requirements (½" cold-water feed)
  • Durable 304 SS exterior; cCSAus & NSF listed for commercial use
  • Field-convertible 3-phase to 1-phase wiring (208 / 220 / 240 V)

Performance you can count on

Opening the door automatically interrupts steam flow for operator safety, then restarts it the moment the door is closed—keeping cook times consistent without wasting energy. The integrated liquid-level controls protect the heater elements and ensure a constant head of steam for even cooking results every batch.

Specifications

Capacity 4 × 12" × 20" × 2.5" pans (or 8 × 1" pans)
Steam generation Electric, boiler-free, 10 kW
Electrical (amp draw) 208 V 1 Ø 48.1 A / 3 Ø 27.8 A
220 V 1 Ø 38.2 A / 3 Ø 22.1 A
240 V 1 Ø 41.7 A / 3 Ø 24.1 A
Water connections 3⁄8" O.D. tubing – generator & cold water
½" NPT delime port
Drain 1" NPT
Overall dimensions 16.9"W × 29"D × 23.3"H (429 × 737 × 590 mm)
Shipping weight 155 lb / 70 kg
Certifications cCSAus, NSF

Included with every steamer

  • Complete water treatment cartridge system
  • Stainless “Y” strainer (condenser feed)
  • Removable stainless pan racks
  • Installation & operation manual

Popular options (factory installed)

  • Constant steam mode switch
  • 120-minute timer
  • Drain hose kit
  • 28" single-unit or 23" double-stack stands
  • Correctional package
Water quality matters: total dissolved solids must be <60 PPM, pH 6.8 – 7.3. Failure to meet these limits voids warranty coverage.

Intended for commercial use only – not for household installations.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

26.38in

Width

18.13in

Depth

29.0in

Shipping Weight

155.0lbs

Operation

electric operation

Pan / Tray Size Capacity

12" x 20" pans

Capacity per Compartment

2 - 5 pans / trays

Specifications

Convection Steamer, electric, countertop, steam generator, (1) compartment, (4) 12" x 20" pan capacity, automatic fill, manual drain operation, electromechanical controls, three way power switch (ON/OFF/Delime), 60 minute timer, removable pan supports, includes water filter system, "Y" strainer, 316 stainless steel liner, 304 stainless steel exterior, 4" adjustable legs, cCSAus, NSF
