Crown (Middleby)  |  SKU: SXN-4

Crown (Middleby) SXN-4 Steamers (Countertop & Floor)

$12,255.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation manual Middleby financial flyer Crown steam group letter Warranty sheet
Related Searches
Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

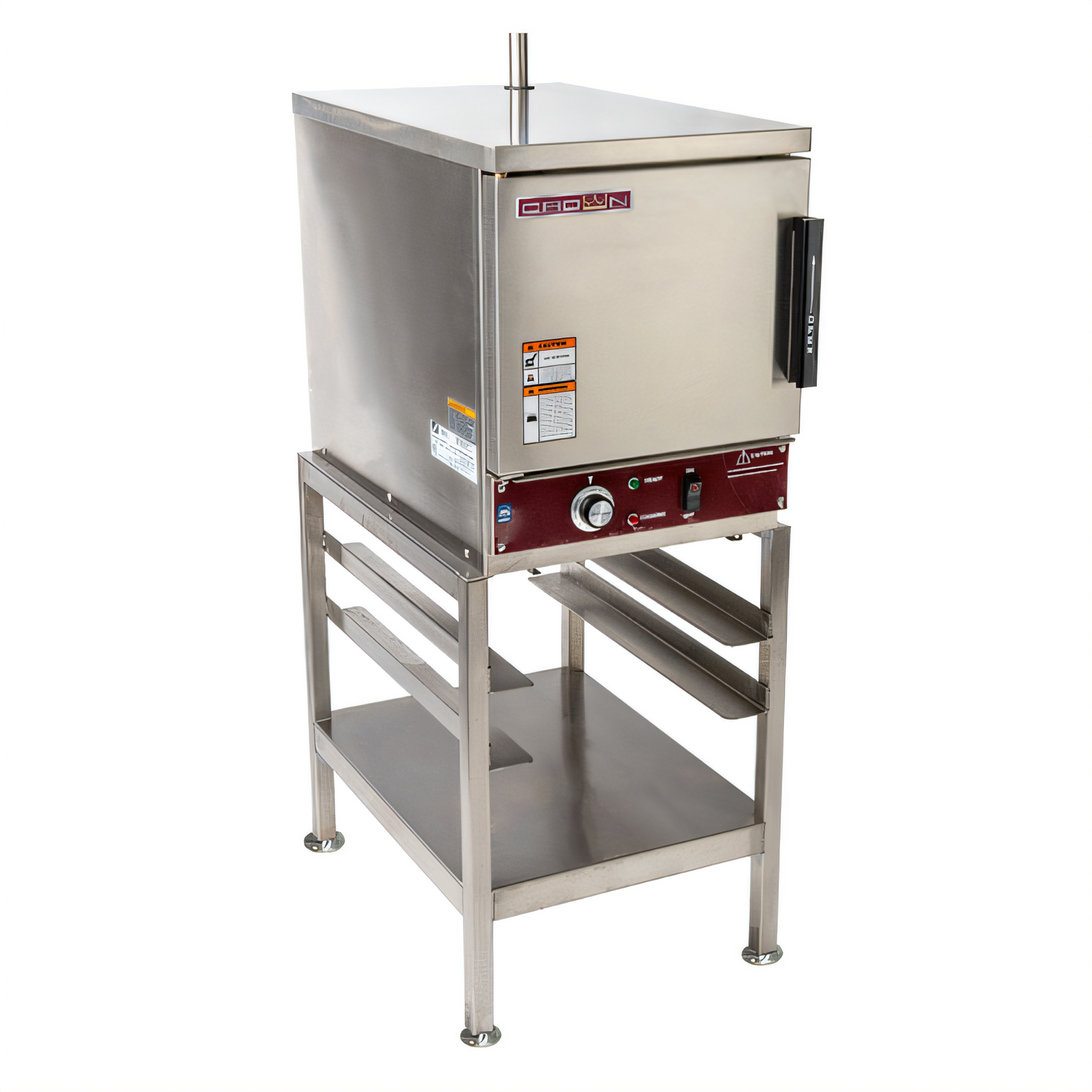

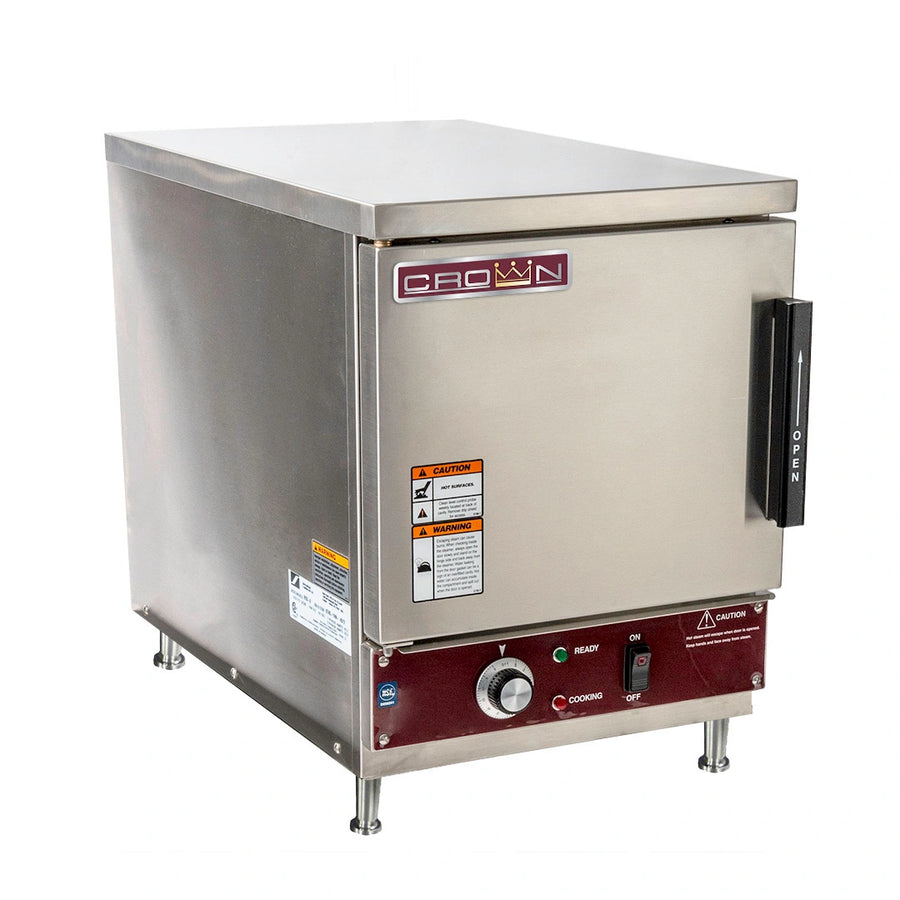

Crown SXN-4 Countertop Electric Convection Steamer

4-pan capacity • 10 kW steam generator • Auto Fill / Auto Drain

Turn out perfectly steamed vegetables, proteins and more in minutes—all from a steamer that’s barely 17″ wide. The Crown SXN-4 delivers high-volume performance, rugged stainless construction and built-in water treatment, making it the smart, space-saving upgrade for any commercial kitchen.

Why You’ll Love It

  • Holds up to (4) 12 × 20 × 2.5″ full-size hotel pans (or 8 pans at 1″ depth).
  • Powerful 10 kW steam generator operates at 0 psi for even, gentle convection steam.
  • Auto Fill & Auto Drain with an automatic blow-down valve—less daily maintenance.
  • Three-position illuminated power switch (ON / OFF / De-lime) plus 60-minute timer with end-of-cycle buzzer.

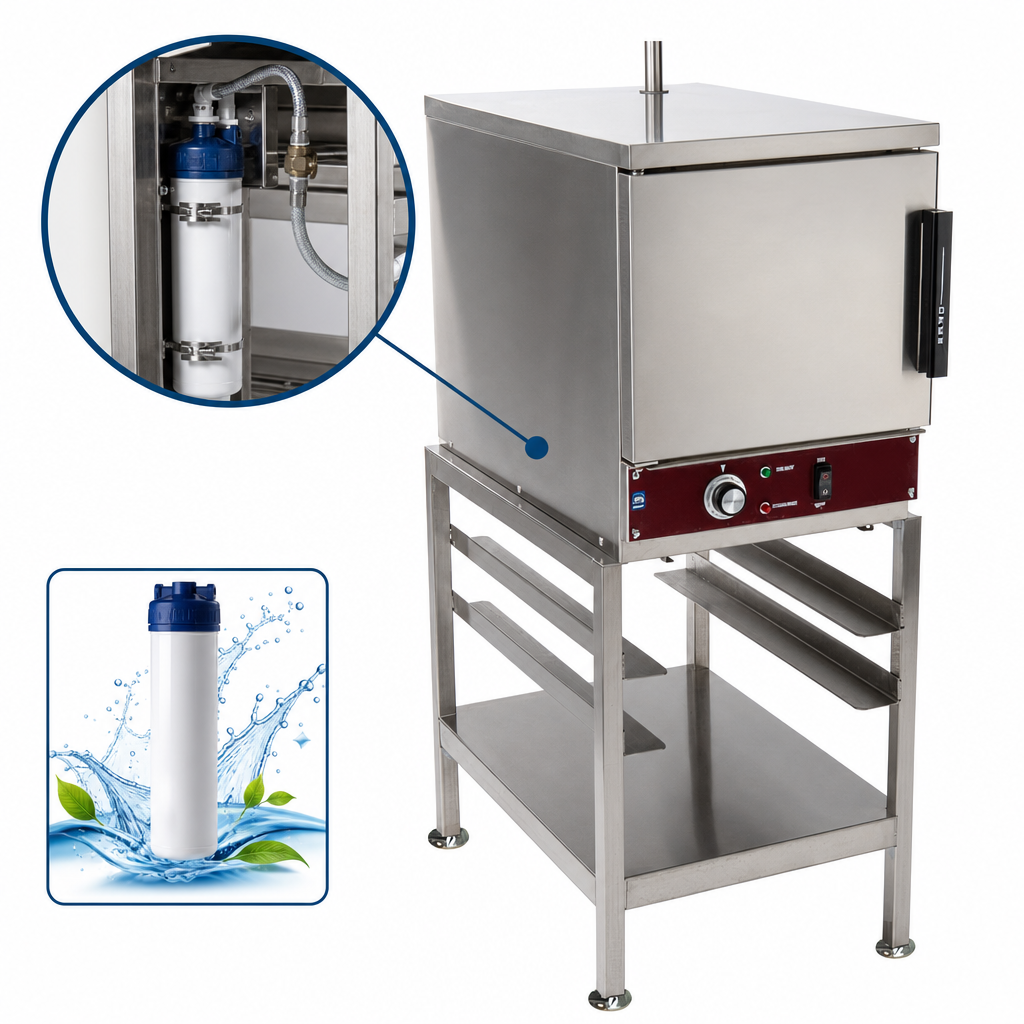

  • Factory-included water treatment system; split water connections simplify installation.
  • Rear de-liming port and dedicated de-lime mode for fast, safe cleaning.

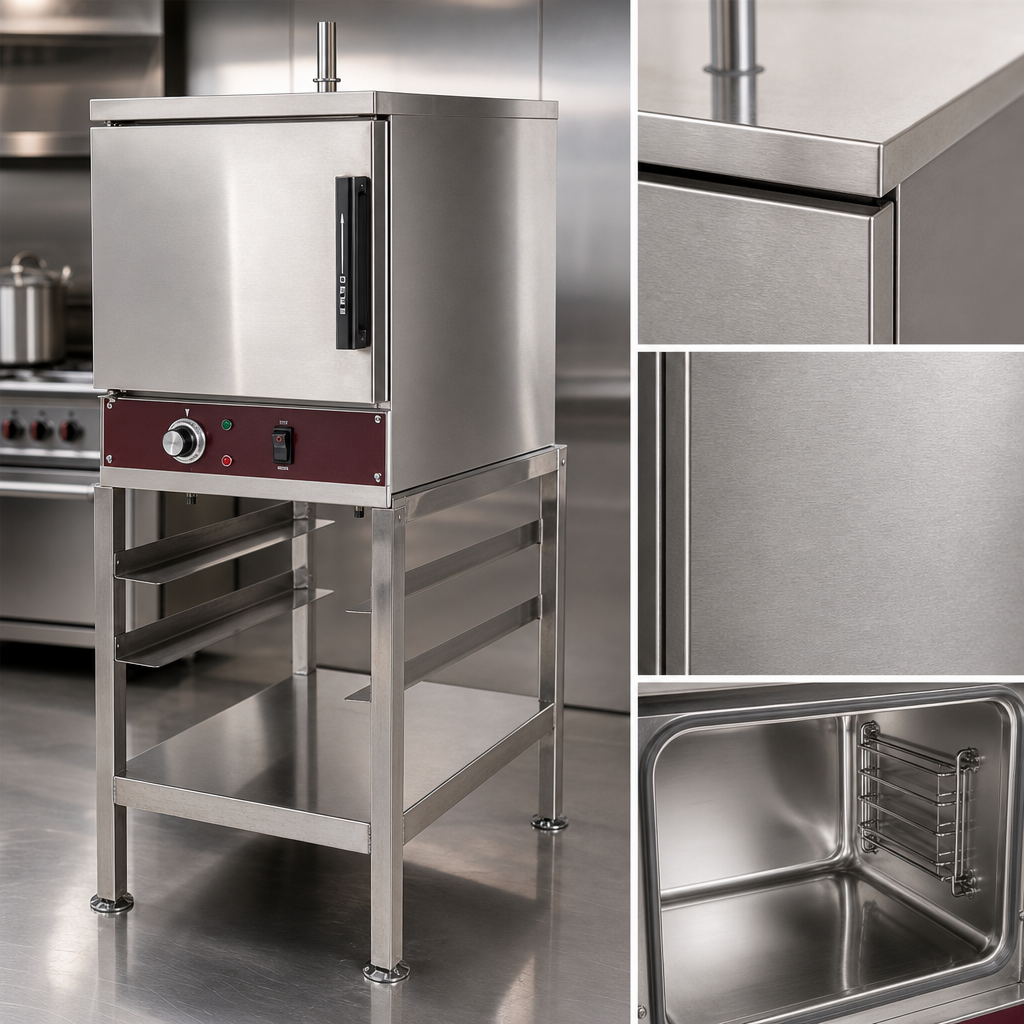

  • Durable 316 stainless-steel chamber & 304 stainless exterior withstand heavy commercial use.
  • Heavy-gauge door with full-perimeter gasket, spring-assist release and positive lock/seal.
  • Removable stainless pan supports and coved interior corners for quick wipe-down.
  • Drain-tempering system meets 140 °F (60 °C) code—requires ½″ cold-water feed.
  • Field-convertible from 3-phase to single-phase (208 / 220 / 240 V).
  • Mounted on 4″ adjustable legs with leveling feet—stacking kit & stands available.
  • Certified cCSAus & NSF; backed by Crown Steam Group’s commercial warranty.

Technical Specifications

Model Crown SXN-4
Compartments 1
Pan Capacity (4) 12 × 20 × 2.5″ pans • (8) 1″ pans • (2) 4″ pans
Steam Generator Electric, 10 kW, field-replaceable elements, 0 psi
Voltage / Phase 208 / 220 / 240 V, 3-ph (field convertible to 1-ph)
Amps (208 V) 27.8 A (3-ph) | 48.1 A (1-ph)
Dimensions (W × D × H) 16.9″ × 29″ × 24″ including 4″ legs (430 × 737 × 610 mm)
Water Connections 3⁄8″ OD cold water @ 25-50 psi (x2) • 1″ NPT drain • ½″ cold water for drain tempering
Shipping Weight 172 lb (78 kg)
Certifications cCSAus, NSF
Water quality matters: to maintain warranty coverage, supply water must not exceed 60 ppm total dissolved solids, 20 ppm alkalinity, 13 ppm silica and 1.5 ppm chlorine (pH 6.8 – 7.3). The included water filter helps keep your steamer in top condition.

Intended for commercial use only. Specifications subject to change without notice.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

26.5in

Width

18.0in

Depth

29.0in

Shipping Weight

172.0lbs

Operation

electric operation

Pan / Tray Size Capacity

12" x 20" pans

Capacity per Compartment

2 - 5 pans / trays

Specifications

Convection Steamer, electric, countertop, steam generator, (1) compartment, (4) 12" x 20" pan capacity, electromechanical controls, three way power switch (ON/OFF/Delime), 60 minute timer, removable pan supports, automatic blow down valve, split water connection, de-liming port, includes water filter system, 316 stainless steel liner, 304 stainless steel exterior, 4" adjustable legs with leveling feet, cCSAus, NSF
