Crown (Middleby)

Crown SX-5G3 Single Compartment Countertop Gas Convection Steamer with 5 Pan Capacity

SKU: SX-5G3
$15,525.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Countertop Steamer Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

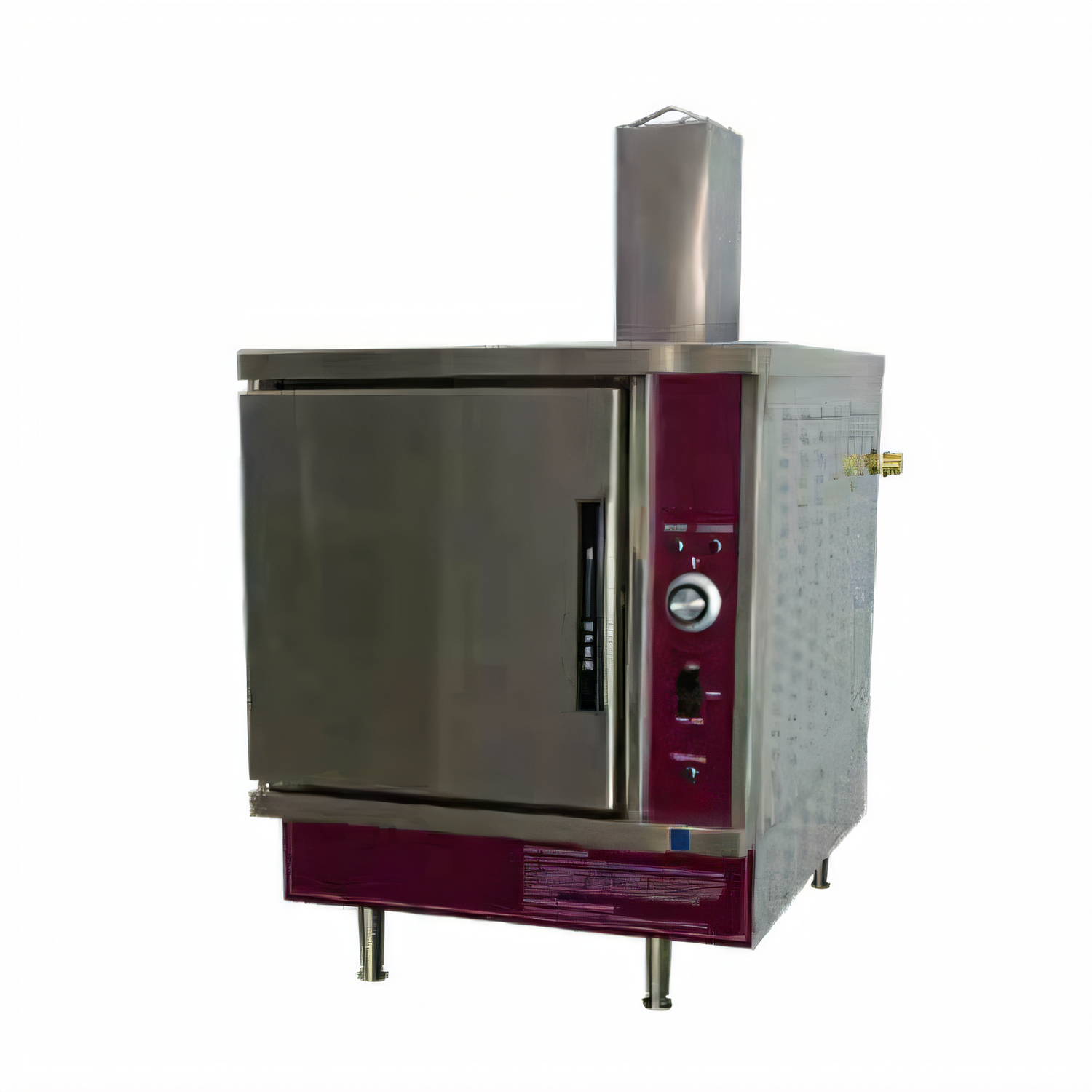

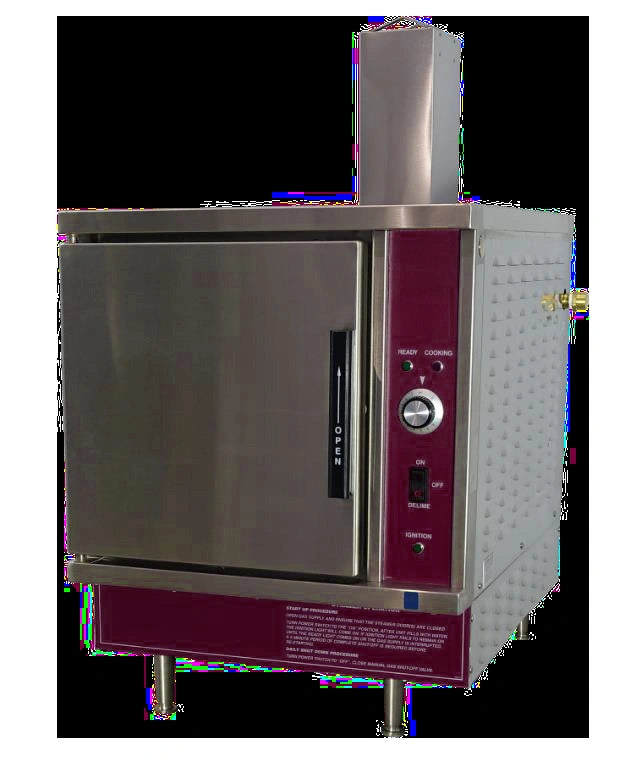

Crown SX-5G3 Single Compartment Countertop Gas Convection Steamer with 5 Pan Capacity

Full-Size, Natural Gas or Propane, Electromechanical Controls

Experience efficient and reliable steam cooking with the Crown SX-5G3, a robust gas-fired convection steamer designed for demanding commercial kitchens.

  • Efficient gas-fired steam generator with 47,000 BTU for quick and consistent steam production.
  • Single cooking compartment accommodates up to five full-size, 2-1/2 inch deep steam table pans.
  • Constructed with a durable 304 stainless steel exterior and a high-grade 316 stainless steel cooking chamber.
  • Features an integrated water treatment system and electronic ignition for optimal performance and longevity.
  • Equipped with user-friendly electromechanical controls and a precise 60-minute electric timer.
  • Automatic fill, drain, and generator blow down systems simplify operation and maintenance.
  • Certified by CSA Star, CSA Flame, and NSF for safety and sanitation in commercial use.

Overall Dimensions:

24.0"W x 32.5"D x 39.56"H

Product Weight:

250.0 lb

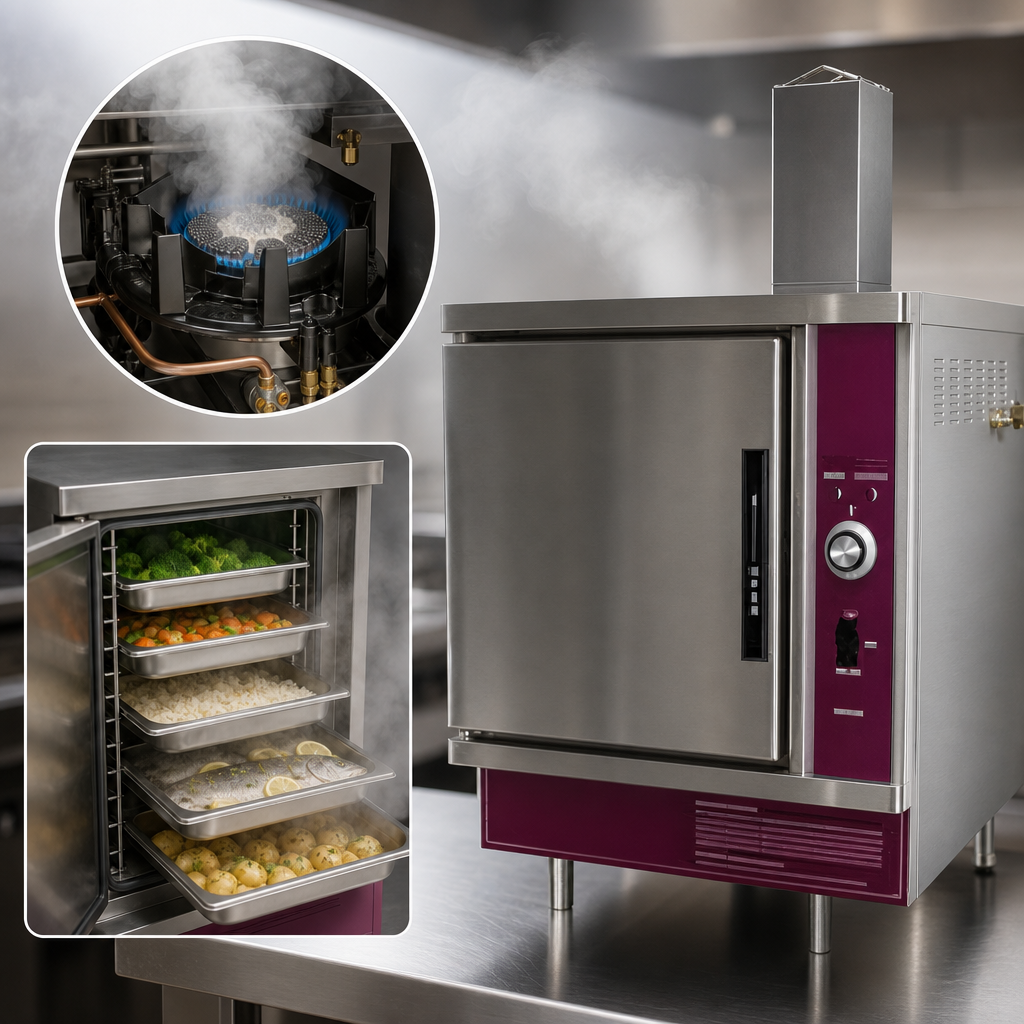

Gas Fired Steam Generator

Operates at 0 psi, rated at 47,000 BTUs, ensuring powerful and consistent steam generation for efficient cooking.

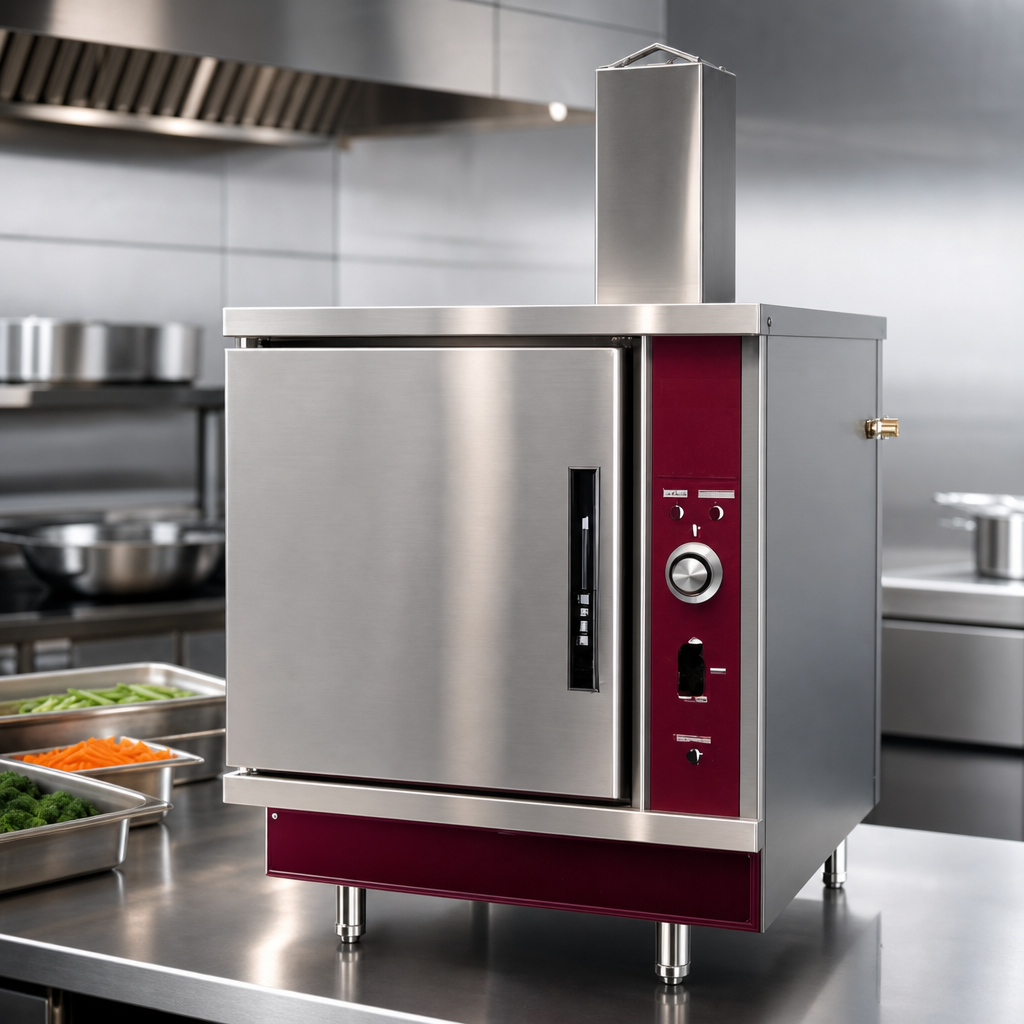

304 Stainless Steel Exterior

Provides exceptional durability, corrosion resistance, and a professional aesthetic for long-term commercial use.

316 Stainless Steel Cooking Chamber

Features a one-piece all-welded construction with coved corners, offering superior sanitation, strength, and ease of cleaning.

Heavy Gauge Stainless Steel Door

Designed with a full perimeter gasket seal, a positive lock, and a spring release mechanism for secure sealing and convenient access; steam flow is interrupted when the door is opened.

Electromechanical Controls

Includes an illuminated three-way power switch (On/Off/De-lime), pilot ready light, pilot cooking light, and a 60-minute electric timer with an audible alarm at the end of the cooking cycle.

Water Treatment System Included

Comes standard with a water treatment system, utilizing split water connections for easy hook-up, crucial for maintaining water quality and warranty validity.

Automatic Fill & Drain Operation

Ensures continuous water supply to the generator and efficient draining, simplifying daily operation.

Automatic Generator Blow Down

Incorporates a de-lime mode power setting and a convenient de-liming port on the right side panel for effortless maintenance and extended generator life.

Removable Stainless Steel Pan Supports

Allows for flexible cavity configuration and easy removal for thorough cleaning.

Stainless Steel Drip Trough

Integrally connected to the drain, this feature efficiently collects condensate when the door is opened, keeping your kitchen area dry.

Electronic Ignition

Provides reliable and safe startup of the gas burner.

Drain Tempering System

Requires a 1/2-inch cold water connection to temper drain water to a safe 140 degrees Fahrenheit.

4" Adjustable Legs

Stainless steel legs allow for proper leveling on various surfaces and facilitate cleaning underneath the unit.

Type Convection Steamer
Style Countertop
Installation Type Countertop
Compartments 1
Pan Capacity 5 Full-Size Pans (2-1/2" deep)
BTU 47,000 BTU/Hr
Gas Type Natural Gas or Propane
Gas Connection Size 3/4" IPS
Gas Inlet Pressure (Natural Gas) 6" - 14" W.C.
Gas Inlet Pressure (Propane) 11" - 14" W.C.
Electrical Connection 120 Volts, 1-Phase, 60 Hz (Standard)
Amps 2.0 Amps
Watts 240 Watts
Plug Type 3-Prong
Cord Length 6 Feet
Generator Water Connection 3/8" O.D. tubing
Condensing Water Connection 3/8" O.D. tubing
Water Inlet Pressure 25-50 psi
Drain Connection Size 1" IPS
Controls Electromechanical Controls
Timer 60 Minute Electric
Exterior Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Adjustable Legs 4 Inches
Country of Origin Canada
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 40 Inches
Shipping Weight 250 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Warranty coverage is contingent upon the installation and proper maintenance of a water treatment system, with malfunctions due to poor water quality not being covered.

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Crown steam group letter PDF Download PDF Middleby financial flyer PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown SX-5G3 steamer has a single compartment with a capacity for 5 full-size steam table pans, 2-1/2 inches deep. It can also hold 10 one-inch pans, 3 four-inch pans, or 2 six-inch pans.
A comprehensive water treatment system is required to meet specific water quality guidelines (e.g., Total dissolved solids less than 60 PPM, pH between 6.8-7.3). Proof of installation and proper cartridge replacement is mandatory for warranty coverage, as failure due to poor water quality is not covered.
The standard electrical connection for the SX-5G3 is 120 Volts, 1-Phase, 60 Hz, drawing a maximum of 2.0 Amps. It comes with a 6-foot cord and a 3-prong plug. A 220 VAC, 1-Phase, 50/60 Hz option is also available.
No, the Crown SX-5G3 is explicitly noted as 'UNIT IS NOT STACKABLE,' even with an optional stand.
The steamer operates on either Natural Gas or Propane, requiring a 3/4 inch IPS supply line. The supply pipe pressure should be 6-14 inches W.C. for Natural Gas and 11-14 inches W.C. for Propane.
Yes, the SX-5G3 includes an automatic generator blow down with a de-lime mode power setting and a de-liming port on the right side panel, designed to simplify maintenance and ensure generator longevity.
