Crown (Middleby) SX-5 Steamers (Countertop & Floor)
Description

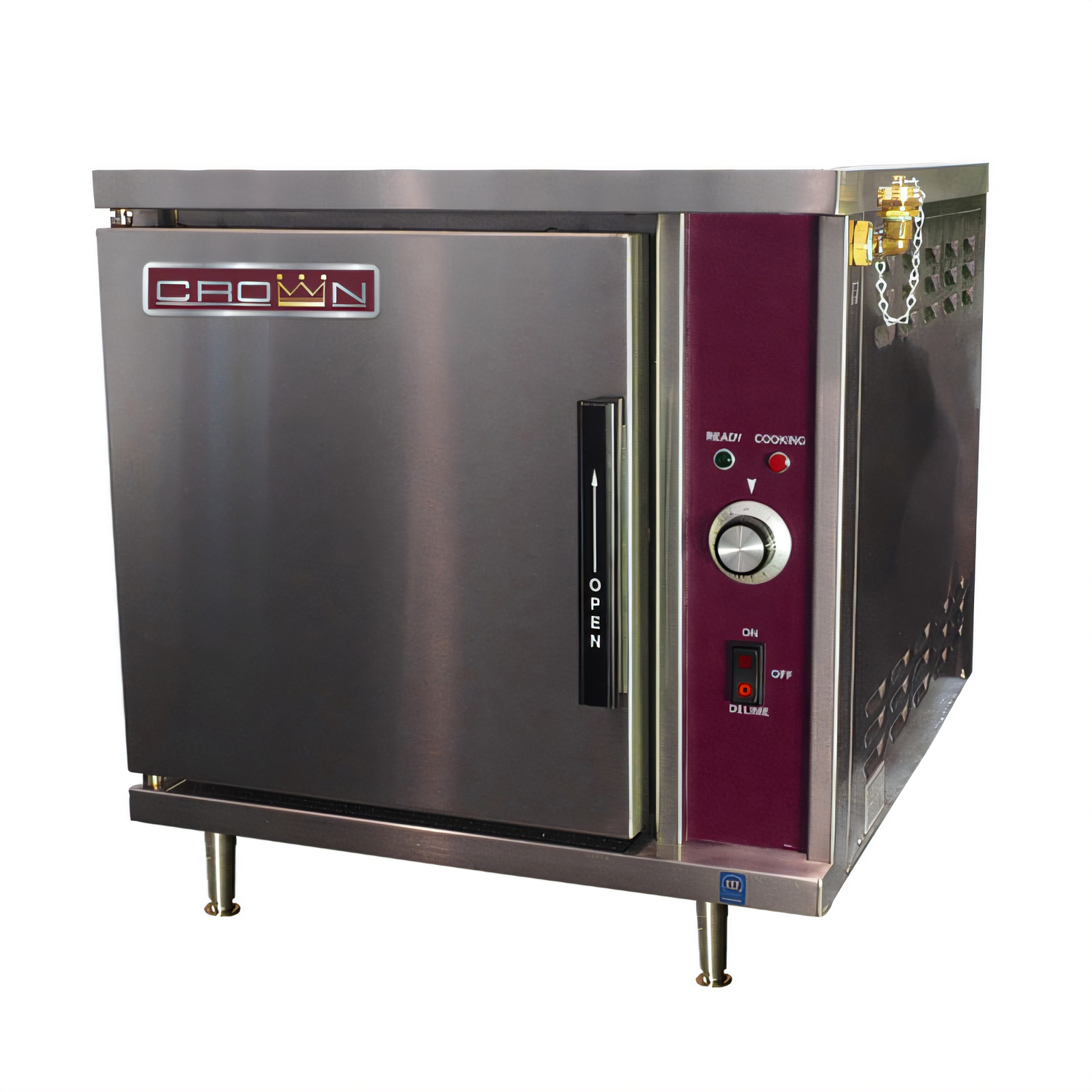

Crown SX-5 Countertop Electric Convection Steamer
5-Pan | 15 kW Steam Generator | Auto Fill & DrainBuilt for busy commercial kitchens that refuse to compromise on speed, consistency or food quality, the Crown SX-5 delivers powerful, pressure-less convection steam in a small countertop footprint. A heavy-duty 15 kW steam generator, 316 SS cooking compartment and fully automatic water management take the guesswork out of high-volume steaming—so every batch leaves the cavity hot, fresh and perfectly cooked.
Key performance features
- True convection steam at 0 psi for even, gentle cooking of seafood, vegetables, proteins & retherm items.
- Heavy-gauge 316 stainless steel compartment with coved corners cleans up fast and resists corrosion.
- 15 kW electric steam generator with field-replaceable elements; factory convertible from 3-phase to single-phase.
- Automatic fill, drain & blow-down keep scale in check and cut daily maintenance time.

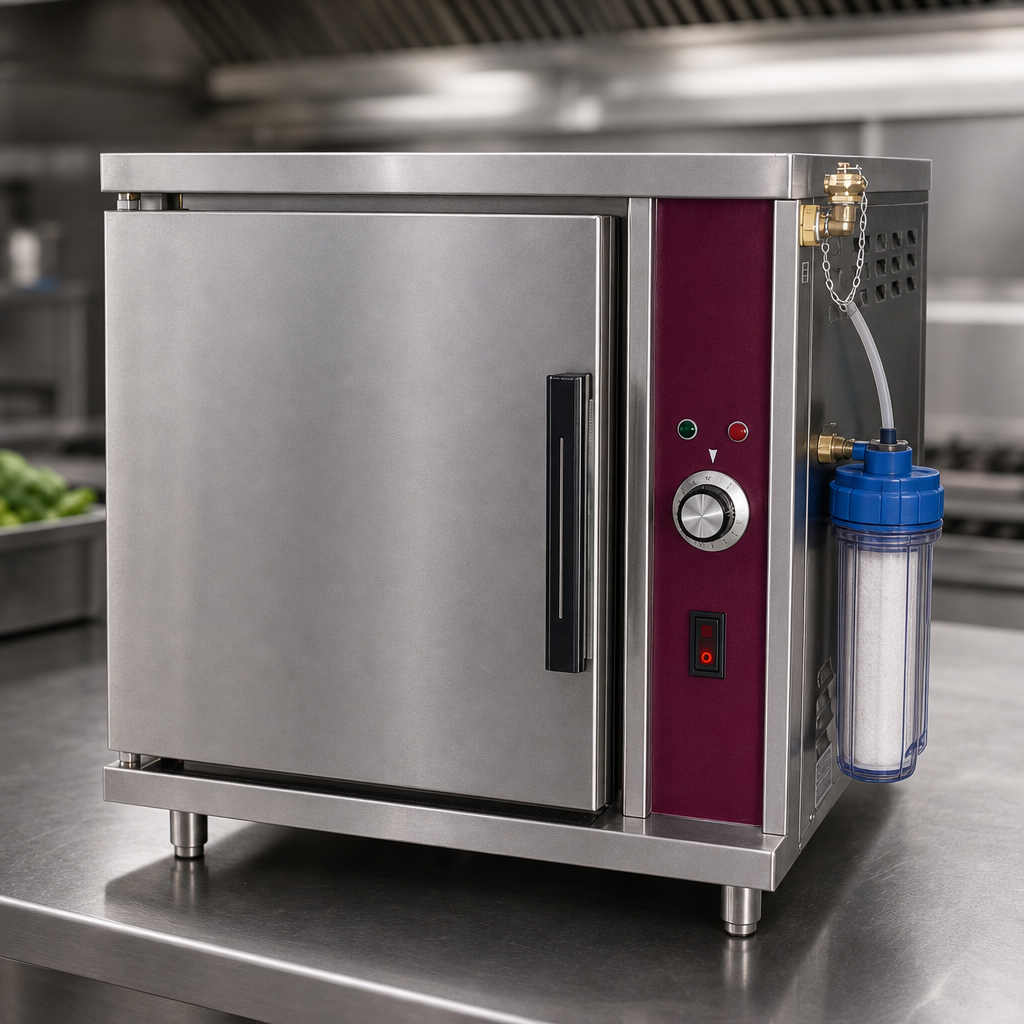

- Built-in water treatment system and split water connections—no extra kit to buy.
- Illuminated 3-way power switch (ON / OFF / De-lime) plus ready & cook indicator lights.
- 60-minute electromechanical timer with end-of-cycle buzzer.
- Removable stainless steel pan supports handle five full-size 12″ × 20″ pans (2½″ deep).
- Spring-assist door with full-perimeter gasket, positive lock and drain trough for condensate control.

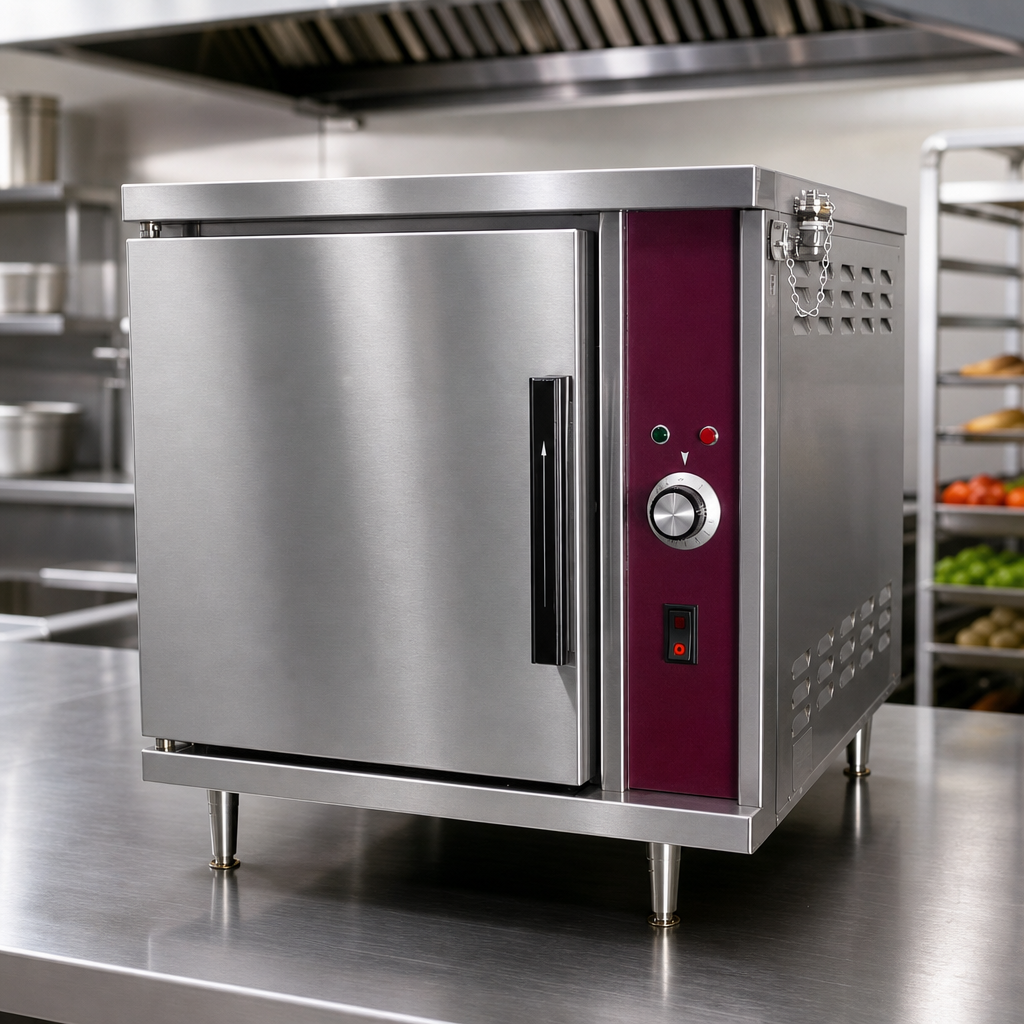

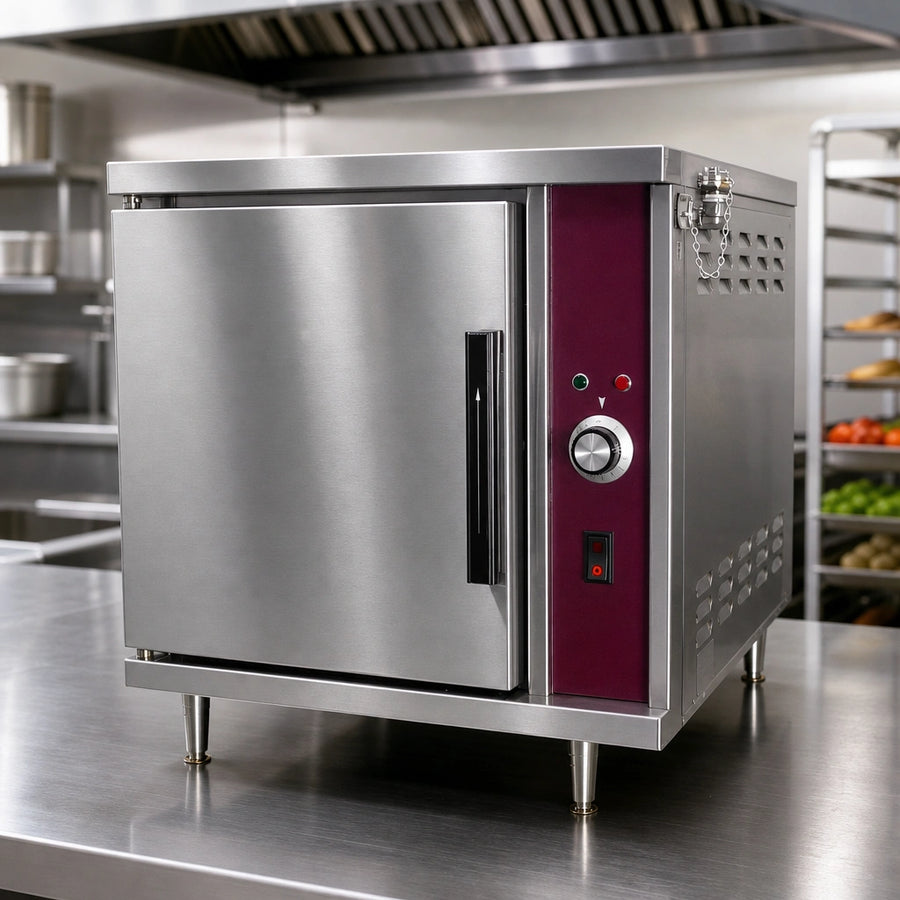

- Satin-finish 304 stainless exterior—looks great front-of-house & wipes down easily.
- Ships with adjustable leveling feet; 4″ legs or stacking/stand kits available.
- Certified cCSAus & NSF for peace of mind and easy health-code sign-off.
Capacity at a glance
| Pan depth | Capacity |
|---|---|
| 1″ (hotel/steam table) | 10 pans |
| 2½″ | 5 pans (standard full-size 12″ × 20″ pan) |
| 4″ | 3 pans |
| 6″ | 2 pans |
Utility & installation data
| Steam generator rating (standard) | 15 kW, 0 psi pressureless |
|---|---|
| Field-selectable voltages | 208, 220, 240 VAC 50/60 Hz 3-phase (convertible to 1-phase) 380/220, 415/240, 480, 600 VAC 3-phase options |
| Amperage @ 15 kW | 42 A (208 V 3 ϕ) • 36 A (240 V 3 ϕ) • 72 A (208 V 1 ϕ) |
| Cold & generator water | 3⁄8″ O.D. tubing, 25-50 psi (170-345 kPa) |
| Drain | 2″ IPS to open floor drain |
| Overall dimensions (H × W × D) | 17″ × 27.5″ × 23.5″ (432 × 698 × 597 mm) with feet |
| Shipping weight | Approx. 170 lb (77 kg) |
Optional upgrades
- 12 kW element set (lower energy draw)
- 120-minute timer or load-compensating timer
- Continuous steam feature
- Correctional package & high-sensitivity R.O. water controls
- Single & double-stack stands with 18″–34″ working heights
Water quality matters
For maximum boiler life and to maintain warranty coverage, incoming water must meet Crown’s recommendations:
• TDS < 60 ppm • Alkalinity < 20 ppm • Silica < 13 ppm • Chlorine < 1.5 ppm • pH 6.8–7.3
