Crown (Middleby) SX-5-QS Steamers (Countertop & Floor)
Description

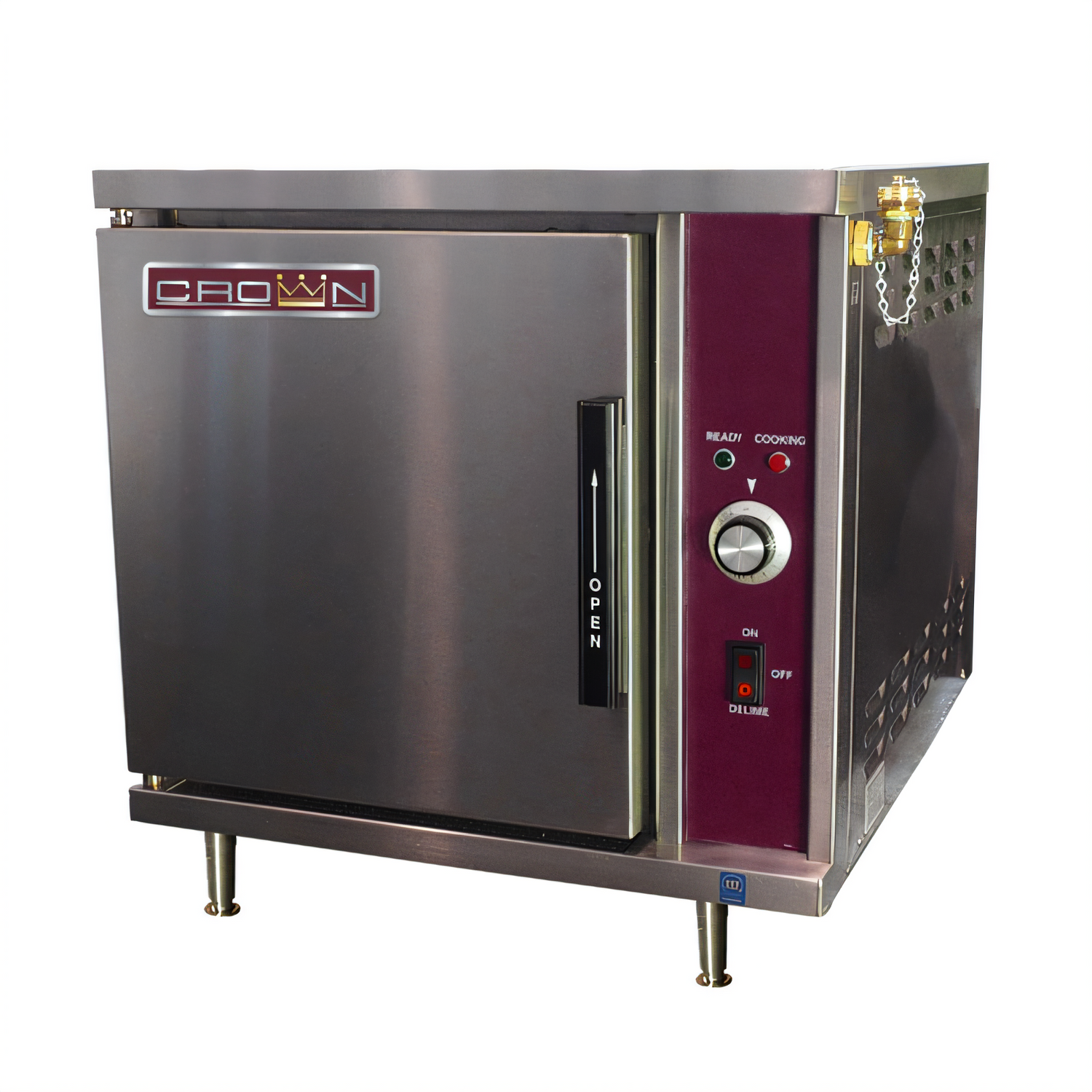

Crown SX-5 Electric Countertop Convection Steamer
5-Pan | 15 kW Steam Generator | Auto-Fill & Auto-DrainBuilt for high-volume kitchens that demand speed, consistency and durability, the Crown SX-5 delivers saturated steam to five full-size 12 × 20 inch pans from a self-contained, electrically heated generator. 316 stainless cooking surfaces and a full 304 stainless exterior stand up to years of commercial abuse while thoughtful service features—like the three-way ON / OFF / De-lime switch and automatic generator blow-down—keep downtime to a minimum.
Why You’ll Love It
- Atmospheric steam generator operates at 0 psi—no boiler license required.
- Field-replaceable heating elements rated 15 kW (standard) for rapid recovery; optional 12 kW kit available.
- Automatic fill & drain cycle plus timed blow-down purge reduces scale build-up.
- Factory-supplied water treatment system protects components and preserves warranty.
- Electromechanical 60-minute timer with end-of-cycle buzzer for simple, glove-friendly use.
- Illuminated READY & COOK indicator lights keep staff informed at a glance.
- Heavy-gauge door with full-perimeter gasket and positive lock for a secure, energy-efficient seal.
- Removable stainless steel pan supports and coved-corner chamber speed up cleaning.
- Split water connections simplify hook-up to the included filter and generator feed.
- Certified cCSAus & NSF for compliance in the U.S. and Canada.
Performance At A Glance
| Pan Capacity * | 5 × 12 × 20 × 2.5 in - deep pans (10 × 1", 5 × 2.5", 3 × 4", or 2 × 6" pans) |
|---|---|
| Chamber Material | 316 SS, coved corners |
| Exterior | 304 SS satin finish |
| Heating Power | 15 kW standard (field-convertible to 12 kW) |
| Voltage Options | 208, 220, 240 V 1 / 3 ph 380/220, 415/240, 480, 600 V 3 ph |
| Controls | 3-way power switch (ON / OFF / De-lime), 60-min timer, audible alarm, indicator lights |
| Dimensions ** | 27.5 W × 23.5 D × 18.3 H in (698 × 597 × 464 mm) – add 4 in for optional legs |
| Certifications | cCSAus, NSF |
* 12 × 20 in (GN 1/1) pans shown for reference.
** Dimensions taken without optional legs or stacking kits.
Utility Connections
| Cold Water | 3⁄8" O.D. tubing, 25-50 psi (170-345 kPa) |
|---|---|
| Generator Water | 3⁄8" O.D. tubing, 25-50 psi (170-345 kPa) |
| Drain | 2" IPS to open floor drain |
| Electrical | See data plate for amperage; field-convertible 1 / 3-phase (208-240 V) |
Total Dissolved Solids < 60 ppm | pH 6.8–7.3 | Chlorine < 1.5 ppm. The included filter system helps you stay within spec—just replace cartridges as directed.
Popular Factory Options (sold separately)
- High-sensitivity level controls for reverse-osmosis water
- Constant steam mode
- 120-minute timer upgrade
- 4" adjustable legs or countertop stand (28" / 34" heights)
- Stacking kit & interconnect plumbing for double-deck installations
Give your kitchen the speed and consistency only steam can provide—add the Crown SX-5 to your line up today.
