Crown (Middleby) SCX-24 Steamers (Countertop & Floor)
Crown (Middleby) SCX-24 Steamers (Countertop & Floor) is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

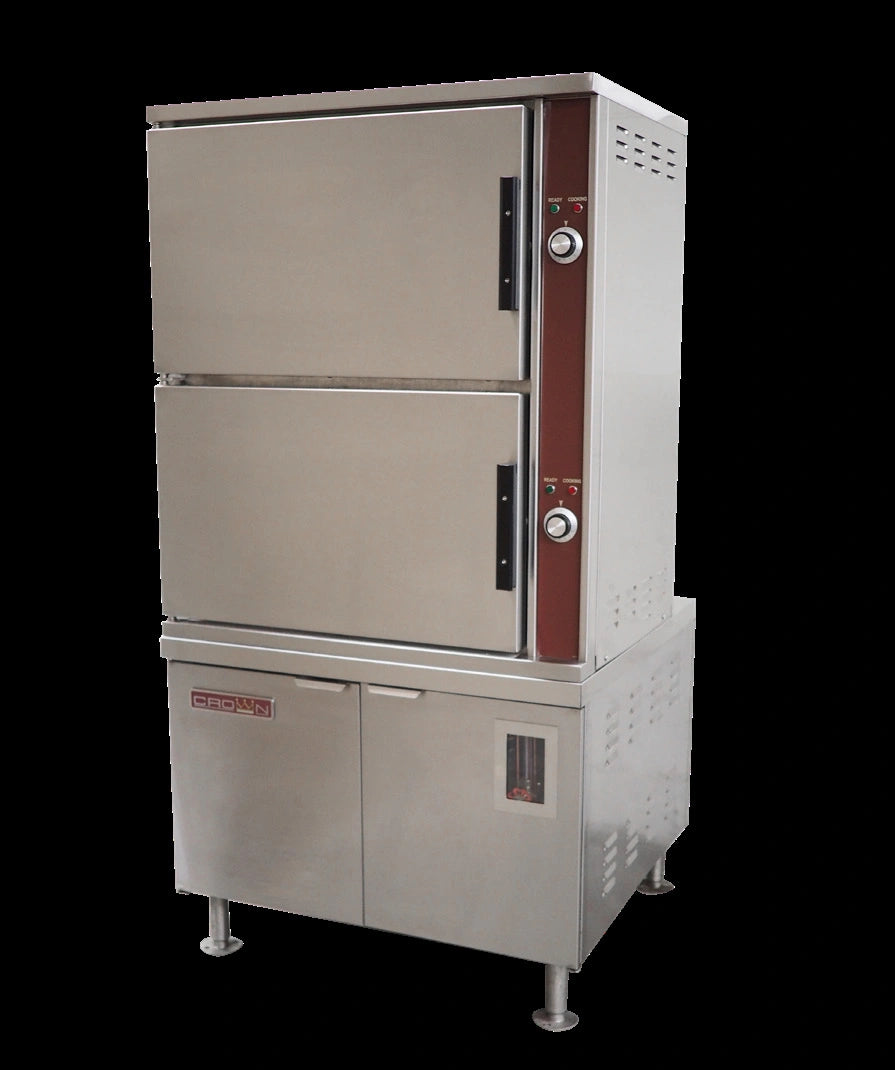

Crown SCX-24 Two-Compartment Convection Steamer
24-Pan Capacity • Steam-Coil Boiler • 36" Cabinet BaseBuilt for high-volume kitchens that demand speed, consistency and durability, the Crown SCX-24 delivers powerful steam performance in a space-saving 36 inch footprint. Two independent 12-pan compartments let you tackle multiple cooking tasks at once, while a rugged steam-coil boiler and automatic maintenance features keep you up and running shift after shift.
Key Advantages
- Huge capacity – holds 12 full-size 12" × 20" pans per compartment (24 total).
- Steam-coil heated boiler produces 9–11 psi cooking steam from an incoming 25–45 psi source (200 lb/hr flow).
- Independent 60-minute timer, ready & cook indicator lights and audible alarm for each compartment.
- Built-in water treatment system, automatic boiler blowdown and split water line reduce scale and maintenance.
- Removable 316 SS pan supports and front drip trough make cleanup quick.
- Durable type 304 stainless exterior with satin finish—easy to keep looking new.
- 6" stainless legs with adjustable flanged feet for secure floor mounting.
- Certified cCSAus & NSF for worry-free code compliance.
Engineered for the Line
- Door safety interlock stops steam flow when either door is opened.
- Full-perimeter cabinet frame, reinforced countertop and hinged access doors house the boiler and controls.
- Control housing features a removable side panel for fast service access.
- Optional accessories (sold separately): sheet-pan supports, load-compensating timers, spray & rinse assembly and more.
Technical Specifications
| Model | SCX-24 |
|---|---|
| Compartments | 2 independent convection chambers |
| Total Pan Capacity | 24 × 1" | 12 × 2.5" | 8 × 4" hotel pans |
| Boiler Type | Steam-coil heated; 200 lb/hr @ 25–45 psi supply |
| Operating Pressure | 9–11 psi (62–76 kPa) |
| Timers | 60 min mechanical per compartment |
| Electrical | 115 VAC, 1 Ph, 60 Hz – 2 A per compartment (½" conduit) |
| Water Connections | ½" NPT cold water & condensate, 25–50 psi |
| Drain | 2" IPS to open floor drain |
| Steam Take-off (optional) | ¾" connection for adjacent equipment |
| Overall Dimensions | 36" W × ≈31" D × ≈57" H |
| Shipping Weight | 850 lb (386 kg) |
| Certifications | cCSAus, NSF |
For optimal performance and to maintain warranty coverage, incoming water must meet Crown Steam Group’s quality guidelines (TDS < 60 ppm, pH 6.8–7.3, etc.). A factory water-treatment system is included; cartridges must be changed per manufacturer recommendations.
One-year parts & labor warranty (additional boiler shell coverage prorated to two years). See full limited warranty terms.
